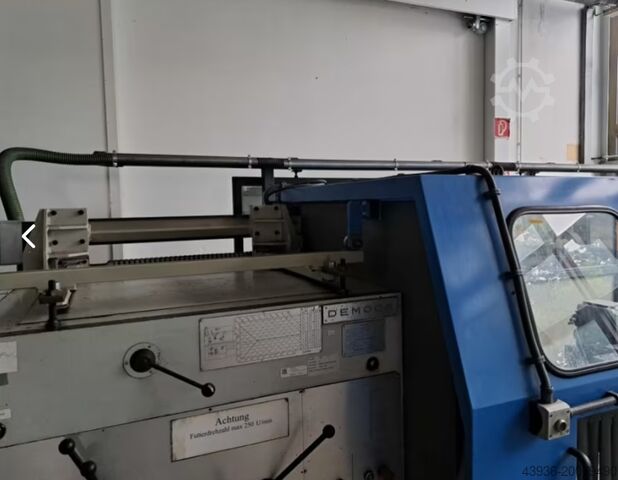

Hollow spindle lathe DEMOOR - 825-S360

Demoor 825-S360

Condition: used, Year of construction: 1980, turning diameter over bed 1930 mm turning diameter over slide rest 1520 mm turning length 5000 mm turning speeds 0,5-250 U/min spindle bore 105 mm workpiece weight 35 t steady 400-700 mm steady 700-1200 mm steady 1000-1600 mm control Siemens total power requirement 106 kW The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop Bodpfx Afjyutp Hjqjlp If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: good (used), Year of construction: 1983, Machine number: 316204/22 Type / Model: FSS 315/E Travel ranges x-y-z: 850 – 280 – 355 mm Table: 1,200 x 370 mm Clamping area: 1,060 x 260 mm Speed range: 28 to 1,400 rpm Spindle mount: SK 50 Bedofli Afjpfx Afqelp Quill stroke: 80 mm Feeds for x and y axes: 16 to 800 mm/min Feed for z axis: 5 to 250 mm/min Power: 8 kW Accessories/Equipment: Head swivels Condition: good Weight: 4 t Dimensions: 2,000 x 2,000 x 2,400 mm

Condition: good (used), Year of construction: 1979, functionality: fully functional, machine/vehicle number: 332046, travel distance X-axis: 8,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 2,200 mm, spindle speed (max.): 850 rpm, spindle speed (min.): 6 rpm, feed rate X-axis: 8 m/min, feed rate Y-axis: 6 m/min, feed rate Z-axis: 1 m/min, total width: 10,000 mm, total length: 14,000 mm, total height: 4,500 mm, spindle diameter: 160 mm, table load: 40,000 kg, table length: 3,000 mm, table width: 3,000 mm, workpiece weight (max.): 40,000 kg, overall weight: 71,000 kg, drill spindle length: 1,200 mm, year of last overhaul: 2002, power: 60 kW (81.58 HP), The machine is on stock and ready for use. A combination with 3x3 m TDV5 rotation table enables most demanding machining operations. Machine will be available for inspection under power. Bjdpfx Ajuplptsfqolp

Condition: used, Year of construction: 1972, turning diameter over bed 1440 mm turning diameter over slide rest 960 mm turning length 8200 mm faceplate 1250 mm turning diameter in the gap 1460 mm length of gap 460 mm turning speeds 1,8-400 U/min workpiece weight 22000 kg total power requirement 46 kW Machine overhauled 2004 Blsdpfx Ajyutq Rofqop The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: excellent (used), Year of construction: 1970, functionality: fully functional, I am selling this machine, it is connected and can be tested. Bjdpsxwqk Eofx Afqjlp A video of the machine can be sent via WhatsApp. Diameter over the bed: 1250 mm Diameter over the carriage: 900 mm Turning length: 6000 mm Workpiece weight between centers: 14,000 kg

Condition: excellent (used), Year of construction: 1983, - Turning diameter over bed [mm]: - 1000 Bsdpfeytnt Dsx Afqslp - Turning diameter over support [mm]: - 630 - Turning diameter in the bridge recess [mm]: - 1230 - Spindle bore [mm]: - 120 - Center distance [mm]: - 2000 - Rotation speed range [rpm]: - 5 ÷ 500 - Maximum workpiece weight in the chuck: 1300 kg - Machine weight: 10000 kg

Condition: used, Year of construction: 2008, ratio of transmission 10:1 min. number of teeth 3 max. number of teeth 200 range of tooth size 20 mm tooth width max. 58 mm spindle speeds (infinitely variable) 6000 U/min Bedpevxwmtefx Afqslp work piece spindle speed 1200 U/min diameter of tools max. 230 mm diameter of tools min 69,85 mm x-axis 325 mm y-axis 350 mm z-axis 470 mm b-axis + 90,1 / - 1 ° work piece table - Ø 212,71 mm Control SIN 840 D SIEMENS total power requirement 75 kW weight of the machine ca. 10.000 Kg dimensions of the machine ca. 6,10 x 4,40 x 3,30 m Internal probe Renishaw LP2 (axis X2;Y2) Hoffmann coolant filter system HSF 100SE/K (built in 2008) Tank capacity 2500L VT oil mist filter system

Condition: good (used), workpiece diameter between centers: 2,286 mm, The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. Bodpjrtrzdsfx Afqjlp The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees. Specifications: Centerline of Drive Spindle to Nose of Brake Spindle (90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and without face plate): 60" Max. / 10" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min. Centerline of Brake Spindle to Centerline of Drive Spindle (For Spur Gears): 56" Max. / 6" Min. Distance Between Nose of Brake Spindle and Nose of Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min. Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10" Range of Shaft Angles: 0 - 360 Degrees Maximum Diameter of Gear: 90" Diameter of Face Plate: 54" Outboard Bearing: 3" Diameter Hole Spindles: RPM of Drive Spindle Pulley Set No. 1: 100 - 400 RPM of Drive Spindle Pulley Set No. 2: 250 - 600 Diameter of Taper Hole (large end): 6" Taper Per Foot: 3/4" Depth of Taper: 8" Hole Through Spindle: 5-1/2" Net Weight of Machine: 20,000# Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#

Condition: used, Year of construction: 1970, turning diameter over bed 840 mm turning diameter over slide rest 640 mm turning length 3300 mm spindle bore 74 mm turning speeds 7,1-1400 U/min 3-jaw chuck 315 mm turning dia. in gap 920 mm length of gap 370 mm total power requirement 22 kW weight of the machine ca. 10 t dimensions of the machine ca. 8x2x1,8 m Multifix steel holder with inserts Bodpfx Ajyqvwrjfqslp The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 1992, spindle diameter 130 mm x-travel 3500 mm y-travel 2500 mm z-travel 1250 mm w-axis 800 mm b-axis 360 ° spindle turning speed range 1000 U/min transmission ratio 4 Control Heidenhain type 355 table surface area 1800x2200 mm Table load 12000 kg spindle taper ISO 50 width of T-slots 22 mm T-slot - distance 160 mm Feed 1-6000 mm/min total power requirement 80 KVA weight of the machine ca. 36 t dimensions of the machine ca. 7,7x7,2x4,9 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop Blodpfx Aeyqti Eofqep If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team
