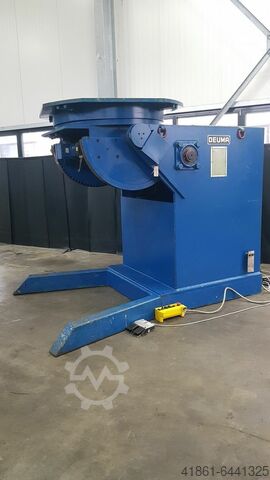

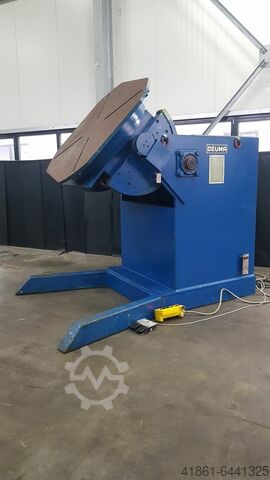

Mot. welding rotary and tilting table

DEUMA DKT 10000

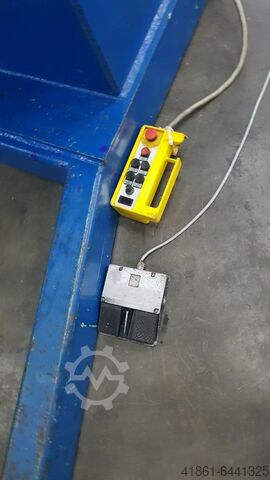

Condition: like new (used), Year of construction: 2000, Welding positioner, Heinrichsglück, 15-ton capacity Fpsdpfehcbmpex Aptei Condition: like new Complete with accessories: handheld remote control, foot pedal, manual, documentation, electrical diagrams – everything is included Dimensions: Diameter of the clamping plate: 2200 mm Height when tilted (to center): 1450 mm Height in horizontal position: 1800 mm Speed: 0.025 to 1.1 RPM Tilting range: 0 to 135° Length: 3400 mm Width: 1800 mm plus 300 mm Weight: 8000 kg

Condition: new, table diameter 2500 mm table load 20,0 t swivelling range 0 - 135 Grad turning speeds 0,04 - 0,4 U/min max. torque on the faceplate 40000 Nm table pass 200 mm welding current 1000 Ampere total power requirement 5,5 + 11,0 kW weight of the machine ca. t ELDING TABLE WITH LARGE THROUGH BORE • Self-locking gearbox, no pre- or after-run with eccentric load. • Electronic components from Siemens and Schneider. • Frequency-controlled, very accurate speed control. • Turntable with large through hole and T-slots. • High stability through a clever construction. • CE certificate. • Very good price / quality ratio. • The D-TLP series comes with remote control and foot pedal (left / right). Fpsdpfx Aofv Axmoptoi No original pictures. Design but identical.

Condition: excellent (used), 3000 Kg load capacity welding rotary table, very robust Fpodpfx Apsncfwmjtoi speed infinitely variable from 0,05 to 0,6 rpm Clamping plate square 2200mm bore 190mm, T-slot 70mm Height tilted up to center 1600mm inclination up to 135 length 2,0 m x width 1,4 m hand remote control with digital display and foot remote control

Condition: new, table diameter 2000 mm table load 10000 Kg swivelling range 0 - 130 Grad turning speeds 0,02 - 0,2 U/min height adjustment 1450 - 2200 mm max. torque on the faceplate 20000 Nm engine output 1,5 / 2,0 kW Fpsdpofv Ay Iofx Aptsi welding current 1000 Ampere - Manual height adjustment. - Self-locking gearbox, therefore hardly any pre and after-run at eccentric Load. - Electronic components from Schneider, Siemens and Delta. - Frequency-controlled, stepless speed of the turntable. - High stability due to the robust construction. - CE certificate. The D-HBE series comes as a standard version with a cable remote control and a footswitch.
