Briquetting press

Di Piu BRIK MB100

Complete production line for sale, based on a Di Più BRIK MB100 briquetting press (complete production line).

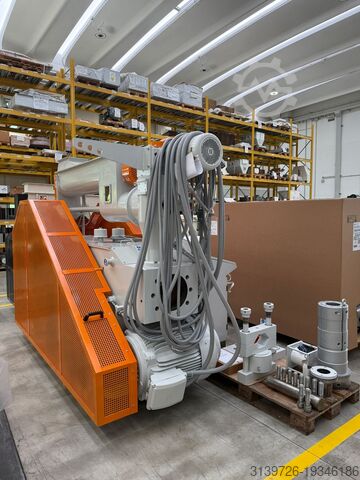

Fully refurbished DI PIU BRIK MB100 machine (factory-refurbished in 2025), ready for immediate operation. The machine is designed for high-capacity briquetting and is suitable for demanding industrial applications.

The machine has approximately 2,000 operating hours.
It has been newly refurbished at the Di Più factory: all vital components have been replaced, including all cables, electrical wiring, and required electrical equipment. The machine is brought to as-new condition and comes with a 6-month Di Più factory warranty.
The machine can produce briquettes with or without a hole, with a diameter of 90mm to 110mm, using soft or hard wood, in either round or square shapes.
Machine inspection is possible at the factory in Italy: Di Più Systems Srl, Via dell’Innovazione 11, 36042 Breganze (VI), Italy.

The Di Più BRIK MB100 mechanical briquetting press is an automatic machine for compacting wood, sawdust, and other waste materials into wooden briquettes.

The ideal humidity of the input material is between 8% and 12%, and the particle size between 1mm and 12mm.

Technical data:
- Production capacity: 1,300 – 2,300 kg/h (for sawdust density 160–200 kg/m³)
- Briquette diameter: 90 – 110 mm
- Main motor power: 75 kW
- Total installed power: 98 kW
- Piston compression pressure: 2,000 – 2,500 kg/cm²
- Vertical screw with gearbox: 5.5 kW
- Oil pump: 1.5 kW
- Oil pump for extruder head closure: 1.5 kW
- Feeder with screw and adjustable speed: 1.5 kW
- Oil system for bronze bearing lubrication: 100 liters
- Briquette output monitoring sensor (automatic shutdown when material supply runs out)
- Safety covers for moving parts
- Oil pressure sensor
- Control cabinet
- Input material storage hopper (buffer)
- Level sensor for feed system monitoring
Pgodpswrp Emefx Agqow
- Machine weight: approx. 7,800 kg

The machine is equipped with all necessary accessories for complete operation and integration into a briquetting line:
ACCESSORIES – MB100:

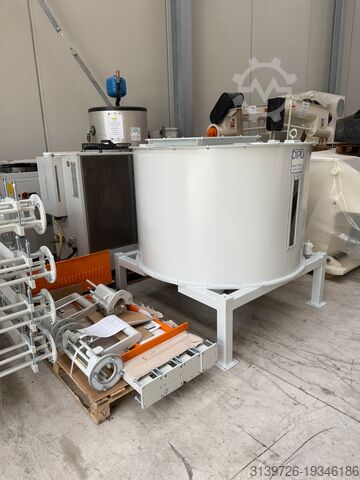

- Dosing silo: Made of heavy-duty steel. Diameter: 1,500 mm, height: 1,000 mm. Equipped with a rotary cutter with 2.2 kW gearbox, mounted on a robust steel frame. Material supply is monitored by a level sensor.
- Briquette cooling line after extrusion, total length 20 meters
- Automatic briquette cutting saw
- The saw automatically cuts briquettes to the operator's preset lengths
- Device for producing briquettes with a hole
- Machine head cooling system with ice water
- The system produces 50 liters/min of ice water for effective briquetting head cooling.

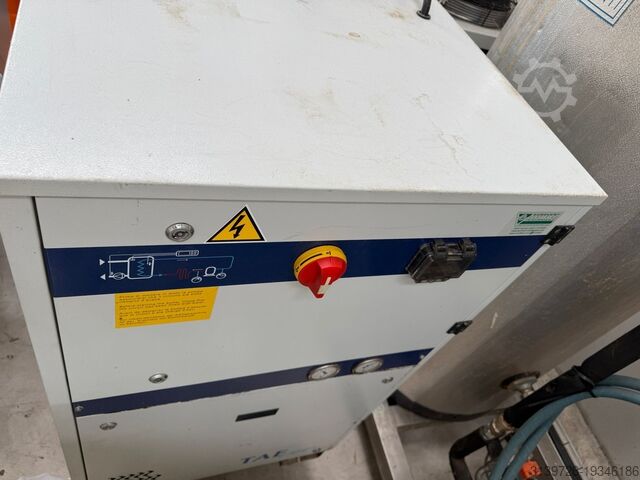

- Air-cooled water chiller with hermetic scroll compressors, microprocessor control, and a large energy storage tank with an immersed water-to-refrigerant heat exchanger.
- The heat exchanger is a high-efficiency fin-pack type, made of copper pipes and aluminum fins.
- Water tank with a capacity of 800 liters
- Water feed pump (50 l/min – 20 m.w.c. – 0.55 kW) with three-circuit DN25 valves for regulating cooling water temperature at the briquetting head
- Digital electronic temperature controller connected to an NTC sensor (measuring element d.6 × 52 mm, IP68, AISI 316)

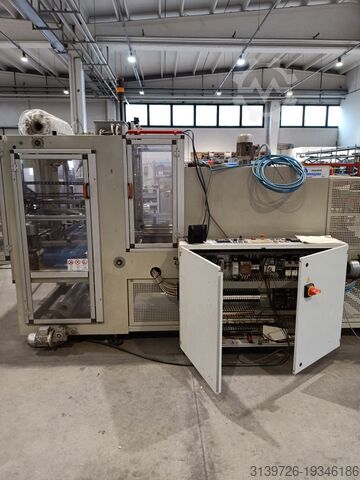

OPTIONAL: NOVAPAC packaging machine
Possibility to purchase an additional NOVAPAC packaging machine, fully compatible with the Di Più BRIK MB100 and other machines. An ideal solution for automatic packaging immediately after briquetting.

Year: 2013
Price for Novapac: €19,000
Equipment visible in the las
