CNC lathe

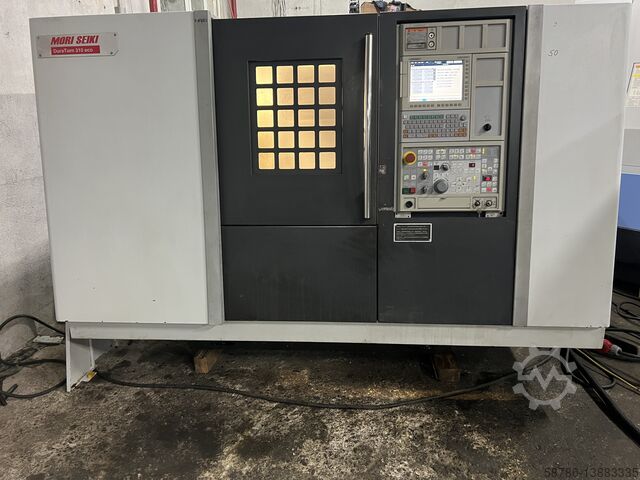

DMG MORI Seiki duracenter 310

Condition: used, Year of construction: 2007, turning diameter 42 / 140 mm turning length 170 mm control Mitsubishi Meldas turning speeds 80-8.000 U/min c-axis 0,001° turret (x-stations) 2x 12 (VDI 20) angetrieben turning speeds 45-4.500 U/min spindle 1 kW gripping station 42 mm turning speeds 60-6.000 U/min c-axis 0,001° number of controlled axis 8 collet unit 48 DIN 6343 . Number of working hours 10769 h chip conveyor ja/yes Bj. 2018 total power requirement 7,5 / 11 kW weight of the machine ca. 3,3 t dimensions of the machine ca. 2,4 x 1,6 x 2,2 m CNC turning and milling machine CITIZEN BOLEY BE 42, year 2007 Simultaneous working with 7 axes on main and pick-up spindle very good condition, operating hours 21.999h (September 2024) Accessories: # Various tool holders: 5x axiale driven tool holder # collet chuck for collets type 173E # additional coolant cooler # Knoll chip conveyor, year of construction 2018 The Boley BE 42 is without barloader. Loading magazine interface has been Gbodpfx Aaevyli Eo Ieg fitted. Complete battery exchange on 22.12.2025

Condition: used, Year of construction: 2000, Technical details: turning diameter over bed: 600 mm turning dia. over face-slide: 260 mm turning length: 610 mm facing movement (x-axis): 160 mm Gbjdpfou Ixwijx Aa Ijg longitudinal traverse (z-axis): 610 mm control: Siemens 810D revolution per minute: 1 - 6300 steples U/min max. torque on the spindle: 86 Nm spindle passage: Ø 42 mm external spindle dia. in forward position: Ø 80 mm feed motor: X/Z: 5000 / 7000 N rapid motion - x-axis: X/Z: 16 / 20 m/min tool turret - number of stations: 12 / VDI 30 tailstock taper ISO: MK4 tailstock adjustment: 500 (Hub) mm Main spindle capacity: 7,5 (100%=11kW) kW electrics - voltage/frequency: 3/PE ~ 400V und 50/60Hz V/Hz total power requirement: 20 kVA (11 kW) Weight approx.: 4,0 t dimension machine xH: 3,0 x 2,0 x 2,1 m Further technical specifications: C-axis Distance main spindle - tailstock: 805 mm Power chuck Röhm Ø 160 mm (without jaws), speed 7,500 rpm. Tailstock with live center Coolant device, coolant supply via tool turret Switch cabinet with cooling, Rittal type SK3393100 Workpiece collecting tray Machine lighting Accessories: 1x driven tool i.D. *

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, turning diameter: 140 mm, spindle speed (max.): 8,000 rpm, spindle speed (min.): 80 rpm, travel distance X-axis: 170 mm, travel distance Z-axis: 200 mm, total height: 1,730 mm, total length: 2,350 mm, total width: 1,590 mm, quill diameter: 42 mm, type of input current: three-phase, overall weight: 3,300 kg, Equipment: documentation/manual, CNC Lathe BOLEY BE-42 Godpfxew Slrno Aa Iobg TECHNICAL CHARACTERISTICS: Year of manufacturing: 2002 CNC control: MITSUBISHI Meldas 635LCC Max. turning diameter: 140 [mm] Stroke Z1 axis: 200 [mm] Stroke X1 axis: 170 [mm] Stroke Z2 axis: 395 [mm] Stroke X2 axis: 110 [mm] Stroke Z3 axis: 170 [mm] Stroke X3 axis: 110 [mm] Spindle nose: 48 DIN 6343 Spindle throughbore: 42 [mm] Min. spindle speed: 80 [rpm] Max. spindle speed: 8000 [rpm] Increment C-axis: 0.001 [°] Spindle power: 7.5 [kW] Counter spindle throughbore: 42 [mm] Min. counter spindle spindle speed: 60 [rpm] Max. counter spindle speed: 6000 [rpm] Counter spindle increment C-axis: 0.001 [°] Counter spindle power: 2.2 [kW] Type of tool holders: VDI 20 Number of tool stations - Turret 1: 12 Number of tool stations driven - Turret 1: 12 Max. speed driven tools - Turret 1: 4500 [rpm] Number of tool stations - Turret 2: 12 Number of tool stations driven - Turret 2: 12 Max. speed driven tools - Turret 2: 4500 [rpm] Lubrication tank capacity: 210 [l] Total power required: 14 [kVA] Rated current: 20 [A] Supply voltage: 400 [V] RS232 Interface: Yes Dimensions: 2350 x 1590 x 1730 [mm] Weight: 3300 [Kg] INCLUDED EQUIPMENT: x1 LNS HYDROBAR bar feeder x1 coolant tank x6 radial live tool holders VDI 20 x5 axial live tool holders VDI 20 x21 static tool holders VDI 20 x1 parts catcher basket VDI 20 x17 VDI 20 blanking plugs x28 collets x4 collet chucks x1 3-color status light x1 "Electrical diagrams" manual x1 "Operation & Maintenance" manual x1 Operator’s manual Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machines similar to Biglia, Index, Tsugami, Miyano, Star, and DMG Mori Tornos lathes, but also milling machines, grinding machines, and CNC.

Condition: good (used), Year of construction: 2008, Weiler DZ 40, year of manufacture 2008, Siemens 840 D control, travel X/Z 200/350 mm, Y axis +/- 25 mm, tailstock MK 4, main spindle max. bar capacity 42 mm, spindle bore 52 mm, rapid traverse X/Z/Q 30/30/20 m/min, 16-position turret – all stations driven, shank diameter 25 mm, driven tools up to 4,500 rpm, parts tray, accessories, driven toolholders, rigid holders. Gbodpfsxnna Sex Aa Iog
