4-axis horizontal machining center

DMG MORI DMC 80H duoBlock

Condition: new, Year of construction: 2026, functionality: fully functional, spindle speed (min.): 12,000 rpm, spindle speed (max.): 36,000 rpm, High part output | 3D CNC milling for small workpieces up to 1000 x 800 x 400 mm. > Efficient milling spindle, short throughput times and high part output: Due to the highly efficient milling spindle, the 5-axis CNC machine creates a high part output. The CNC milling machine stands for absolutely fast production processes and short throughput times. In addition, the rotary table of the CNC milling machine performs the C-axis movement, making milling even more effective. > Little space required, fast commissioning: The RT-F 1400 CNC milling machine requires little space and can be commissioned within two days. Set-up times are minimal. The CNC machine can be easily moved to another location using a forklift. > First-class contour accuracy for 3D machining with fixtures: All components, such as milling tool, spindle and the machine are matched to each other and to the desired component. A fixture from HG GRIMME SysTech can additionally influence the milling quality. Existing fixtures can be reused at any time. > Use in industry and small businesses: The CNC rotary table milling machine RT-F 1400 is particularly suitable for 3D machining of smaller components (800x1000x400mm). The CNC milling machine is used just as successfully by large industrial companies, such as the automotive industry, as it is in small businesses. > Basic version of the CNC machining center - Protective cabin with automatic gate unit, pneumatic - Swiveling, integrated control panel - High-performance CNC control NUM Flexium+ with nPad and 19'' monitor - Tool changing system with 12 places, dust-tight - Tool measurement Renishaw-TS 27 R - chip tray, vacuum pump Itedpfx Aoxdwndsd Dep > 365 further equipment options - example CFK package The machine can be equipped with many further options. One example is the upgrade of the machine equipment for CFRP machining. The CFRP package takes into account many safety aspects that are necessary for the processing of composite material. We offer around 365 additional options across our entire product range and can further equip the basic machine offered at any time. > Suitable materials for the 5-axis CNC rotary table milling machine 1400: plastics, composites such as CFRP, model making materials, aluminum. Further technical data Cube dimensions component - 1000 x 800 x 400 mm (+162 mm substructure) Travels X/Y and Z - X/Y and Z: 1,040 x 1,400 mm x 725 mm Travels of rotary axes A and C - Rotary axis C (table) ± 1,080°. - Swivel axis A, standard tool spindle with tool changing system ± 110°. Speeds - Rapid traverse linear axes X/Y/Z 40/40/30 m/min - Rapid traverse rotary axes A/C 14,000°/18,000° m/min Accuracies - Positioning accuracy ± 0.040 mm - Repeat accuracy ± 0.035 mm Machine rotary table - ø 800 mm Table load - approx. 200 kg Milling spindle - High-frequency milling spindle 9 kW (S6) - High frequency milling spindle 8 kW (S1) - speed 36.000 rpm - Tool holder HSK 40 E Machine weight - approx. 3000 kg Already included special equipment - Head suction for floating dust and chips - Interior with perforated footboards - interior lighting - Ethernet and remote maintenance - 3D spline - Connection T-Box (nPad) (subject to change without notice)

Condition: ready for operation (used), Year of construction: 2023, operating hours: 8,900 h, functionality: fully functional, Heller HF5500 including Fastems FPT 1000 Heller HF5000 5-axis machining center Control: Siemens Sinumerik SL Spindle: HSK100 Tool magazine: 100 tools Fastems FPT1000 Iedpfew I Tupsx Ad Dotp 18 pallet stations Planning software (unmanned shift)

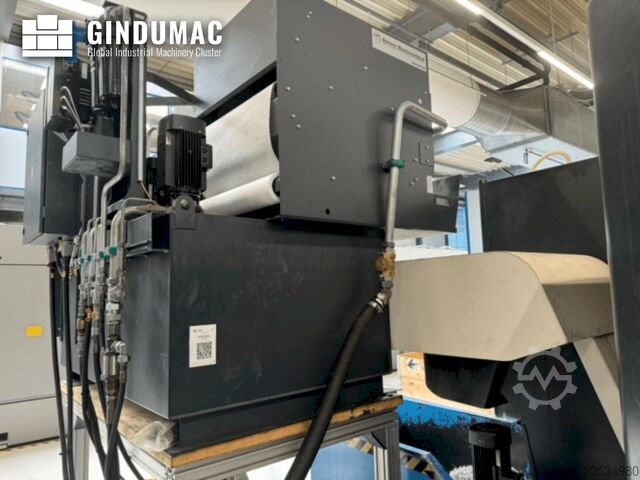

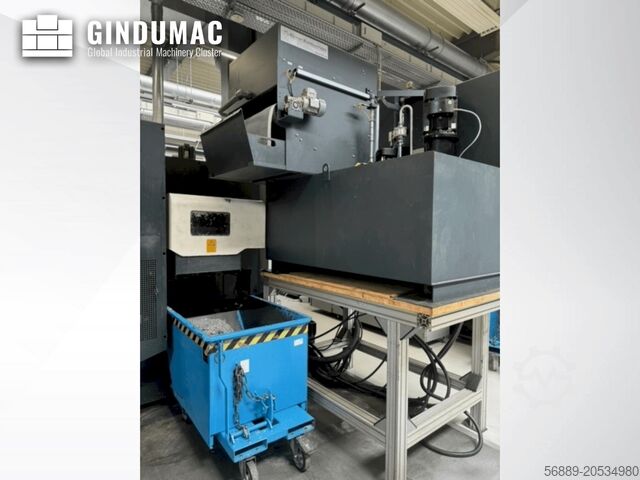

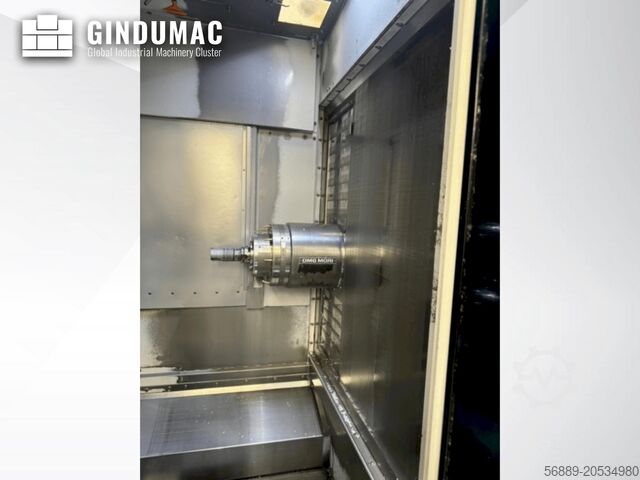

Condition: ready for operation (used), Year of construction: 2017, Control Unit Brand SIEMENS Model 840D sl Operate with CELOS® Movement X-Axis Movement 560 mm Y-Axis Movement 560 mm Z-Axis Movement 660 mm Media Chip conveyor Yes Additional Equipment Tool breakage control system in the tool magazine Two pallets with threaded holes Automatic turning APC with 2 stations Direct distance measuring system Itedpjxwz Afjfx Ad Dop Rotating viewing window in the work area door Coolant rinsing gun I/F for oil mist separator Knoll KF110/700 compact filter system Spindle sensor measuring system with optical signal transmission / Cooling unit for spindle Signal light (red, yellow, green, blue) This 4-axis DMG MORI NHX 4000 was manufactured in 2017. A robust horizontal machining center, it features a travel range of 560x560x660 mm and a clamping surface of 400x400 mm. The spindle was completely overhauled in May 2023. It has a tool magazine with 60 slots. The tool Holder is HSK 63 HSK-A63 motor spindle and the spindle speed range is 20 - 20,000 min-1. The machine includes a CELOS® control system with Siemens 840D sl Operate, enhancing usability with a multi-touch screen. For more information about this horizontal machining center, please reach out to us. Application Types Milling
