Machining center
DMG DMU 50

Year of construction

2012

Condition

Used

Location

Reiden

Show map

Machine data

Machine type:: Machining center

Manufacturer:: DMG

Model:: DMU 50

Year of construction:: 2012

Condition:: excellent (used)

Price & Location

Location:: Bodenachermatte 1, 6260 Reiden, Schweiz

Call

Details about the offer

Listing ID:: A154-35610

Reference number:: CF-1044

Update:: 06.06.2025

Description

Machine available : June 2024
CNC control : Heidenhain iTNC 530
Machine description
Accessories available.
Electronic handwheel.
Status March 2024:
- Switch-on hours: 18648 h.
- Spindle hours: 6226 h.
Cooling media / chip disposal
- Internal cooling lubricant supply (IKZ)
- Paper belt filter 40bar / 23l / min/ tank 600l
- incl. cabin roof, rotary feed-through in spindle, rotating inspection window.
- Oil and emulsion mist separator
- External coolant/blast air switchover via M function
- Flushing gun for chip flushing
- Chip conveyor Scraper belt chip conveyor
- Direct measuring systems, including
- Plane transformation, included
Travel paths
X-path 550 mm
Y-path 450 mm
Z-path 400 mm
Rapid traverse 24 m/min.
Tool holder SK 40 according to DIN 69871
Work table
Swivel rotary table with simultaneous capability
Clamping surface D 630 x 500 mm
Swivel range -5 grd to +110 grd
360° axis of rotation
Including direct measuring systems B- and C-axis and plane transformation.

Main drive
Speed range 20 - 18'000 rpm.

Tool magazine
Tool magazine 30 places SK 40
Including set-up aid for tool loading.

Motor power
Bodpsr Db I Iefx Ah Ield
Drive power (40% / 100% ED) 35 / 25 kW
Torque (40% / 100% ED) 130 / 87 Nm

Permissible table load (table center) 300 kg

Positioning uncertainty B-axis Pmax=18ws
(according to VDI/DGQ 3441)
Positioning uncertainty C-axis Pmax=18ws
(according to VDI/DGQ 3441)

Installation dimensions
L x W x H 3730 x 6285 x 2750 mm

Weight approx. 5530 kg

The listing was translated automatically. Translation errors are possible.

Documents

15435610-01.pdf

Seller

Registered since: 2009

25 listings online

Call

Send inquiry

Telephone & Fax

+41 62 54... show

+41 62 75... show

Fax:

These listings may also fit your interest.

Listing

Machining Center - Universal DMG DMU 50 Evolution

Germany

7,870 km

Machining Center - Universal
DMGDMU 50 Evolution

Call

Condition: ready for operation (used), Year of construction: 2000, Make: DMG Type of machine: DMU 50 Evolution Year of manufacture: 2000 Control system: Heidenhain iTNC 360 Machine's weight: 6000 kg Tool holder: SK 40 x-travel: 500 mm Bjdpfx Ahjxnphdo Ield y-travel: 420 mm z-travel: 380 mm Speed range: 12.000 U/min Overall dimensions: 3360 x 2550 x 2600 mm Number of tools in the magazine: 30 Pl. : x

See details

Listing

CNC Turning- and Milling Center REINECKER KOPP VSC 250 DS

Willich

7,640 km

CNC Turning- and Milling Center
REINECKER KOPPVSC 250 DS

€3,000

fixed price plus VAT

Call

Condition: good (used), Year of construction: 2001, M01.43870 frequency 50 Hz voltage 400 V 24 V Bsdpfx Aorc Ip Seh Ield connected load 48 kW rated current 63 A control Siemens 840 D turning diameter 250 mm turning length 100 mm weight of the machine ca. 7,5 t turning length external / innen 100 mm workpiece length - min. 29 mm workpiece length - max. 100 mm

See details

Listing

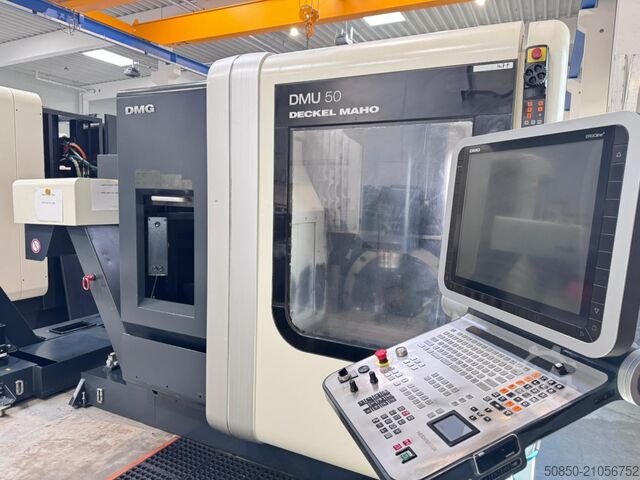

Milling machining centers - universal DMG MORI DMU 50
