5 AXIS MACHINING CENTER

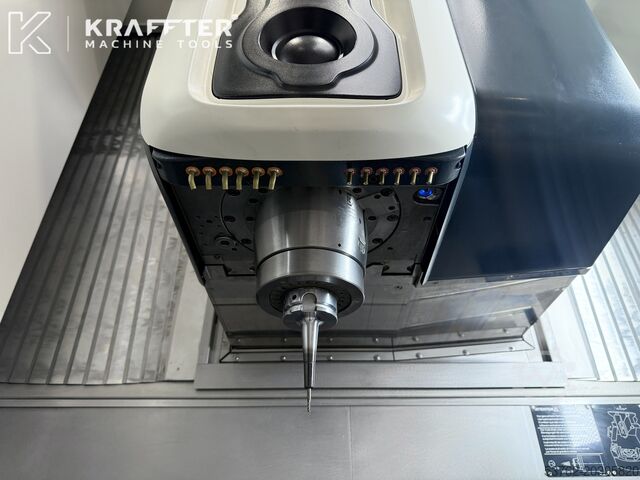

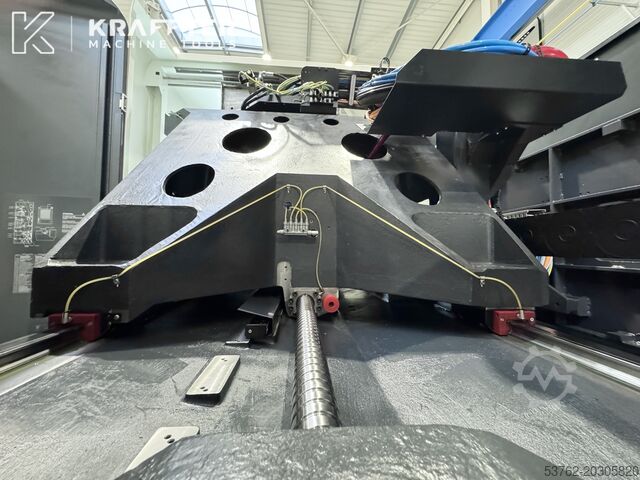

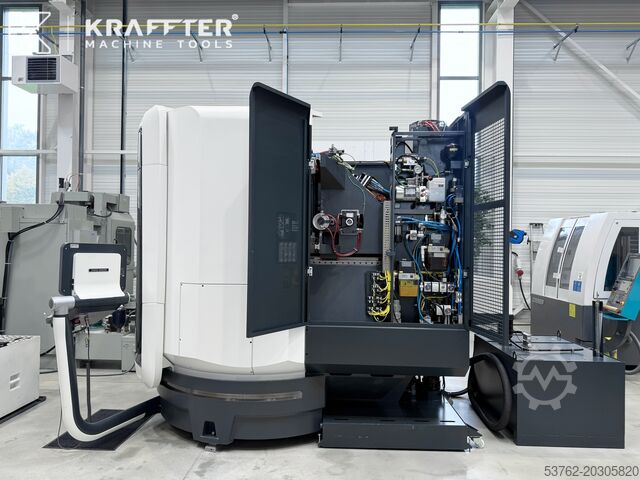

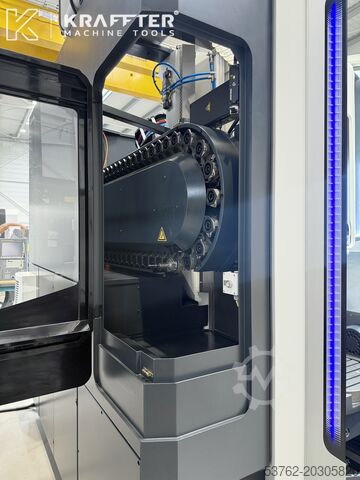

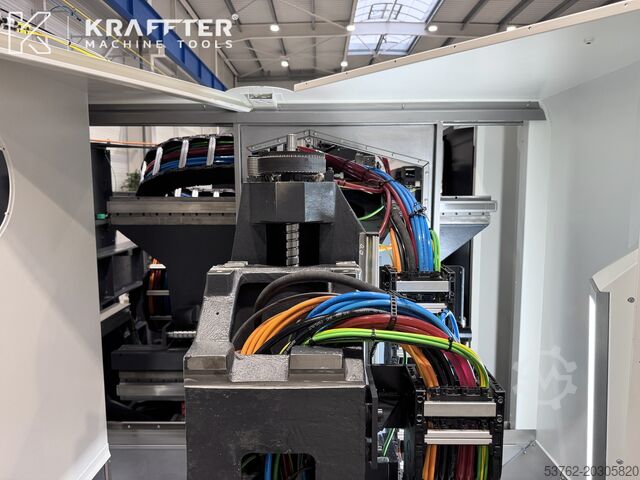

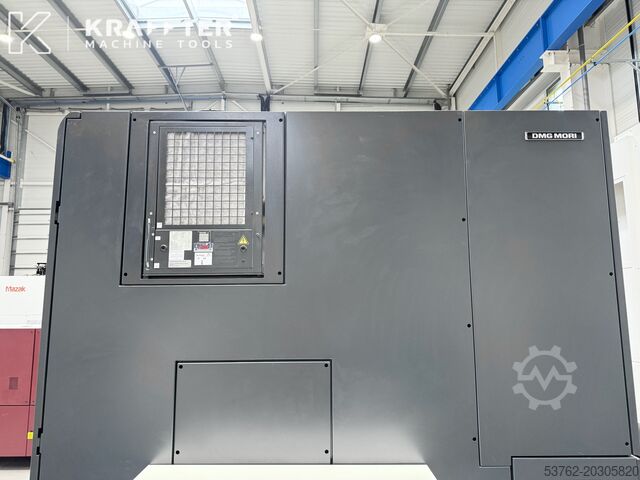

DMG DMU 65 MONOBLOCK

Condition: excellent (used), Year of construction: 2016, operating hours: 15,065 h, functionality: fully functional, travel distance X-axis: 735 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 560 mm, rapid traverse X-axis: 40,000 m/min, rapid traverse Y-axis: 40,000 m/min, rapid traverse Z-axis: 40,000 m/min, workpiece weight (max.): 600 kg, table width: 650 mm, table length: 800 mm, rotary table diameter: 650 mm, overall weight: 11,900 kg, spindle speed (max.): 24,000 rpm, tool length: 315 mm, tool diameter: 160 mm, tool weight: 8,000 g, input voltage: 400 V, type of input current: three-phase, CNC Machining centre DMG MORI DMU65 monoBLOCK TECHNICAL CHARACTERISTICS: Year of manufacturing: 2016 CNC control: SIEMENS 840D SL Number of simultaneous axes: 5 Stroke X axis: 735 [mm] Stroke Y axis: 650 [mm] Stroke Z axis: 560 [mm] Working feed X axis: 40000 [mm/min] Working feed Y axis: 40000 [mm/min] Working feed Z axis: 40000 [mm/min] Traversing feeds X, Y and Z axes: 40000 [mm/min] Axes acceleration: 6 [m/s²] X axis ball screws Ø: 40 [mm] Y axis ball screws Ø: 50 [mm] Z axis ball screws Ø: 40 [mm] Table length: 800 [mm] Table width: 650 [mm] Max. load on table: 600 [Kg] Table surface Ø: 650 [mm] Spindle type: HSK-A63 Max. spindle speed: 24000 [rpm] Tool changer magazin number of stations: 60 Max. tool length: 315 [mm] Max. weight of single tool: 8 [Kg] Max. tool diameter: 160 [mm] Supply voltage: 400 [V] Number of hours under power: 41379 [h] Number of running hours: 15065 [h] Weight: 11900 [Kg] INCLUDED EQUIPMENT: x71 HSK-A63 tool holders x1 DMG MORI PowerProbe 60 optical part probe x1 BLUM laser system for tool setting and tool breakage detection Gkodpfxoxnz R Re Abped x1 set of measuring glass scales on all linear axes with air supply x1 remote electronic handwheel x1 electrical cabinet air conditioning unit x1 MICRONFILTER KUBE 2500 mist extraction system x1 chip conveyor x1 spindle chiller Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machine similar to Mikron, Hermle, DMG Mori, Mazak, Hedelius, Axa, Chiron, Matec, Reiden, Lagun, Haas, Alzmetall, but also CNC milling, drilling and tapping machines, as well as CNC grinding machines.

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, Manufacturer DMG MORI Model DMU 75 monoBLOCK® Year 2017 CNC Control 3D HEIDENHAIN TNC 640 Table Table Surface 800 x 650 mm. NC Swivel rotary table simultaneous INCLUDED NC Swivel rotary table diameter Ø650 mm. Max Weight Allowed on Table 600 kg Turning Table (C Axis) 0.001º ( ±360º) Pitch Range (B Axis) -120 +120º Direct Measuring System INCLUDED Gkodpsvvilcsfx Abpod Max part diameter 840 mm. Max part height 500 mm. Travels and feeds Longitudinal Traverse (X Axis) 750 mm Cross Traverse (Y Axis 650 mm Vertical Traverse (Z Axis) 560 mm Rapid Feed X axis 40.000 mm/min Working Feed X axis 40.000 mm/min Main spindle Max spindle speed 20.000 r.p.m. Taper HSK-A63 Main spindle power 35kW Main spindle torque 130/86 Nm Equipment ATC INCLUDED ATC Positions 60 Internal Coolant 40 Bar INCLUDED Deposit with filter paper 500l INCLUDED Active control cabinet cooling INCLUDED Infrared Part touch probe Heidenhain INCLUDED Tool measuring Blum Laser INCLUDED Chip Conveyor INCLUDED Spray pistol with pump 2 bar 40 l/min INCLUDED 3D Quick Set INCLUDED Portable Handwheel HEIDENHAIN HR-510 Others Total power 49 kVA Programa running hours 14.486 Hours Program 11.412 Machine Weight 11.600 kg.
