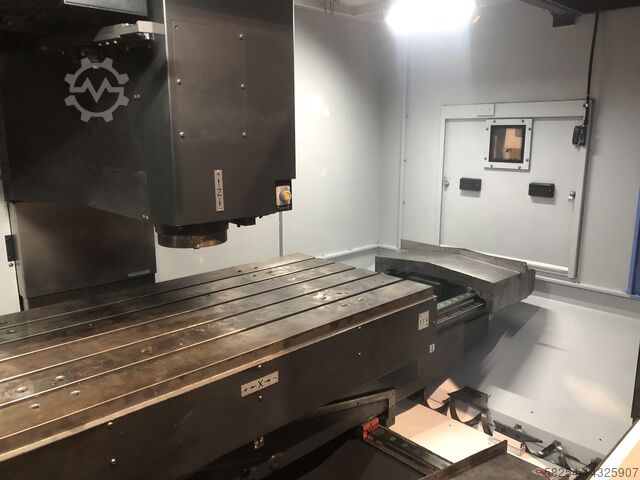

CNC machining center Doosan DNM 750 II

DOOSAN DNM 750 II

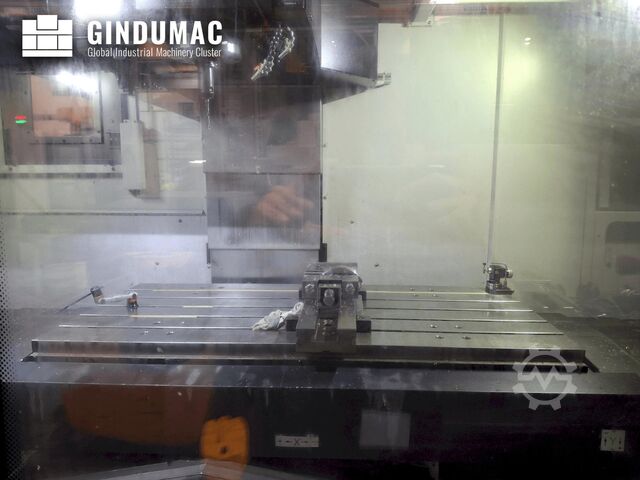

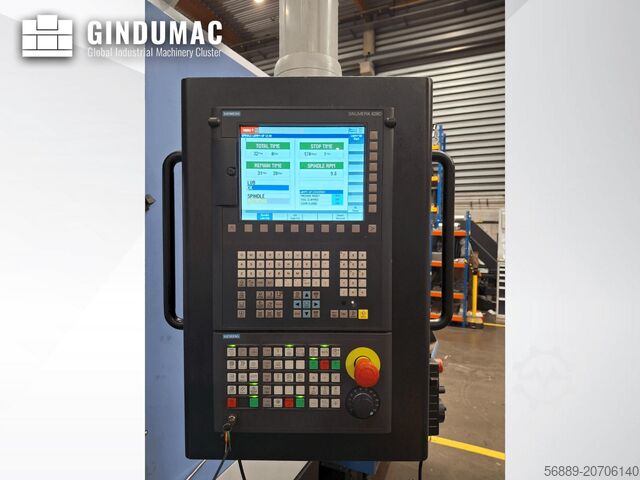

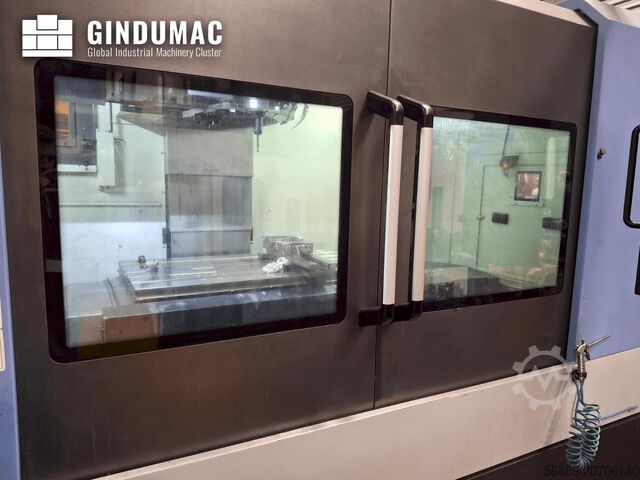

Condition: ready for operation (used), Year of construction: 2018, General Data Measurements width 3480 mm Measurements depth 3850 mm Measurements height 3170 mm Machine weight 13500 kg Control Unit Brand SIEMENS Model 828D Dodpjx D R I Rjfx Ah Secb Main Drive Spindle speed range 12000 Number of axis 3 Movement X-Axis Movement 1630mm Y-Axis Movement 762mm Z-Axis Movement 650mm Tools Type of tool holder BT40 This 3-axis DOOSAN DNM 750 II was manufactured in 2018, featuring a robust vertical machining centre design. It boasts a large X-axis movement of 1630mm, Y-axis of 762mm, and Z-axis of 650mm. Equipped with a high-speed spindle at 12,000 RPM and a BT40 toolholder, it includes an ATC with 30 positions. Consider the opportunity to buy this DOOSAN DNM 750 II vertical machining centre. Contact us for more information about this machine. Application Types Milling

Condition: good (used), Year of construction: 2001, Parts shown by hand not come. Dcsdpfx Aeuxrv Hjh Seb Technical data shown on pictures.

Condition: used, Year of construction: 2015, operating hours: 1,603 h, functionality: fully functional, machine/vehicle number: MV0062-000372, travel distance X-axis: 2,160 mm, travel distance Y-axis: 762 mm, travel distance Z-axis: 650 mm, type of input current: AC, overall weight: 15,000 kg, Equipment: USB port, Doosan DNM 750 II – CNC Machining Center – Excellent Condition – Available in 2 Weeks The machine is currently running in daily production, accumulating hours, and can be demonstrated live during inspection. It has been professionally maintained and shows no mechanical or electronic issues. Dsdex Ar Dqspfx Ah Secb Machine Condition - Fully functional, operates flawlessly - Clean and well-maintained - No vibrations, spindle issues, or alarm errors - Ready for immediate demonstration - Delivery possible in approx. 2 weeks Important Notes - Sold without accessories (no tool holders or workholding included) - All documents and technical information available on request - Ideal for machining steel, aluminum, and engineering plastics Additional Information - The machine can be inspected under power - Cutting test available on request - Loading and transport can be arranged at buyer’s cost

Condition: new, Year of construction: 2021, functionality: fully functional, Stock machine "NEW" – available at short notice! (Subject to prior sale) Control: Fanuc 0i-MF Plus, 10.4" with Manual Guide i & 2 MB NC memory LOOK-AHEAD function, 400 blocks Machine Table: Table size: 950 x 550 mm Load capacity: 800 kg T-slot width: 18 mm Number of T-slots: 3 Distance between T-slots: 150 mm Travel axes: Travel X/Y/Z: 860/550/550 mm Spindle nose to table surface: 150 – 700 mm Linear guides & speeds: Ball linear guides in X/Y axes Roller linear guide in Z axis Rapid traverse X/Y/Z: 40/40/30 m/min Feedrate during milling: 0 – 10,000 mm/min Smallest increment: 0.001 mm Tool magazine (CAM-Type) / changer: Number of magazine pockets: 30 System: random access Max. tool diameter: Ø 75 mm Max. tool diameter with adjacent pockets free: Ø150 mm (40 tools: Ø130 mm) Max. tool length: 300 mm Dsdeifn N Nopfx Ah Socb Max. tool weight: 7 kg Spindle: Spindle taper: SK-40 Drive power (30min/cont.): 18.5/11 kW 15,000 rpm direct-drive spindle Spindle oil cooler Coolant, chip, and compressed air management: Coolant system incl. 300 liter tank and pumps External coolant around spindle Chip augers right and left in machine bed Compressed air nozzle at spindle (M32/M33) Compressed air through spindle (M38/M39) Compressed air and coolant gun Other features: Swiveling operator panel Electronic handwheel (wired) Central lubrication oil/air Full enclosure Work light Heat exchanger at control cabinet Auto power-off function Hand tool set Signal lamp Transformer 400 VAC, 50 Hz CE declaration of conformity according to European directives Electrical and pneumatic requirements: Electrical connection: 36 kVA Required pneumatic input pressure: 6 bar Dimensions: Machine size: W2,260 x D2,900 x H2,775 mm Required installation area: W3,160 x D3,000 x H3,000 mm (incl. chip conveyor ejection to the left) Machine weight: approx. 5,400 kg (net) Available special equipment: Spindle: - Direct-driven spindle SK-40, 15,000 rpm - Drive power (30min/cont.): 18.5 / 15 kW, (FANUC motor) Tool magazine / changer: - Drum-type tool magazine with 30 pockets, DIN69871, SK-40 Rotary or additional axes: - Preparation for 4th axis (FANUC controls), incl. wiring and Harting connector, without axis drive Coolant, chip, and compressed air management: - Bed flushing - Through-spindle coolant pump, 20 bar pressure, for direct-driven spindles - Includes cartridge filter - Belt-type chip conveyor including chip cart (chip discharge at front, to the left side of the machine) Measuring and monitoring systems: - RENISHAW OMP-60 probe with infrared transmission system for workpiece measurement, incl. probe holder, repeatability: 1μm - RENISHAW NC4+ tool laser measurement system and tool breakage monitoring in the machine, incl. bracket - Auto-door (side door) - Pneumatic interface for workpiece clamping - Clamping devices as shown With RoboJob Mill Assist 25kg (Year of construction 2025 – NEW) - Full enclosure - Double gripper Available immediately

Condition: good (used), Year of construction: 2014, Technical data shown on photos. Djdpfxoufp Sve Ah Socb Parts shown by hand not come.
