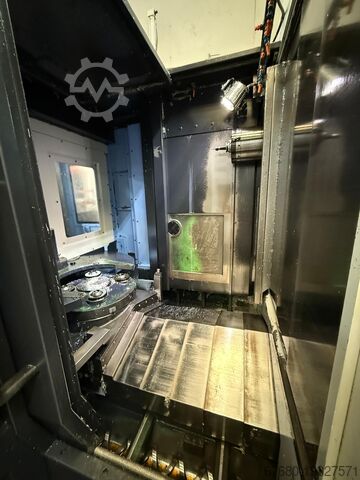

Horizontal machining center

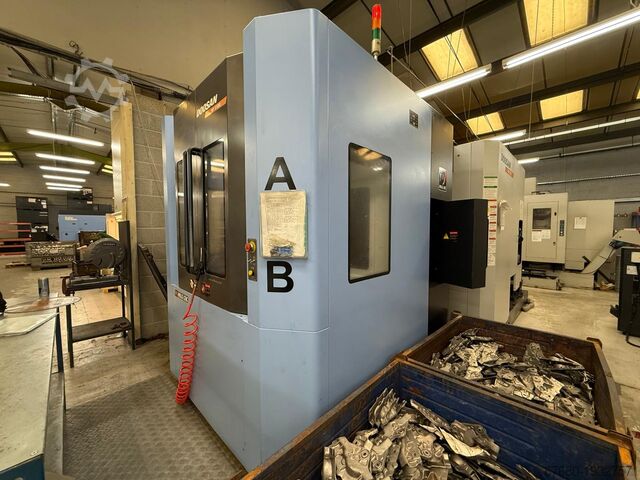

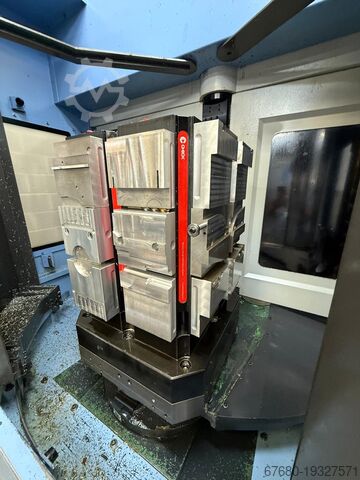

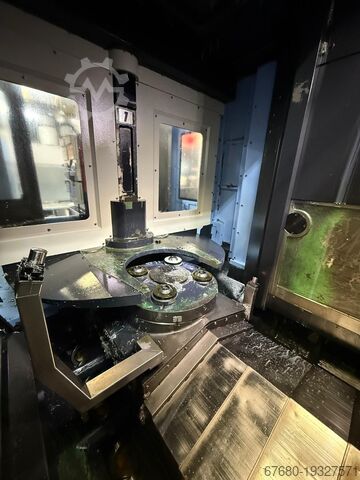

DOOSAN HP-5100

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, CNC Fanuc 18i - MB TRAVELS: X axis: mm 850 Y axis: mm 700 Z axis: mm 750 Distance from spindle center to pallet top: mm 50 - 750 Distance from spindle nose to table center: mm 150 - 900 TABLE: Pallet size: mm 500 x 500 Pallet loading capacity: kg 500 Pallet surface: 24 – M16 x P 2.0 Pallet index degree: deg 1 SPINDLE: Max spindle speed: Rpm 14.000 Spindle taper: ISO 40 Max spindle torque (25% ED): Nm 220,5 FEEDRATE: Rapid traverse rate (X, Y, Z): m/min 60 Cutting feedrate: mm/min 30.000 AUTOMATIC TOOL CHANGER: Type of tool shank: MAS403 BT40 Tool storage capacity: 120 Max tool length: mm 400 Max tool weight: kg 10 Method of tool selection: Fixed address Tool change time (tool-to-tool): sec 1 Tool change time (chip-to-chip): sec 3,5 AUTOMATIC PALLET CHANGER: Number of pallet: 7 Type: Rotary shuttle Pallet change time: sec 7,5 Pallet rotation in loading station: deg 90 MOTOR: Spindle motor (30 min): kW 18,5 / 22 Feed motor (X, Y, Z, B): kW 7,0/7,0/7,0/2,7 MACHINE SIZE: Lredjvw Uyuopfx Aaqoh Machine height: mm 3.000 Machine dimension: mm 5.600 x 2.700 Machine weight: kg 15.000 Machine equipped with: • High pressure through the spindle 35 bar • Chip conveyor • Instruction manuals and CE declaration

Condition: used, Year of construction: 2006, Technical details: x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm turning speeds: 12.000 1/min tool taper: SK 50 control: SIEMENS 840D shopmill tool change unit: 240 fach size of pallet: 630 x 630mm mm spindle: 52 kW / 430Nm total power requirement: 87 kVA weight of the machine ca.: 15 t horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, Ledpfx Aepumdcjaqjrh tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours *

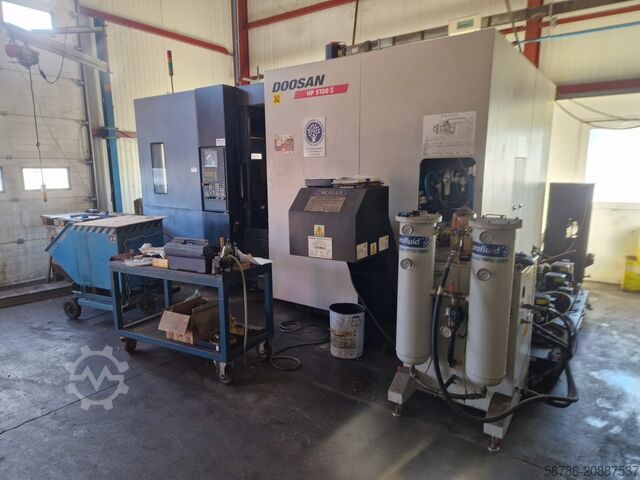

Condition: used, Year of construction: 2014, travel distance X-axis: 850 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 750 mm, Doosan HP5100II Horizontal Machining Center Year of manufacture: November 2014 Lsdpfx Aaex Sq Uvsqjrh Control: Fanuc 31i Travels: X-axis: 850 mm Y-axis: 700 mm Z-axis: 750 mm B-axis: 0.001° Automatic pallet changer Table: 500x500 mm Spindle max. 14,000 rpm Spindle taper: BT40 Tool magazine for 60 tools Renishaw workpiece measuring probe Chip conveyor Through-spindle coolant (IKZ)

Year of construction: 1980, condition: good (used), A used very well preserved cycle controlled lathe from Weisser Heilbronn with SIEMENS control. centre distance 2000 mm centre height 295 mm Swing over bed 600 mm Swing over cross slide 260 mm Swing diameter in the bend 800 mm Total length of the crank 375 mm Bed width 450 mm Plan travel X-axis 350 mm Longitudinal travel Z-axis 1850 mm Spindle nose DIN 55022 size 8 Spindle speed Number 18 14 - 1400 rpm spindle bore 71,5 mm Diameter of front bearing 110 mm feed range 0,01 - 40,95 mm/rev rapid traverse 8 m/min Direct current drive 15 kW 400V 50Hz Max. permissible torque at the spindle 2500 Nm Tailstock quill 80 mm quill stroke 250 mm inner taper quill MK 5 Length x width x height Weight of the machine 5500 kg Accessories Tailstock Pneumatic three-jaw chuck with interchangeable jaws 315mm Quick change holder "MULTIFIX "in front of the center size "C Quadruple turret behind the center Tool holder Coolant device Pneumatic steady rest Lodpfx Aaogyy I Aeqsrh Technical data and dimensions: Errors excepted. Videoconference via whatsapp possible by appointment

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 30013012, 27.10 25: Machine currently in serial production. Shutdown planned for mid-2026. Please state your offer price. Sale only within Europe, including Turkey. ----- For technical data, see handout. Lrsdeth Sc Hopfx Aaqeh Without packaging; any warranty rights are excluded. Should you wish to dismantle the system yourself, please indicate this in your bid. We do not assume any liability for the accuracy of the technical data, the completeness of accessories and tool equipment, nor for compliance with all safety and environmental protection requirements as specified in accident prevention regulations.

Condition: good (used), Year of construction: 1971, functionality: fully functional, machine/vehicle number: 12.02-37-31, grinding wheel width: 250 mm, grinding wheel diameter: 500 mm, grinding diameter: 125 mm, grinding length: 200 mm, type of input current: three-phase, overall weight: 5,000 kg, workpiece diameter (max.): 125 mm, nominal power: 28 kW (38.07 HP), The machine was used exclusively for grinding piston rods with a diameter of 10 mm. Ledpfew E D Eusx Aaqorh

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MILLING SPINDLE - Tool holder type : HSK63 - Spindle power : 22 / 26 [kW] - Spindle speeds : 100 - 10.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 800 x 600 x 800 [mm] - Rapid traverses rates (X/Y/Z) : 40 [m/min] B ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0,001 [°] - Rapid traverse rate : 13,88 [rpm] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 60 - Tool exchange time : 2,2 [sec] PALLET CHANGER - Pallet changing device type : Rotopalette - Pallet size : 630 x 500 [mm] - Pallets number : 2 - Maximum weight upon pallet : 900 [kg] - Distance table / spindle axis (min./max.) : 43 - 643 [mm] - Distance table center / spindle nose (min./max.) : 145 - 945 [mm] - Maximum workpiece diameter : 740 [mm] - Maximum workpiece height : 550 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 56 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 5.244 x 3.305 [mm] - Machine height : 3.345 [mm] - Machine weight : 10.000 [kg] MACHINE HOURS - Number of working hours : 9.095 [h] EQUIPMENT - CNC : Fanuc 0i-MD - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming : Manual guide - Electronic handwheel - Linear scales - Rigid tapping - 3 colors status lamp - Coolant tank : 700 [l] * with oil separator Lrodpfjuhb D Njx Aaqoh * with high-pressure pump : 40 [bars] * Coolant through spindle * with paper filtering unit * With washing gun * With cabin washing - Parts hydraulic clamping : prepared - Hydraulic counter balance : upon Y axis - Chips conveyor - Spindle cooling unit - Tool-holders : 35

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 30013011, 27.10 25: The machine is running in series production. Shutdown planned for mid-2026. Used grinding machine, model year 2008, for plunge grinding, including base tray and part loading via gantry loader (Theilinger Automation). There are two used machines available for sale. ----- Please provide your offer price and desired quantity. Sale only within Europe (EU), including Turkey, the United Kingdom, and Switzerland. ----- Technical specifications can be found in the handout. Without packaging; all warranty rights are excluded. If you wish to dismantle the equipment yourself, please indicate this in your bid. Lsdpfx Asth Rzaoaqjrh We do not guarantee the accuracy of the technical data, the completeness of accessories and tooling, or compliance with all safety and environmental protection requirements stipulated in the accident prevention regulations.

Condition: good (used), functionality: fully functional, Centerless Grinder BB10 ground diameter: 3 - 100 mm Lsdpfexw Iqvex Aaqorh grinding wheel dimensions (diameter x width): 500 x 200 mm feed wheel dimensions (diameter x width): 300 x 200 mm through-feed grinding without feed (maximum length): 320 mm plunge grinding (maximum length): 195 mm

Condition: used, Year of construction: 1993, Technical details: rotary table diameter: 2x700 mm grinding height: 200 mm grinding head - power requirement: 15 kW max. dia. of grinding wheel: 400 mm grinding spindle speed: 1400-2800 stufenlos /continous U/min automatic feeds: 0,001-0,02 weight of tools max.: 650 kg table speed: 5-10 m/min rotary table revolutions per minute : 5-10 stufenlos U/min rotary table: Querbewg. 0,2...10 m/min Lrsdpfx Asu Ngp Neaqsh total power requirement: 49 kW weight of the machine ca.: ca. 12,0 t dimension machine xH: 6,0x3,0x2,8 m dimensions electric cabinet LxWxH: 2,0x0,55x2,2 m ROTARY TABLE SURFACE GRINDING MACHINE - 2 magnetic rotary tables each Ø=700mm - diamond roller dressing device - without coolant unit i.D. *
