CNC turning and milling center

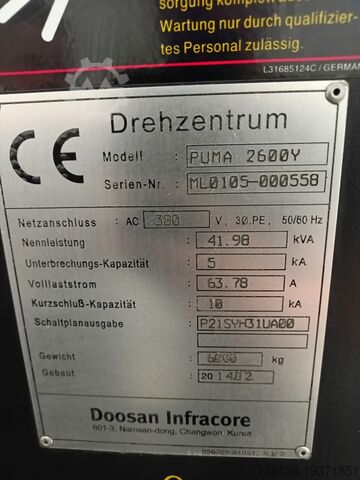

DOOSAN PUMA 2600Y

Condition: good (used), Year of construction: 2016, spindle speed (max.): 3,500 rpm, overall weight: 6,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, Main parameters: Ljdpfx Aewtg Inemveag Controller: FANUC 0iD/31iA Chuck.: SAMCHULLY 10" Spindle bore: 86mm With jacket tube.:78mm Turret head: 12 main positions 12 secondary positions, BMT65 connection, Programmable hydraulic tailstock: MT5 Main spindle power: 22kW S1max=3500 1/min Living tool power: 5.5kw S2max=5000 1/min X movement range: 260mm Z axis movement range: 830mm Y axis movement range: + - 52mm (104mm) C axis Maximum turning length: L=760 Largest turning diameter: D=376mm Fast travel speed: 30m/min Automatic tool measurement with probe arm Weight: 6000 kg

Condition: new, Year of construction: 2016, 1 unit of a completely overhauled, unused industrial bevel-helical gearbox from ASUG. TGL 21815. All gearbox parts have been replaced, with the exception of the housing!!! Clutch: 800 mm (only one half available) Maximum torque: 27,829 Nm Laedpfx Amogwlrdovog Gear ratio: i = 1:80 Maximum power: 51 kW Oil capacity: 170 kg Speed: n1 = 1400 Speed: n2 = 17.5 Weight: 1450 kg Shaft diameter d1: 65 mm Shaft diameter d2: 160 mm Shaft height h1: 500 mm Overall height h2: 925 mm Length of base: 1170 mm !! The gearbox does not have an oil cooler !!

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, CNC Fanuc Series Max. turning diameter on the machine bed: 780 mm Max. turning diameter on the carriage: 630 mm Max. turning diameter: 406 mm Max. turning length: 520 mm Bar passage: 65 mm Spindle nose: ASA A2-6 Spindle bore: 52 mm Spindle speed: 5000 rpm Spindle motor power: 18.5 kW Tailstock bore: 45 mm Tailstock nose: ASA A2-5 Bellegrandi tool holders on the spindle and tailstock + 2 self-centering chucks X-axis travel: 260 mm Z-axis travel: 590 mm Y-axis travel: +102 - 51 mm Lsdpfxeyiu Dne Amvoag B-axis travel: 590 mm Rapid traverse rate for X/Z/B axes: 30 m/min Rapid traverse rate for Y-axis: 10 m/min Turret type: BMT Number of turret stations: 12 Rotation speed of powered tools: 5000 rpm Dimensions: 3530x1863 mm, H=2163 mm Weight: 5900 kg No. 10 tool holders for powered tools.

Condition: good (used), Year of construction: 2009, max. wheel diameter 1200 mm gear width 260 mm max. module 16 min. module 0,5 stroke 270 mm distance between table/spindle 920 mm taper of shaper cutter SK control Bosch MTX table diameter 900 mm min. workpiece diameter-at internal hobbing 1200 mm strokes - infinitely variable 50-1000 Hub/min spindle diameter 125 mm table hole 320 mm Distance of shafts Min/Max 0-820 power capacity Stosskopf 30 KW total power requirement 72 KVA weight of the machine ca. 24 t dimensions of the machine ca. 6,5x2,9x4 m Liebherr LH 90 control, 9 axis CNC, top condition. Ljdpfx Amowzmpzjveag

Condition: excellent (used), Year of construction: 2021, operating hours: 3,000 h, travel distance X-axis: 6,100 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 950 mm, CNC Travelling Column Milling Machine – Fully Retrofitted by REM (2021) Powerful and versatile heavy-duty milling machine, completely modernized by REM specialists in 2021 with state-of-the-art Heidenhain TNC 320 control. Ready for immediate production use. KEY SPECIFICATIONS: • X-axis (transversal travel): 6,000 mm • Y-axis (vertical head travel): 2,000 mm • Z-axis (axial slide travel): 950 mm • Dual-spindle head | Head rotation: 360° • Spindle speed: 1,000 – 4,000 rpm • Spindle taper: ISO 50 (automatic locking/unlocking) • Head dimensions: 290 × 290 mm • Spindle motor power: 15 kW (DC) • Machine weight: approx. 32 tonnes • CNC Control: Heidenhain TNC 320 WHY BUY FROM REM? Lasdsn D N H Tepfx Amvsg ✔ Machine fully inspected and tested in working conditions ✔ Modern CNC retrofit – new electrics, new drives ✔ Documentation and technical support available ✔ Export worldwide | Competitive shipping Ideal for heavy component machining in aerospace, energy, and heavy industry. Contact us today for full technical specifications, photos, and video demonstration.

Condition: used, Year of construction: 1998, Technical details: max. module: 7 weight of the machine ca.: 5 t worm grinding diameter: 280-350 mm width of grinding worm: 84-104 mm min. number of teeth: 6 max. number of teeth: 600 max. top circle diameter: 360 mm max. workpiece weight: 60 kg with Turbo Separator, loading unit, latest-generation balancing and dressing unit and various accessories Ljdpjzgw I Nsfx Amvsag *

Condition: new, functionality: fully functional, Year of construction: 2025, laser power: 6,000 W, travel distance X-axis: 3,030 mm, travel distance Y-axis: 1,520 mm, travel distance Z-axis: 310 mm, total length: 9,500 mm, total width: 4,500 mm, total height: 2,050 mm, Equipment: CE marking, centralized greasing system, cooling unit, dust extraction, emergency stop, fume extraction, nozzle changer, safety light barrier, VS-3015CE 6KW FIber Laser Sheet Cutting Machine Working area (mm) : 3000×1500 X axis travel distance (mm): 1520 Y axis travel distance (mm): 3030 Z axis travel distance (mm)： 310 X/Y axis positioning accuracy ： ≤0.03mm\m X/Y axis repeat positioning accuracy： ≤±0.02mm Max. synthetic positioning speed: 150m\min Max. acceleration: 2G Ljdpfx Aov Ngrasmvsag Double-sided control panel, adaptive multi-angle placement, simple disassembly, and can fit into a standard 40HQ container. Industrial-grade special air conditioner, constant temperature and humidity for stable performance. Automatic grease and oil injection system, intelligent air pressure monitoring device, and anti-collision detection device provide intelligent protection.

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: Laodpfx Amjw Rrb Hjvsg - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation

Condition: excellent (used), Year of construction: 1983, Faceplate diameter: 1250 mm Max. swing diameter: 1400 mm Max. swing height: 1160 mm Max. ram stroke, vertical / horizontal: 755 / 840 mm Table load capacity: unlimited Faceplate speed range: 5.6 - 300 rpm Vertical slide angular adjustment: 45° Feed rate range: 0.044-8 mm/rev Rapid traverse rate: 2 m/min Drive power: 55 kW Footprint L x W x H: 2660 x 2710 x 3360 mm Total weight: 16,500 kg Accessories / Special features: • 2-axis digital display, manufacturer: ACU-Rite • Faceplate, Ø 1250 mm, with 4 chuck jaws • 5-position turret • Taper turning • Profile turning Lajdpfxjy Ex Epj Amvsg Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany

Condition: good (used), Manufacturer: WMW Zeulenroda Type: PYE 160 SS Year of manufacture: 1980 C-frame construction Die height 850 mm Ledpfx Amjwp Nv Hsveag Thickness bolster plate 100 mm Throat C side 360 mm Specifications Metric US Standard Capacity 160,000 Table length 1,250 mm Table width 600 mm Ram stroke 500 mm Starting speed 100 mm/min Working speed 10 mm/min Return speed 125 mm/min Power 22.5 kW Dimensions (Estimate) Length: 2,150 mm Width: 1,250 mm Height: 3,600 mm Weight: 7,500 kg Please note: The information on this page has been provided to the best of our knowledge and, where possible, from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not represent a warranty or contract terms. We recommend you check all important details.
