Diecasting machine

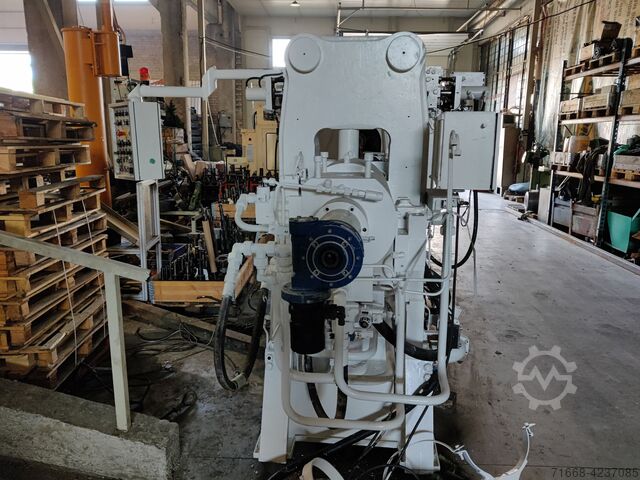

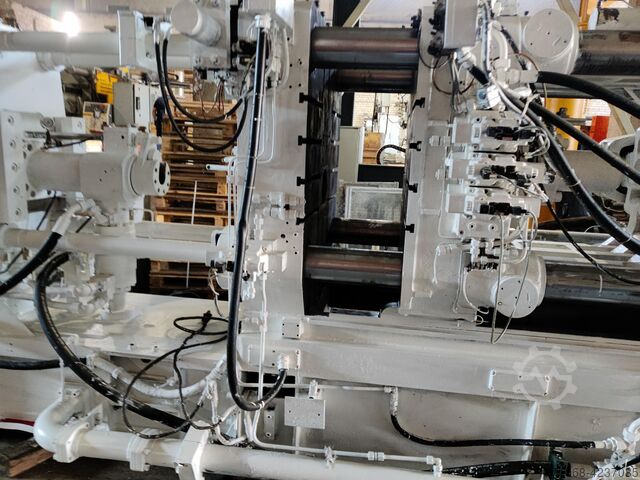

Druckguss Service Deutchland DSD H-700 P

Condition: ready for operation (used), Year of construction: 1989, An aluminum die casting system is available. Clamping force: 2200kN, opening force: 71kN, max. opening stroke: 430mm, mold closure: double toggle lever, pressure chamber: cold chamber, position: horizontal. Filling piston diameter min./max.: 40mm/70mm, pressure chamber filling volume min./max.: 293cm³/898cm³, casting pressure: 1990bar, blast area min./max.: 110cm²/338cm², output: 780 cycles/h. Clamping plate dimensions X/Y: 755mm/755mm, column spacing: 500mm/500mm, mold height min./max.: 250mm/600mm, min. mold dimensions X/Y: 296mm/296mm. Including crucible furnace, blow-out device, automatic dosing unit and 4x control cabinets. Documentation available. Bcsdpfoucfwpsx Afcsw

Condition: excellent (used), Year of construction: 1998, Angel ES 330/80 HLS Closing 80 tons Year 1998 Scrow 35 mm Stroke volume 154 cm3 Enlarged clamping plate Bcsdpepdr Aijfx Afcsw 660x560 Mould height min 200 mm

Condition: ready for operation (used), Year of construction: 2006, A cold chamber die casting machine Urpemak for aluminium is available. Clamping force: 50t, platen width: 500mm, tie bar spacing: 500mm, shot weight: 50cm³, ejector force: 6400kg, connected load: 11kW, weight: approx. 4900kg. An on-site inspection is possible. Bcjdpfxew R Dgzo Afcjw

Condition: used, Year of construction: 1997, functionality: fully functional, clearance between the columns: 579 mm, casting force: 350 N, stroke length: 420 mm, column diameter: 125 mm, overall weight: 12,000 kg, power: 22 kW (29.91 HP), Locking Force: 350 metric tons Tie Bar Diameter: 125 mm Clearance Between Tie Bars: 579 x 579 mm Die Thickness (Minimum - Maximum): 300 - 700 mm Die Stroke: 420 mm Moving Platen Size: 940 x 940 mm Injection Position: -125 mm Power Requirement: 22 kW Bcedpfsv D Dwpsx Afcjw Machine Weight: 11,974 kg (26,400 pounds) Sold with trimming press and manipulator.
