Vacuum lifter with crane for glass

DS System

The offer concerns the following set: (option to customize device parameters or purchase the vacuum lifter or crane separately)

- GLASS SYSTEM DS 300 vacuum lifter for glass
- Stationary jib crane
- Electric chain hoist
- Manual push trolley

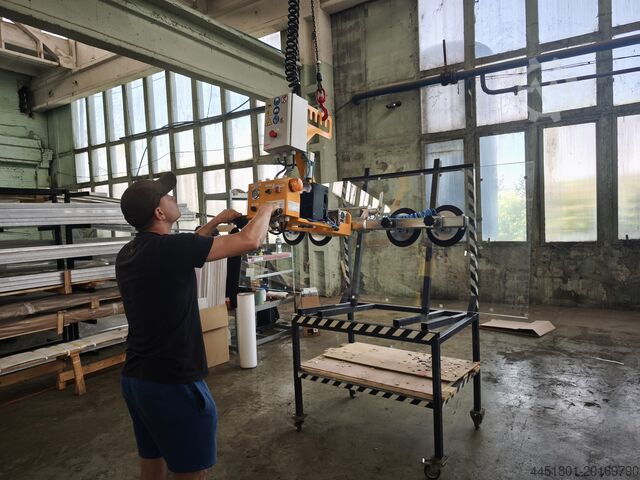

Features of the GLASS SYSTEM DS 300 vacuum lifter:
- Designed for handling glass in vertical-horizontal positions
- 4 suction pads ∅250 mm
- Each suction pad equipped with a ball valve
- Individual adjustment of each suction pad
- Suction pads arranged in a single line for narrow glass panes
- Gripper operated from the control console:
• Power on/off
• Vacuum activation/release
• Manual tilt: horizontal to vertical and vice versa
• 360° rotation – electric
• Pressure gauge
• Adjustment of suction pads along X and Y axes
- Power supply: 230V AC
- Rack suspension for center of gravity adjustment
Dedpfx Agsxivb Tomjul
- Safe working load: 180 kg
- Device weight: 100 kg

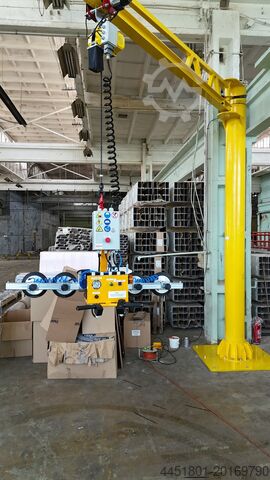

Stationary Jib Crane:
Technical data:
• Column height: 4.5 m
• Under-beam height: 4 m
• Boom length: 6 m
• Capacity: 250 kg
• Slewing range: 270 degrees
• Lifting speed: approx. 4 m/min
• Any RAL color available
• Manual slewing of the crane
• Electric push trolley
• Quadruple/double needle bearing-supported boom for effortless rotation
• Electric chain hoist
• CE Certification
• Base plate – 1200x1200 mm

INCLUDED IN THE PRICE:
• Column jib crane
• Electric hoist (1 phase)
• Electric push trolley
• CE certificate
• Complete documentation (simplified UDT)

Standard 12-month warranty
