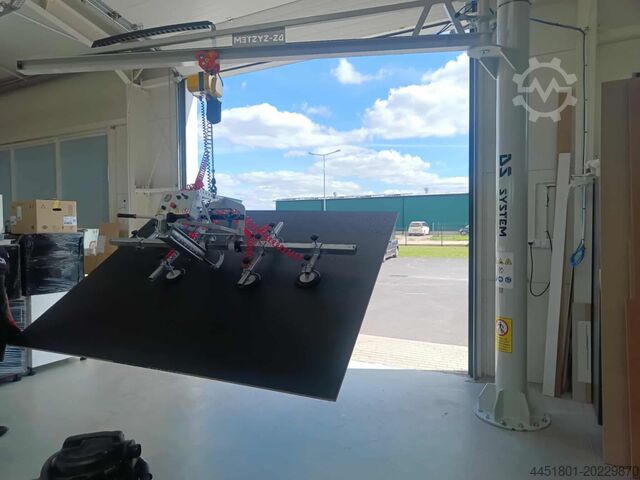

Vacuum lifter for plates + crane

DS System sc250

The offer concerns the following set: (possibility to adjust device parameters or to purchase the vacuum lifter or jib crane separately)

- Vacuum lifter for boards, suitable for handling MDF, laminated boards, raw boards, particle boards, etc. (model WOOD SYSTEM DS 250)
- Stationary jib crane
- Electric chain hoist
- Manual trolley

Features of the WOOD SYSTEM DS 250 vacuum lifter:
- Designed for handling boards
- Actuator for rotation between vertical and horizontal positions
- 6 suction cups Ø 200 mm
- Frame allows for adjustment of suction cup positioning to match the material being handled
- Beam length: 2500 mm
- Each suction cup is equipped with a ball valve for individual deactivation
- Integrated air pulse function to prevent material adhesion
- Individual X and Y axis adjustment for each suction cup
- Control from the operating console (control panel):
- Power on/off for the generator
- Vacuum engagement/release
- Thumb-operated control of the electric hoist – raising/lowering the lifter
- Pressure gauge
- Pneumatic supply – equipped with vacuum generators
- Lifting capacity: 400 kg
- Device weight: 100 kg
- CE certificate

Stationary jib crane
Technical data:
• Column height: 4 m
• Height under the jib: 3 m
• Jib length: 4 m
• Lifting capacity: 400 kg
Hedpfx Ahexln Drjusfb
• Slewing range: 270 degrees
• Lifting speed: approx. 3 m/min
• Colour: any RAL palette colour on request
• Manual slewing
• Manual trolley
• Quadruple/double needle bearing on the jib arm for smooth rotation
• Electric chain hoist
• CE certificate

INCLUDED IN THE PRICE:
• Pillar jib crane
• Electric hoist – single phase
• Manual trolley
• CE certification
• Complete documentation

Standard warranty: 12 months
