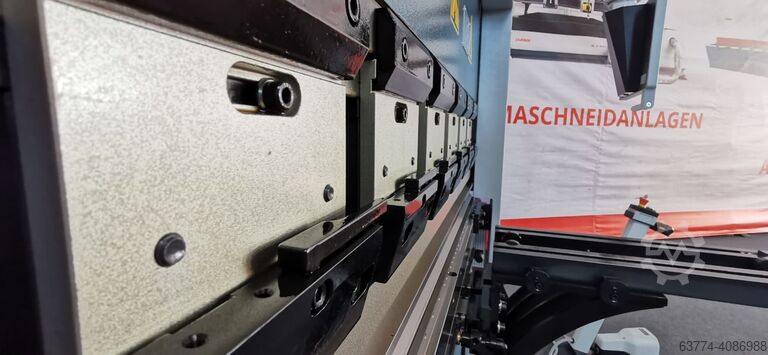

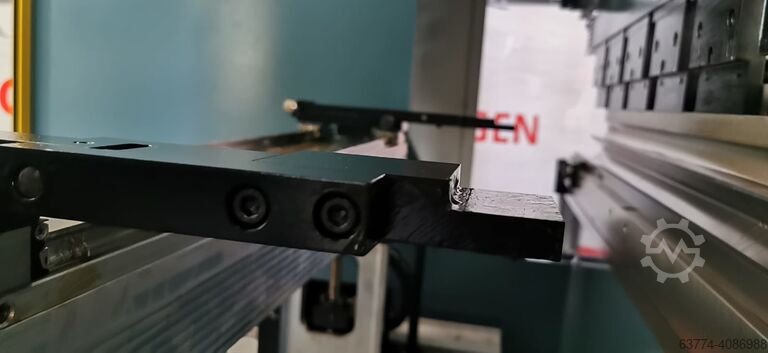

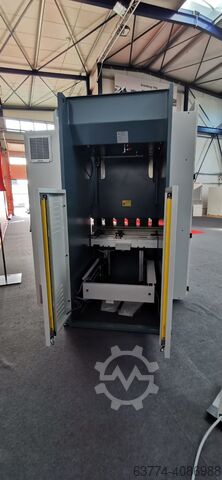

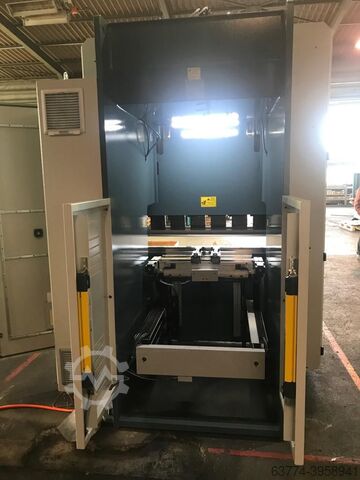

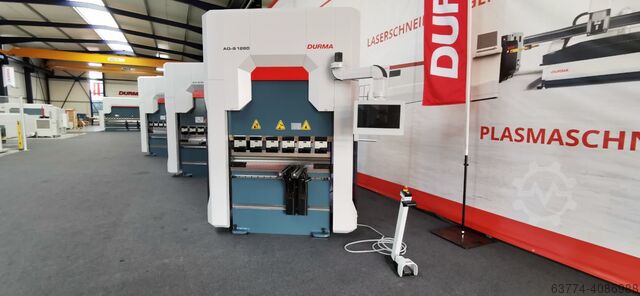

SPECIAL ACTION 1 M 60 ton press brake

DURMA AD-S 1260

Condition: new, Year of construction: 2024, Bending capacity: 60 tons Bending length: 1250 Distance between stands (mm): 1050 Stroke (mm): 265 Overhang: 410 Giedpjd E If Sofx Am Rjw Installation height: 530 Operating speed Y (mm/sec): 10 Motor power kW: 7.5 Operating speed X (mm/sec): 250 Length (mm): 2300 Width (mm): 1550 Height (mm): 2750 Weight (kg): 3,100 Standard accessories: Y1, Y2, X, R (4 axes) X=650mm X,R Control unit - DURMA DT15 European clamping system 60mm die holder (for European dies only) Overhang: 410 Rear stop: Siemens DC servo motor, linear guide, and ball screw system Protective cover Optional accessories: European upper tool P97.75.R08 (one part is split) European lower tool M.460R.85 (one part is split) DURMA quick clamping system CE marking with manual F.AKAS II M -FPSC-B-C + safety cover & switch Other machines are available for demonstration at our location in Staufenberg. Upon request, we will gladly provide you with further information.

Condition: good (used), Year of construction: 1992, machine/vehicle number: 9207102, Offer 12001 Technical data: - Material thickness: 1.25 mm - Max. overhang: 180 mm - Center distance between rollers: 63 mm - Max. material thickness with a tensile strength of 40 kg/mm²: 1.25 mm Gedei Hpmtepfx Am Roiw - Working speed, approx.: 6 + 12 m/min - Drive: 400 V / 0.7 / 0.85 kW - Space requirement, approx.: W 550 x H 1250 x D 1000 mm - Weight, approx.: 120 kg - Includes: - E - foot pedal

Condition: new, neu ca. 10 Wochen ab Auftrags Türkei 52400 € 990.36 € 60 to 1250 mm 3 (Y1, Y2, X) 265 mm 1050 mm 450 mm 530 mm hydraulisch 200 mm/s 10 mm/s 110 mm/s 650 mm 500 mm/s 900 mm 104 mm 100 l 7.5 kW 2300 mm 1550 mm 2850 mm 4700 kg Standard accessories: 3 axes (Y1, Y2,X ) CNC control DT-15 - 2D grafic display 15" - intuitive touch-screen control (simple drawing of the bending outline with your finger) Gedpfowird Tjx Am Reiw - user friendly programming in dialogue form - automatic calculation of the bending sequence - automatic calculation of the blank sheet size - graphic product and tool memory - correction possibility - USB interfaces for backup and programm transportation - PC software, generating programms on the PC and transfer to the machine by USB servo motorized back gauge on linear guides and ball screws back gauge finger blocks on double linear guides upper tool 1010 / A / 75 °, devidedand cranked 4-V die block 60x60 2009 (V = 16,22,35 and 50 mm) laser safety device Fiessler AKASmounted on the upper beam linear guided sheet support arms according to CE rules oilfilling users manual in English or German ADVANTAGES OF AD-S COMPAIRED TO PBF: - more stroke, installation height and throat - higher approach and retraction speed of the top beam - higher backgauge speed - backgauge finger on double instead of single linear guide - more options available such as: additional backgauge axes (e.g. Z1/Z2, Delta X, up to 6 axes), bending aids, laser angle measuring system, tandem design, other CNC controls ... optional equipment: R-Axis R/Z1/Z2-Axis DBend, 3D CAD/CAM importing- and simulation program (step, iges and dxf file import) CNC Control SKY22 CNC Control Delem DA66 S CNC Control DELEM DA-69S 3D incl. PC software Profile-S with 3D file import option Quick Release Clamping

Condition: as good as new (ex-display), Year of construction: 2025, sheet width 1050 mm plate thickness 2.0 mm roll length 1070 mm roll diam. toproll 75.0 mm Gsdpfx Asxacbuem Reiw engine output 1.5 kW weight 325 kg range L-W-H 1530 x 700 x 1160 mm Exhibition machine - like NEW not yet in use (!!) Special price on request Equipment: - electro-motor-driven 3-roller round bending machine - asymmetrical roller arrangement - 2x driven rollers using a brake motor - manual folding bearing for quick removal of the workpiece - wire insertion grooves on the bottom and rear rollers - double foot switch for R/L running including emergency stop button - rear roller feed with ratchet lever - electrical safety device

Year of construction: 1986, condition: ready for operation (used), Working width: 1250mm, max sheet thickness: 3mm, with loading table, vacuum lifter, feed table with rollers, ejector, output table, control panel and manual, inspection is possible, available from March 2024. Godpeq A Un Ssfx Am Roiw

Condition: used, Year of construction: 2022, plate thickness 4.0 mm Gijdpfxjxaazls Am Rew throat 260 mm distance between roll centers 132 mm stroke 55.0 OW mm tool adaptor Ø 35 mm, 12 mm Nut mm total power requirement 3.0 kW weight of the machine ca. 450 kg. range L-W-H 1600 x 900 x 1200 mm Exhibition machine from 2022 with only approx. 2x operating hours Condition as NEW Special price on request Equipment: - 3x pairs of beading and flanging rollers included in delivery - robust beading machine with motor-driven rollers - hydraulic adjustment of the upper roller, with pressure gauge - Lower shaft with adjustable stop - for the economical production of a wide variety of bead types - high accuracy thanks to precision-mounted shafts - Clearly arranged switching elements - Base frame equipped with storage compartment - powerful drive motor, even under continuous load - mobile foot switch for clockwise and counterclockwise rotation

Condition: new, bending length: 1050sheet thickness: 1upper roll diameter: 56 Technical specifications: - Cast iron body - By manuel or motorised (optional) bending Gisdpfx Ajd Ab Uysm Rjw - Opening top roll to side after bending for taking out the material easily - Cone bending device - Movement of the back and bottom rolls up and down manually with hand wheel - Portable control panel in order to control material from required  locations with foot pedal  - In acccordance with CE norms. Options: - Back roll with motor  - Digital readout for displaying position of the backroll - Body cover - Hardened rolls EURO 336,-- We have many references!

Condition: good (used), Year of construction: 1995, Fasti 3-roll calender Gisdpfef Slq Ssx Am Row Main features: Length 1860 Maximum sheet thickness: 0.75 mm Upper roller diameter: 40 mm Several jigs for LED ceiling lights

Condition: new, functionality: fully functional, Year of construction: 2026, machine/vehicle number: 27042010, TICAB (Trade Industrial Company AB) — a leading manufacturer of road maintenance equipment in Europe — offers you a cost-effective solution for efficient local repair of asphalt concrete surfaces. A portable asphalt recycling plant / recycler RA-800 from TICAB with its own engine and hydraulic drive produces 800 kg of high-quality asphalt mixture for every 20-30 minutes from asphalt scrap, milling, bitumen, crushed stone, sand. It also allows you to warm up the material and work with it within the area of laying or replacing asphalt. Equipment is ideal for emergency road repairs. Technical Specifications: ● Diesel engine with electric starter (10hp). ● Recycler productivity - 1800 - 2500 kg/hour. ● Drum capacity 800 kg (0,6 m3). ● Product heating temperature - 120 – 160 °C. ● Product heating time up to 15-20m (160°C). ● Fuel tank for 100 l (equipped with a fuel level indicator). ● Power of burner 100-130 KW. ● Burner diesel powered by a generator with a voltage stabilization system. ● The recycler drum is equipped with a heating distribution system (on the whole surface). ● Side flaps construction provides light access to servicing drum rollers. Giedpfjvrw Ansx Am Rew ● Control panel with indicators and at least one 220V power outlet on this panel (can be used for charging tools or lighting). ● Control panel, power block equipped with locks protection

Condition: new, Year of construction: 2025, laser type: fiber laser, laser power: 6,000 W, laser wavelength: 1,064 nm, working length: 1,250 mm, working width: 1,250 mm, Equipment: CE marking, cooling unit, documentation/manual, P class = machining area X 1250 mm x Y 1250 mm x Z 100 mm High-precision linear motor axis system with 6 kW laser power (* Prices vary depending on the configuration and laser power; this is a brand-new laser machine manufactured by us.) Gisdpfx Ask Ran Eom Rew Laser machining: simple and highly precise – laser cutting with high speed and quality.
