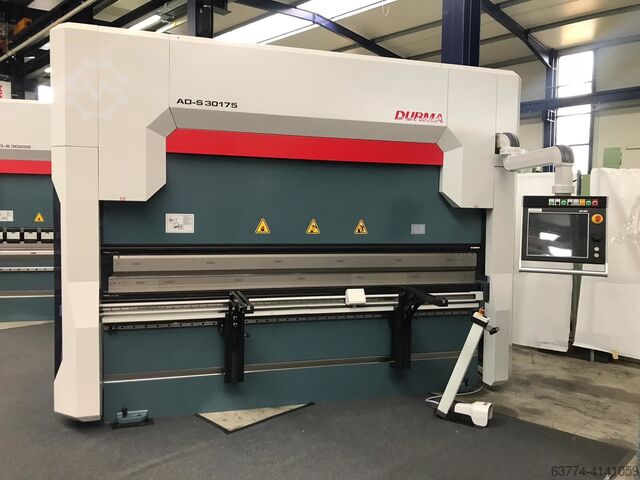

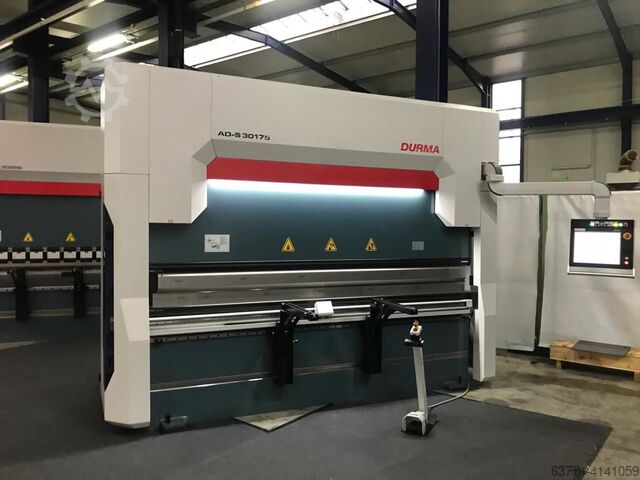

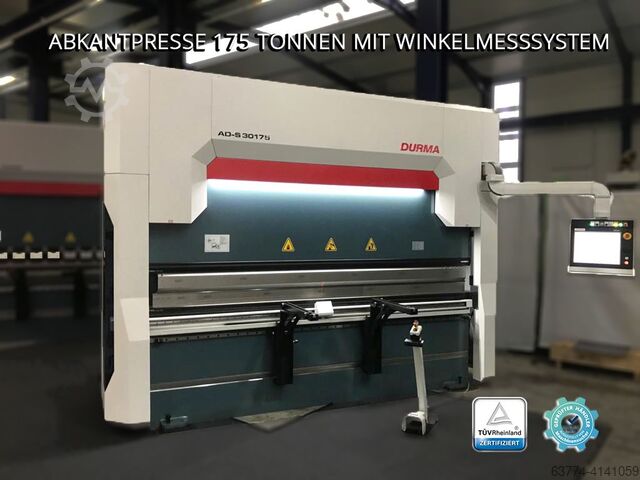

SPECIAL ACTION Pressbrake

Durma AD-S 30175 mit Winkelmesssystem

The DA-69T control system offers both 2D and 3D programming, which includes automatic calculation of the bending sequence and collision detection. The complete 3D machine setup includes multiple tool stations and provides immediate feedback on the feasibility and handling of the product.

Delem-69T features:
• 3D and 2D graphical touchscreen programming
• 3D representation in simulation and production
• 17-inch TFT color display with high resolution
• Complete Windows Application Suite
• Compatible with Delem Modusys (modular scalability and adaptability)
• USB, peripheral interface
• Open system architecture
• Sensor-based bending and correction interface
• Profile-T3D offline software
• Significant contribution to environmental protection; climate change and the greenhouse effect will thank us, as will future generations!

AD-S 30175 with Y1, Y2, X, and R axes

Bending force: 175 tons
Bending length: 3050 mm
Distance between stands: 2600 mm
Rapid traverse speed: 120 mm/sec
Working speed: 10 mm/sec
Return speed: 100 mm/sec
Installation height for tool clearance and the penetration depth of your press brake: 30 mm
Table width: 104 mm
Table height: 900 mm
Dedpfx Aksd Tpadehswa
Stroke: 265 mm
Overhang: 410 mm
Support arms: 2 pcs
Backstops: 2 pcs
Press force and speed of the press brake. X-axis: 500 mm/sec
X-axis travel direction: 650 mm
Speed of the R-axis max.: 350 mm/sec
R-axis travel direction: 250 mm
Motor power: 18.5 kW
Oil tank capacity: 250 liters
Length: 4250 mm
Width: 1700 mm
Height: 2750 mm
Weight approx. 11500 kg
Control system: Delem-69 T

Options:

Y1, Y2, X, R (4 axes) X=650mm X, R
Control system - CNC Cybelec ModEva 19T
DBEND 3D CAD/CAM import & simulation program
CNC-controlled motorized crowning
Adjustable front support arms with T-slot, clip stop, and guide along the entire line
Rear stop: Siemens DC servo motor & linear guide & ball screw system
Protective cover

CE standard with manual Fiessler AKAS II M - FPSC-B-C (SAFETY PLC)
Wila Hyd. top - NSCL-I-HC/UPB - PRO - Max load 180 t/m - Power pack required
Wila Hyd. bottom - NSCR-I-HC-CNC/UPB - PRO - Max load 200 t/m - Power pack required
Power pack for hydraulic clamping
DAM (Durma angle measuring system)

2 YEAR WARRANTY

The machine can be inspected and demonstrated at any time by appointment at our showroom in Staufenberg.

Other machines are available for demonstration at our location in Staufenberg.

Upon request, we will gladly provide you with further information.
