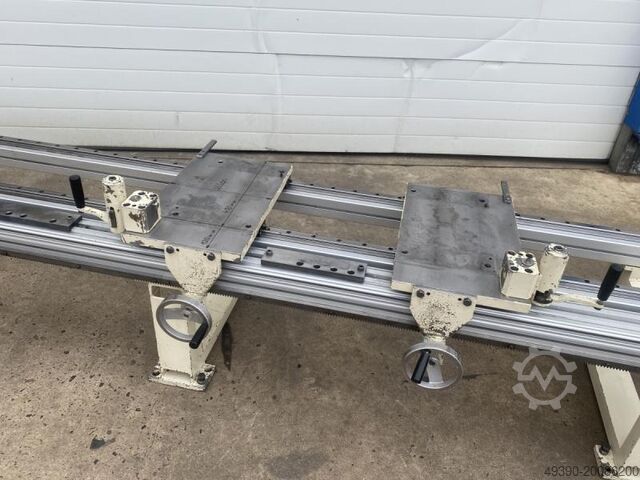

Adjustment unit with 2 positioning tables featuring hand crank adjustment - made from aluminium system profiles.
Linear unit, linear axis, loading unit, linear guide
Manufacturer: Custom-built
Year of manufacture: 2000
Track length: 3600 mm
Travel distance: 2750 mm
Table size: 590 x 355 mm

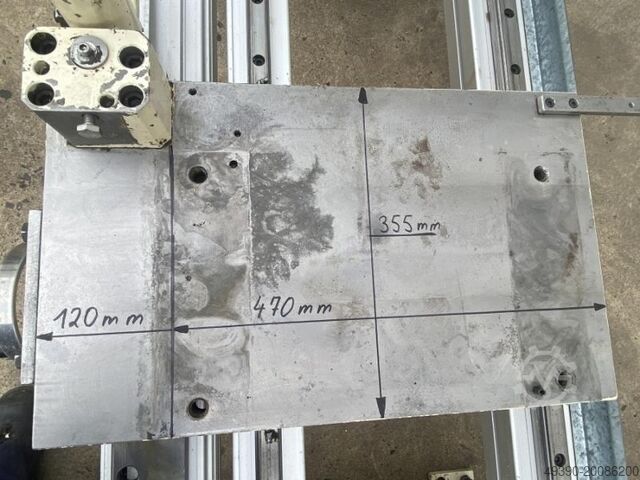

Usable table area with index: 470 x 355 mm
Tabletop material thickness: 30 mm (steel)
Csdoxf Uq Eepfx Abwohc
Aluminium system profile rail, length: 3600 mm (profile length)
Aluminium system profile, cross-section: 80 x 80 mm (base rail for guide)
Aluminium system profile rail, cross-section: 123 x 120 mm (front)

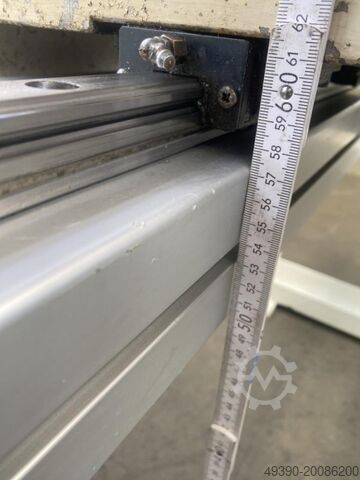

Height to top of tabletop above floor: 640 mm
Height to top of linear guide carriage above floor: 615 mm

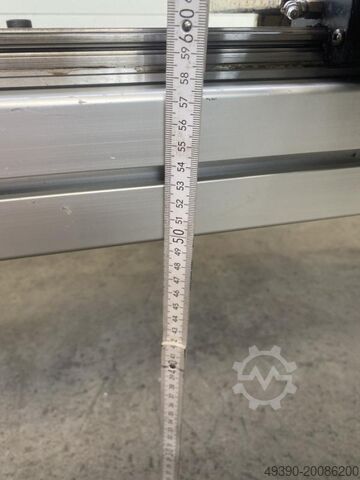

Height to top of aluminium system profile 80 x 80 mm above floor: 575 mm

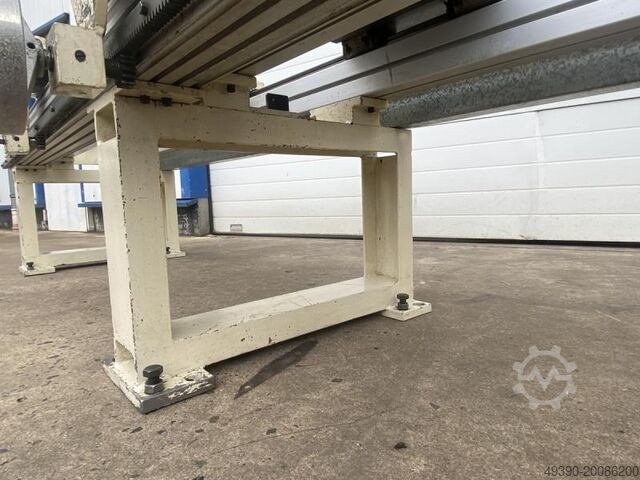

- Stable and torsion-resistant construction made from aluminium system profiles (80 x 80 mm) and steel feet
- For handwheel adjustment, a rack is bolted to the aluminium system profile rail

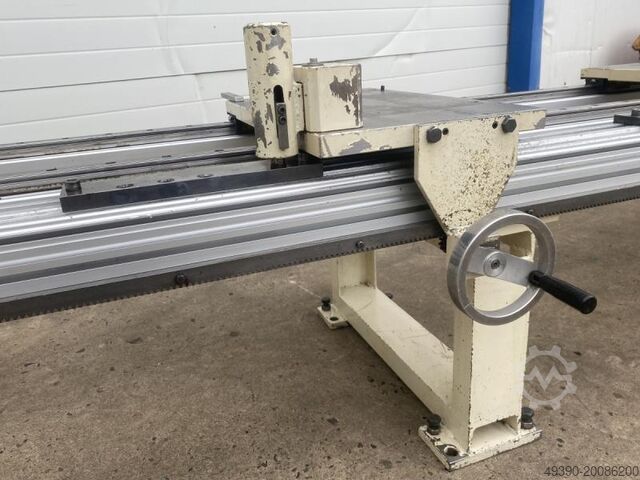

- Hand crank adjustment via gear and rack, individually for each table
- Spring-loaded index pin for fixed indexing, unlockable by hand lever
- Adjustable index plates on the aluminium system profile rail
- Standard linear guide width = 28 mm, height = 26 mm
Overall dimension L x W x H: 3640 x 900 x 780 mm
Weight: 450 kg
Good condition
