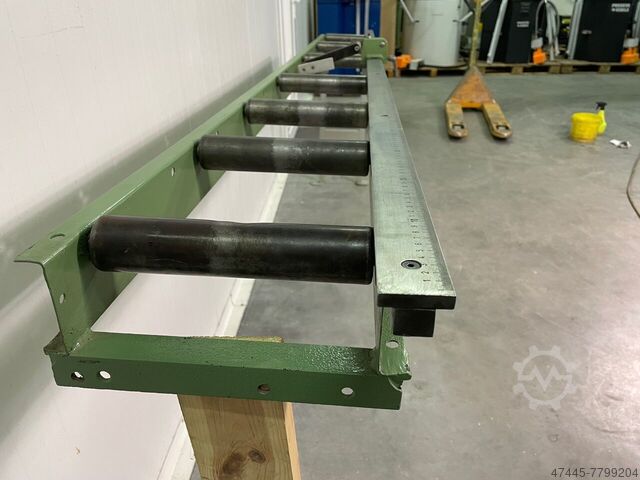

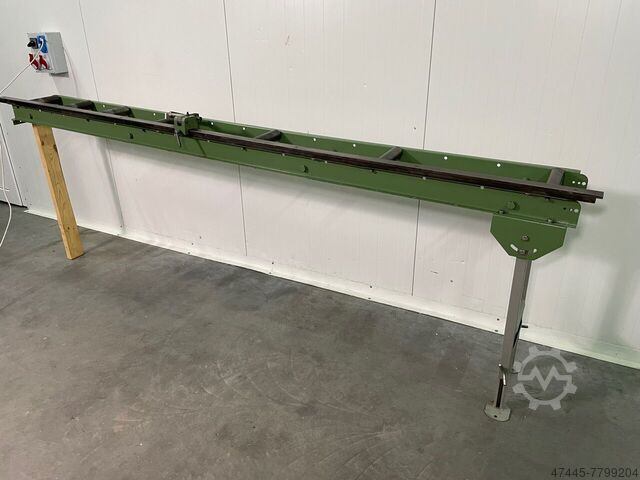

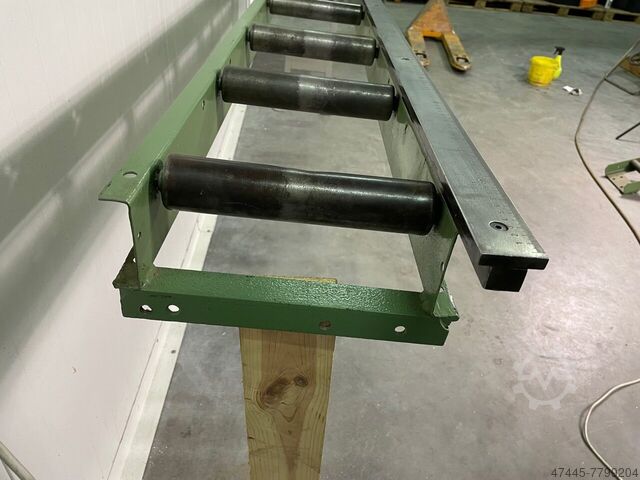

LENGTH STOP AND MEASURING SYSTEM

Eisele 300

Condition: good (used), Year of construction: 1994, Offer 24186 Cjdpfx Apjzqtrfs Asha Technical data: - Manual saw blade feed - Workpiece clamping in the machine vice - Saw blade diameter up to 315 mm - 2 cutting speeds: 40 - 80 m/min - Cutting range: at 90° - Round: 110 mm - Rectangular: 82 x 160 mm - Square: 82 x 82 mm - Miter cut: at 45° - Round: 110 mm - Rectangular: 80 x 120 mm - Square: 82 x 82 mm - Drive: 400 V / 1.4 / 1.9 kW - Coolant system - Space requirement: approx. W 600 x H 1600 x D 750 mm - Weight: approx. 300 kg

Condition: good (used), Year of construction: 1994, machine/vehicle number: 4110 HM 0001, Offer 24310 Chjdpfx Aezp H T Top Aja Technical data: - Manual blade feed - Workpiece clamping in the machine vise - Saw blade diameter 315 mm - 2 cutting speeds 40 - 80 m/min - Cutting range at 90°: round 110 mm - Rectangular 82 x 160 mm - Square 82 x 82 mm - Mitre cut at 45°: round 110 mm - Rectangular 80 x 120 mm - Square 82 x 82 mm - Drive 400 V / 1.4 / 1.9 kW - Coolant system - Space requirement approx. W 600 x H 1600 x D 750 mm - Weight approx. 300 kg

Year of construction: 2009, condition: used, Drive with 3 milling motors ensures a very stable structure (steel profiles can be machined from 3 sides in a single clamping). Locking mechanism for the lift of the horizontal motors prevents profiles from being scratched when inserting and removing them. Processing of profile widths up to 300 mm possible (e.g., mailboxes) using only the vertical milling motor. Specification: - Equipped with 1 vertical and 2 horizontal milling motors - Pneumatic workpiece clamping with 2 horizontal clamping cylinders - 3 pneumatic spray nozzles - Milling area of the vertical motor (L x D): 365 x 230 mm Chodpfx Apsy Nm Ere Aoa - Milling area of the horizontal motors (L x H): 250 x 100 mm - Maximum profile height: 150 mm - Operation via switches and 4 hand levers

Condition: good (used), Year of construction: 1980, machine/vehicle number: 2038, Offer 24272 Technical data: - Saw blade dimension 300 mm - Saw blade speed 2800 rpm - Cutting range - at 90° 160 x 20 mm - 100 x 80 mm Chodot H Ibmjpfx Ap Aea - at 45° 100 x 40 mm - Drive 400 V / 1.5 kW - Space requirement approx. W 400 x H 800 x D 600 mm - Weight approx. 80 kg - Table base W 900 x H 750 x D 500 mm

Condition: good (used), Year of construction: 2009, machine/vehicle number: 9155, Offer 24245 Technical data: - Pneumatic feed of the milling unit - Work table height adjustable via handwheel - Horizontal and vertical material clamping - cutter diameter up to 300 mm - max. profile height 190 mm - max. milling depth 110 mm - max. milling length 400 mm Cjdpfx Apotq Take Aeha - Angle-adjustable stop Li + Re 20 90 20 ° - milling spindle speed 2800 rpm - Drive 400 V / 2.2 kw - Compressed air connection 6 - 8 bar - Air consumption per work cycle approx. 10 l - ELGO digital display for material cross stop - Pneumatic profile clamping - Spraying device - Space requirement approx. W 1100 x H 1500 x D 700 mm - Weight approx. 300 kg
