High voltage tester, high voltage test device, high voltage tester for HV, PE, IS measurement, test

ELABO PE/IS/HV / 91-3J.3 + SHV 16 / 90-1V.3 + 90-9B.3ZM9

High-voltage tester, high-voltage test device, high-voltage tester for HV, PE, IS measurement
Test console, test station, measuring station, test device, measuring device
ELABO Type PE/IS/HV / 91-3J.3 + SHV 16 / 90-1V.3 + 90-9B.3ZM92510

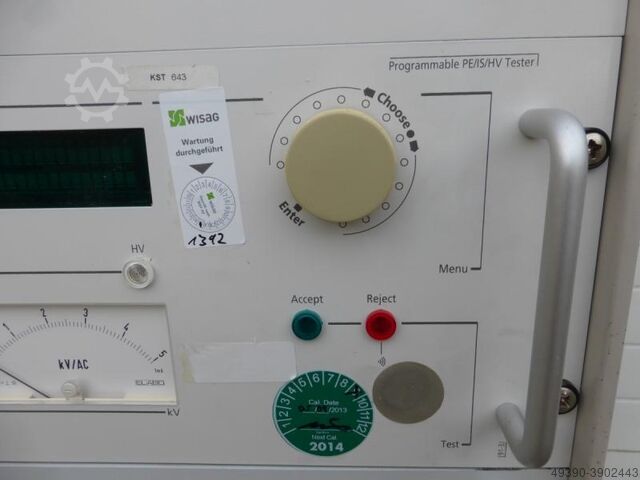

The device PE/IS/HV / 91-3J.3 is used to measure voltage strength, insulation resistance, and protective conductor voltage drop in accordance with VDE0113 and IEC standards according to EN60204, Part 1.
Serial No.: Year of manufacture: 2003
Rated voltage: 230 VAC
Rated frequency: 50 Hz
Rated current: 6.3 A
- Protective conductor resistance measurement
- Insulation resistance measurement
- Protective conductor voltage drop measurement

The device SHV 16 / 90-1V.3 provides a highly stable direct voltage with low ripple.
One output pole carries high voltage, and the other output pole is close to ground and can be set to a potential of up to 300 V.
Serial No.: Year of manufacture: 2005
Mains voltage: 230 VAC
Mains frequency: 50 Hz
Rated current: 1 A
Noise suppression according to VDE 0871
Rated power: 14 watts
Output voltage: 0 - 6.0 kV / DC
Output current: 0 - 2 mA

Connection unit for ELABO testers, switching matrix, connector unit
ELABO Type 90-9B.3ZM92510
Serial No.: 0063475
Rated voltage: 230 VAC
Rated frequency: 49 - 61 Hz
Rated current: 1 A
Number of test points: 5

- Device unit, compact on a rolling frame
- Various connection cables and accessories as shown in the picture
Overall dimensions L x W x H: 580 x 700 x 1460 mm
Total weight: 100 kg
Good condition

Ppsdsd Dc Unopfx Anpou
Many other ELABO devices are available under storage numbers 57820 and 57821.
