Test bench, test station, measuring station, test device, measuring device, tester for HV, PE, IS me

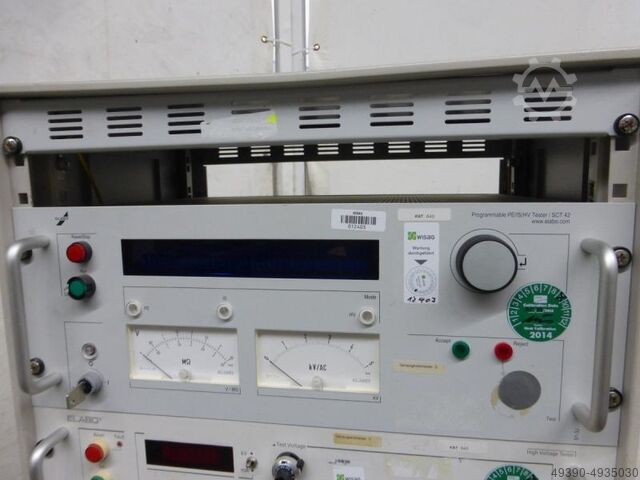

ELABO PE/IS/HV SCT 42 / 91-3J.3 + 90-1V + 90-9B.3ZM92510

Testing console, testing station, measuring station, testing device, measuring device, tester for HV, PE, and IS measurements
ELABO Type PE/IS/HV SCT 42 / 91-3J.3 + 90-1V + 90-9B.3ZM92510
High-voltage testing device
Pgsdpfsf Axn Ajx Anpsn

PE/IS/HV SCT 42 / 91-3J.3 is used for measuring voltage resistance, insulation resistance, and the voltage drop of the protective conductor, in accordance with VDE0113 or IEC standards, as per EN60204, Part 1.
Serial No.: 0064016 Year of manufacture: 2004
Rated voltage: 230 VAC
Rated frequency: 50 Hz
Rated current: 6.3 A
- Protective conductor resistance measurement
- Insulation resistance measurement
- Protective conductor voltage drop measurement

The device 90-1V provides a highly stable direct voltage with low ripple.
One output pole carries high voltage, and the other output pole is close to ground and can be set to a potential of up to 300 V.
Device No.: 90-7WZ006 Year of manufacture: 2000
Supply voltage: 230 VAC
Supply frequency: 50 Hz
Rated current: 1 A
Interference suppression according to VDE 0871
Rated power: 14 watts
Output voltage: 0 - 6.0 kV / DC
Output current: 0 - 2 mA

Connection unit for ELABO tester, switching matrix, connector unit
ELABO Type 90-9B.3ZM92510
Serial No.: 0097588 Year of manufacture: 2009
Rated voltage: 230 VAC
Rated frequency: 49 - 61 Hz
Rated current: 1 A
Number of test points: 5

- Device unit, compact on a rolling frame
- Various connection cables and accessories as shown in the picture
Overall dimensions L x W x H: 580 x 700 x 1380 mm
Total weight: 100 kg
Good condition

Many other ELABO devices are available under storage numbers 57819, 57820 and 57821.
