CNC Lathe

EMAG VL 2

Condition: used, Year of construction: 2019, max. workpiece diameter 400 mm max. workpiece length 300 mm control FANUC travel -x axis 995 mm travel -z axis 580 mm max. turning speeds 2.850 U/min no. of tools in turret 12 Stk./pcs. driven tools turning speeds 6.000 U/min Bsdpfx Asynnuwsh Isld Vertical Turning Machines | 2 x EMAG VL 8 equipped with driven tools and Track Motion TM loading system Both machines show the following operating hours: - Power-on hours: approx. 16,300 hrs - Spindle hours: approx. 9,950 hrs An extensive package of tools and clamping equipment is included in the scope of delivery. The machines are in very good condition and can be inspected under power. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: VL8 | VL-8

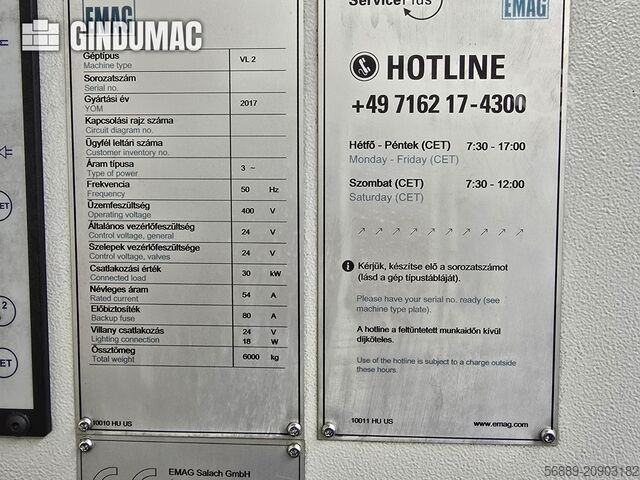

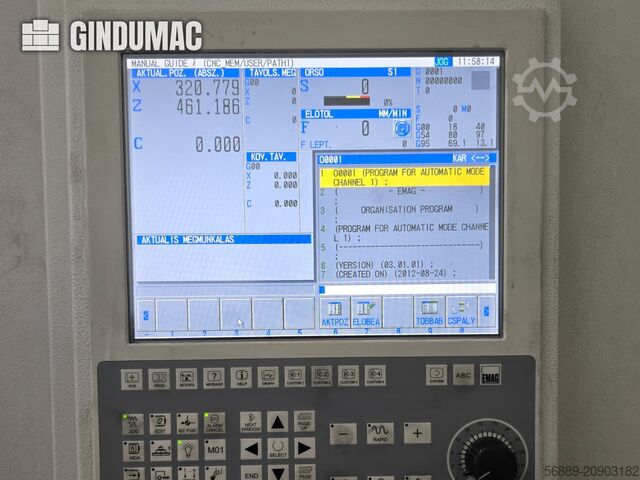

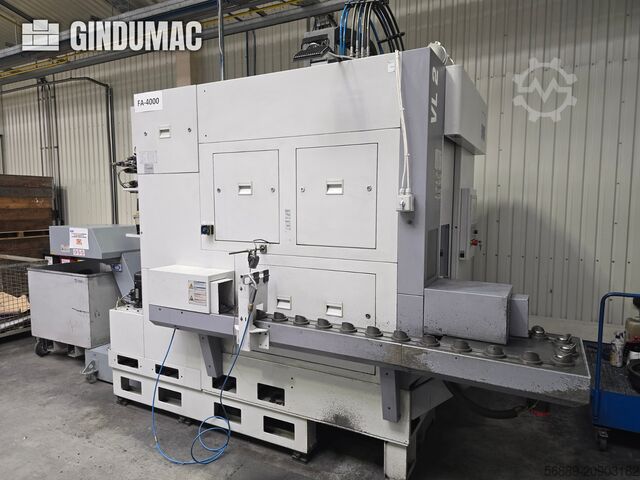

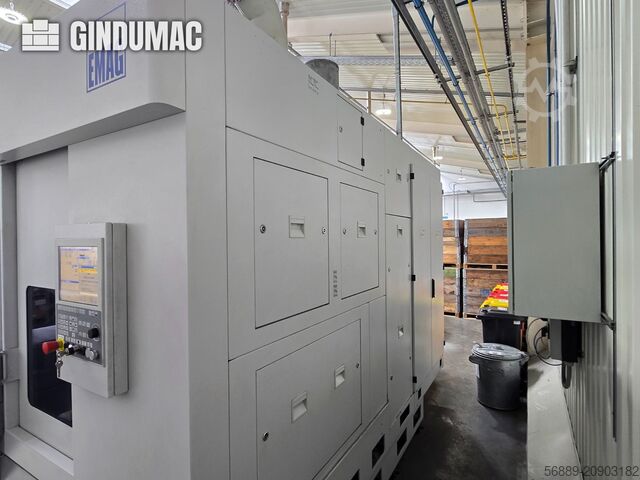

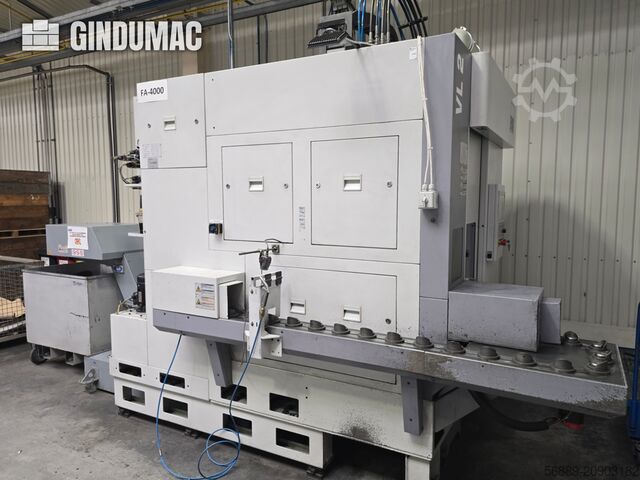

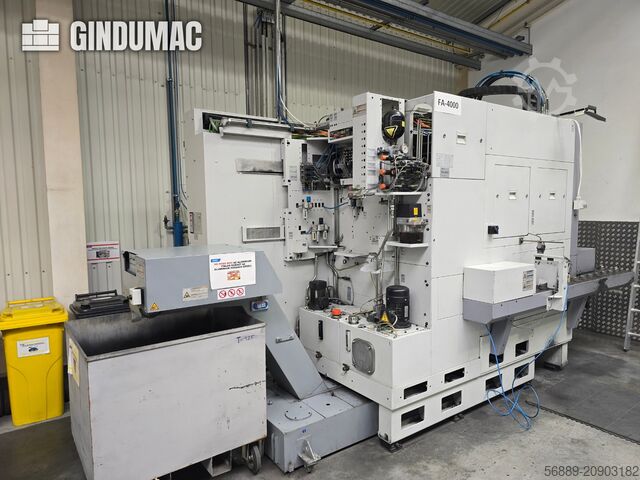

Condition: ready for operation (used), Year of construction: 2017, operating hours: 10,437 h, travel distance X-axis: 650 mm, travel distance Y-axis: 50 mm, travel distance Z-axis: 375 mm, spindle motor power: 18,100 W, spindle speed (max.): 6,000 rpm, number of axes: 3, This 3-axis EMAG VL2 vertical turning machine was manufactured in 2017. It features a max workpiece diameter of 100 mm, chuck diameter of 160 mm, and a swing diameter of 210 mm. The main spindle offers a power rating up to 18.1 kW and a max spindle speed of 6,000 rpm. Consider the opportunity to buy this EMAG VL2 vertical turning machine. Contact us for more information. Bljdsx S Skropfx Ah Ied • Run time: 10,437 hours • Max. workpiece diameter: 100 mm (4") • Chuck diameter: 160 mm (6.5") • Swing diameter: 210 mm (8") • Max. workpiece length: 150 mm (6") • Main spindle: • Power rating (40% / 100%): 18.1 / 13.9 kW (24 / 19 hp) • Torque (40% / 100%): 77 / 59 Nm (57 / 44 ft-lb) • Turret: • Tool positions: 12 • Driven tools speed: 6,000 rpm • Driven tools torque (30% / 100%): 27 / 15 Nm (20 / 11 ft-lb) • Rapid traverse rate: • X axis: 60 m/min • Y axis: 30 m/min • Z axis: 30 m/min

Condition: used, Year of construction: 2013, functionality: limited functionality, machine/vehicle number: 105032, Technical characteristics: Work Area - Maximum clamping plate diameter: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse in Z: 30 m/min - Standard integrated automation (number of loading nests by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle according to DIN 55026: Size A5 - Maximum spindle speed: 6,000 rpm - Spindle power (100%/40% duty cycle): 18.1 / 13.9 kW - Spindle torque (100%/40% duty cycle): 77 / 59 Nm Bodpoxxwztofx Ah Ield Tool Turret with Driven Tools - Tool holders according to DIN 69880: 12 positions - BMT65 - Maximum tool length including holder: 190 mm - Maximum tool speed: 6,000 rpm - Maximum torque: 27 Nm (10% duty cycle), 14 Nm (100% duty cycle) Electrical Equipment - Operating voltage: 400–480 V, 80 A - Connected load: 27 kVA Dimensions - Overall dimensions: Length = 4,350 mm (with chip conveyor), Width = 1,600 mm, Height = 2,500 mm - Weight: 5,500 kg Main Features and Capabilities: - Vertical Design: Optimised for chip evacuation and easy loading/unloading - Control: GE Fanuc FS 32i B - High Precision: Positioning accuracy on X and Z axes ±0.001 mm, Haidenhain linear scales - Main Spindle: High power output and wide speed range - In-process Control: Marposs T25 measurement probe - Automated Loading/Unloading: Parts are automatically loaded and unloaded by integrated automation - Live Tooling: Capable of drilling and milling with driven tools - Tool Life Monitoring with Sister Tool Management - Chip Conveyor, Coolant System, Switchable Dual Cartridge Filter, High Pressure Pump (15 bar) - Fully Enclosed Work Area, Work Area Lighting - Documentation: Electronic available; paper manual not complete Machine Condition: WORKING - Operator panel safety switch is broken

Condition: repair required (used), Year of construction: 2017, functionality: not functional, machine/vehicle number: 108113, Technical Characteristics: Work Area - Maximum clamping plate diameter: 160 mm Bjdpfxjxxip Aj Ah Iold - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse Z: 30 m/min - Standard automation with closed system (number of loading nests by workpiece diameter: 14/(80–200), 18/(30–160), 30/(30–85)) Main Spindle - Spindle interface per DIN 55026: Size A5 - Maximum spindle speed: 6000 rpm - Power (100% / 40% duty cycle): 18.1 / 13.9 kW - Torque (100% / 40% duty cycle): 77 / 59 Nm Tool Holder with Driven Tools - Tool shank per DIN 69880: 12 – BMT65 - Number of stations: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque (10% duty cycle): 27 Nm; (100% duty cycle): 14 Nm Electrical Equipment - Operating voltage: 400–480 V, 80 A - Connected load: 27 kVA Dimensions - Total dimensions (L x W x H): 4350 mm (with chip conveyor) x 1600 mm x 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical Design: Optimized for chip removal and easy loading/unloading - CNC Controller: GE Fanuc FS 32i B - High precision: Positioning accuracy in X and Z axes ±0.001 mm with Heidenhain linear scales - Main spindle: High power and broad speed range - In-process control: Marposs T25 measuring probe - Automated loading/unloading: Integrated automation for feeding and removing parts - Live tools: Capability for drilling and milling operations - Tool life monitoring and sister tool management - Chip conveyor & Knoll coolant filtration unit with paper filter and 40 bar pumps (suitable for filtering two machines) - Fully enclosed work area, with work area lighting - Documentation: Electronic version available, printed booklet incomplete Machine Status: - NOT WORKING - LT motor defective, repairable - Operator panel, safety switch, and two buttons broken and need replacement

Condition: repair required (used), Year of construction: 2016, functionality: not functional, machine/vehicle number: 107965, Technical characteristics: Work Area - Maximum diameter of the clamping plate: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel path: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel path: 375 mm / Rapid traverse in Z: 30 m/min - Standard enclosed automation (number of loading nests in relation to part diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle interface according to DIN 55026: Size A5 - Maximum rotational speed: 6000 rpm - Power at 100% / 40% duty cycle: 18.1 / 13.9 kW - Torque at 100% / 40% duty cycle: 77 / 59 Nm Tool Turret with Driven Tools - Tool shank as per DIN 69880: 12 positions - BMT65 - Number of positions: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 27 Nm, at 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V, 80 A - Connected load: 27 kVA Dimensions - Total machine dimensions: Length = 4350 mm (with chip conveyor), Width = 1600 mm, Height = 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical construction: Optimized chip removal and easy loading/unloading - CNC controller: GE Fanuc FS 32i B - High precision: Axis positioning accuracy in X, Z ±0.001 mm (Heidenhain linear scales) - Main spindle: High power and wide speed range - Process control: Marposs T25 measuring probe - Automated loading/unloading: Parts are loaded and removed via integrated automation system - Live tooling: Enables drilling and milling operations in addition to turning - Tool life monitoring with sister tool management - Chip conveyor & coolant filtration system Knoll with paper filter and 40 bar pumps (capable of filtering 2 machines) - Fully enclosed work area; integrated work lighting - Documentation: Available electronically; hardcopy manuals incomplete Bedpfjxw Svisx Ah Isld Machine status: NOT WORKING - Live tool drive motor - Safety locking mechanism (Euchner) for loading door - Turret drive motor - Turret motor driver - Lubrication pump - Hydraulic manifold (4x electrovalves) - Lubrication pressure system - Rotary union - Hydraulic cylinder for loading door - Spindle clamping/unclamping sensor

Condition: repair required (used), Year of construction: 2016, functionality: not functional, machine/vehicle number: 107964, Technical characteristics: Work Area - Maximum diameter of the clamping plate: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse in Z: 30 m/min - Standard enclosed automation (number of loading nests by workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle interface according to DIN 55026: Size A5 - Maximum speed: 6000 rpm - Power at 100% / 40% duty cycle: 18.1 / 13.9 kW - Torque at 100% / 40% duty cycle: 77 / 59 Nm Tool Holder with Motorized Tools - Tool holders with cylindrical shank according to DIN 69880: 12 - BMT65 - Number of stations: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 27 Nm, at 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V, 80 A - Connected load: 27 kVA Dimensions - Total dimensions: Length = 4350 mm with chip conveyor, Width = 1600 mm, Height = 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical Design: Enables optimal chip evacuation and easy loading/unloading. - CNC Control: GE Fanuc FS 32i B. - High Precision: Positioning accuracy on X and Z axes ±0.001 mm with Heidenhain linear scales. - Main Spindle: High power and wide speed range. - In-process Measurement: Equipped with Marposs T25 measuring probe. - Automated Loading/Unloading: Integrated automation for part loading and unloading. - Live Tooling: Capability for driven tools expands machining to drilling and milling operations. - Tool Life Monitoring: Sister tool management for tool life tracking. - Chip Conveyor Blsdpfx Ahsxw Srks Ied - Fully Enclosed Work Area with Work Area Lighting - Documentation: Electronic available; hardcopy/incomplete book. Machine Status: NOT OPERATIONAL - Cooling pump x2 units - Live tool drive motor - Lubrication pump - Operator panel - touchscreen needs replacement - Hydraulic block valves x3 - Hydraulic loading door cylinder - Rotary joint - Lubrication pressure switch - Safety door, Euchner type

Condition: repair required (used), Year of construction: 2016, functionality: not functional, machine/vehicle number: 107786, Technical characteristics: Work Area - Maximum clamping plate diameter: 160 mm - Maximum turning diameter: 160 mm - Maximum machining diameter: 100 mm - Maximum workpiece length: 150 mm - X-axis travel: 700 mm / Rapid traverse in X: 60 m/min - Z-axis travel: 375 mm / Rapid traverse in Z: 30 m/min - Standard closed automation (number of loading stations per workpiece diameter: 14/(80...200), 18/(30...160), 30/(30...85)) Main Spindle - Spindle as per DIN 55026: Size A5 - Max. speed: 6000 rpm - Power at 100 / 40% duty cycle: 18.1 / 13.9 kW - Torque at 100 / 40% duty cycle: 77 / 59 Nm Tool Turret with Driven Tools - Toolholders per DIN 69880: 12 × BMT65 - Number of stations: 12 - Maximum tool length including holder: 190 mm - Maximum speed: 6000 rpm - Maximum torque at 10% duty cycle: 27 Nm; 100% duty cycle: 14 Nm Electrical Equipment - Operating voltage: 400 - 480 V, 80 A Bodoxw Slkspfx Ah Ield - Connected load: 27 kVA Dimensions - Overall dimensions: Length = 4350 mm (with chip conveyor), Width = 1600 mm, Height = 2500 mm - Weight: 5500 kg Main Features and Capabilities: - Vertical construction: optimal chip evacuation and easy part loading/unloading - Control: GE Fanuc FS 32i B - High precision: positioning accuracy in X and Z axes ±0.001 mm (Heidenhain linear scales) - Main spindle: high power and wide speed range - In-process control: Marposs T25 measurement probe - Automated loading/unloading: integrated automation feeds and removes workpieces - Driven tools: enhances machining capabilities for drilling and milling - Tool life monitoring with sister tool management - Chip conveyor - Fully enclosed work area; workspace lighting - Documentation: Electronic available; physical manual incomplete Machine Condition: NOT WORKING - Operator panel touchscreen needs replacement - Hydraulic cylinder for loading door broken - Emulsion pump - Hydraulic pump - Spindle clamp/unclamp sensor - Hydraulic accumulator - Turret motor

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, General Control: Fanuc 31i-B5 Chuck diameter: 160 mm Turning length: 150 mm Workpiece diameter: max. 100 mm Workpiece length: max. 150 mm Travel X: 650 mm Travel Z: 375 mm Spindle Power: max. 15.4 kW Torque: max. 7 Nm Speed: max. 6,000 rpm Tool turret: 12 stations Mounting: BMT55 Rapid traverse X/Z: 60/30 m/min AGW speed: 6,000 rpm AGW torque: max. 23.7 Nm Automation Technology: Perimeter-type workpiece storage Workpiece height (incl. workpiece pallet): max. 150 mm Blsdpfx Ahjx Ahbxo Ijd Workpiece weight: max. 5 kg Workpiece handling: Via spindle (pick-up) Equipment Chip disposal: Chip conveyor Coolant supply: High-pressure coolant, 15 bar Workpiece measurement: Measuring probe Emulsion mist separator: Mechanical Clamping cylinder: Hydraulic full clamping cylinder

Condition: new, functionality: fully functional, Spindle unit MKK05-012-25-60-080-00340 Original packaging, from stock with documentation EMAG order number: 20399062 Bodpfsxz Al Aox Ah Iold

Condition: new, functionality: fully functional, Spindle unit MKK05-026-23-60-080-01024 Factory-sealed, from stock with documentation EMAG order number: 20596156 Bodpfsxz Ahdjx Ah Iold
