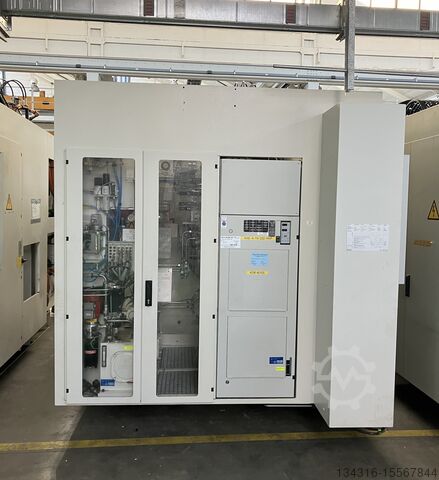

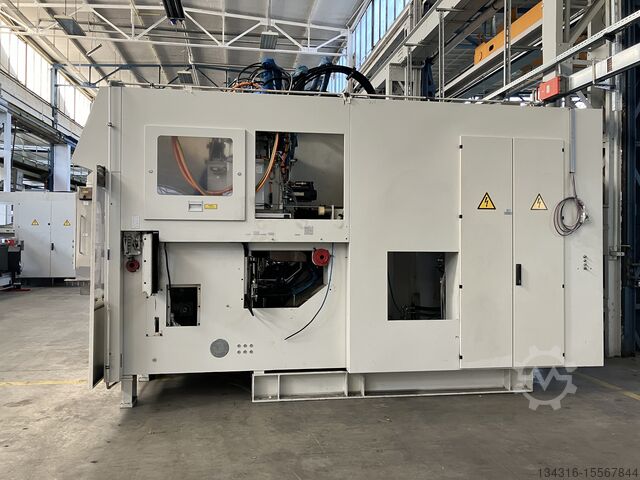

Vertical double spindle turning centre

EMAG VSC 250 DUO

Condition: good (used), Year of construction: 2010, functionality: fully functional, We offer you: CNC vertical turning center Bjdpfxszdbv Tj Aqwjwt Manufacturer: EMAG Type: VSC 250 Duo DD Year of manufacture: 2010 / 2012 Control system: Siemens 840D sl Technical data: Max. turning diameter: 250 mm Max. swing diameter: 260 mm Main spindle: Max. speed: 4,500 rpm Max. torque: 250 / 340 / 460 Nm Spindle bore: 52 mm Chuck diameter: 250 mm Tool turret: Number of turrets: 2 Number of tool positions: 12 Max. tool diameter: 50 mm Max. workpiece weight: 20 kg Max. workpiece diameter: 240 mm Feeds: Rapid traverse (x / z): 45 / 30 m/min Total power consumption: 66 / 75 kW Machine weight: approx. 16 / 18.5 tons There are 3 identical machines available, 2 manufactured in 2010, 1 in 2012. Technical features & accessories: - Marposs measuring system - Open automation - W10 loading portal - Safety guard - Minimum quantity lubrication - In-process quality control - Central coolant supply (not included) - Chip conveyor Accessories, tools and clamping devices shown in the images are only included in the scope of delivery if this is stated in the additional information. Subject to change and errors in the technical data and information, as well as prior sale!

Condition: ready for operation (used), Year of construction: 2017, operating hours: 15,208 h, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 880 mm, overall weight: 12,000 kg, spindle speed (max.): 15,000 rpm, spindle motor power: 21,000 W, number of axes: 4, This 4-axis DMG MORI NHX 5000 was manufactured in 2017. It features a maximum spindle speed of 15,000 rpm and a travel of 730 mm in both the X and Y axes, with a Z-axis travel of 880 mm. The machine includes a robust pallet size of 500 x 500 mm and a tool capacity of 40 tools. If you are looking to get high-quality machining capabilities, consider the DMG MORI NHX 5000 horizontal machining centre we have for sale. Contact us for further details. • Spindle torque: 111 Nm (continuous 85 Nm) • Tool capacity: 40 tools (optional magazine 60 tools) Bjdpfx Aqsyt Hwzswswt • Rapid traverse (X/Y/Z): 60 m/min • Acceleration (X/Y/Z): 1G • Pallet size: 500 x 500 mm • Number of pallets: 2 • Automatic rotary pallet changer: 2 stations • NC table B axis: direct drive, indexing 0.001°, max speed 100 rpm • Maximum pallet load: standard 500 kg (optional 700 kg) • Direct position measuring system; Linear scale standard • Control system: CELOS Siemens 840D sl with 21.5" ERGOline multi-touch display • Electronic handwheel: Siemens • Coolant through spindle preparation up to 70 bar • Renishaw probe OMP60 • Tool breakage detection system • Machine status signal lamp • Water-glycol spindle cooling unit • Application Tuning Cycle (ATC) • Machine bed: 3-point support • Power connection: L1 L2 L3 N PE • Connected load: 46 kVA • Maximum input current: 67 A • Fuse protection: 125 A • Short circuit current: 1.25 kA • Maximum supply voltage: 4.0 kV • Supply voltage: 400 V ±10 % • Frequency: 50 Hz • Control voltage: AC 230 V / DC 24 V • Operating time: 27,715 h • Spindle hours: 15,208 h Additional equipment • Knoll KF110/700 • Knoll Flow Monitor • High-pressure coolant system • 2x clamping towers (250 x 250 x 650 mm) TRIAG incl. accessories • 95x tool holders HSK63 (various clamping devices) Technical Specification Taper Size BT 40

Condition: used, Year of construction: 2011, Vertical Twin-Spindle Turning Center - Siemens 840 D CNC control - VSC 400 Duo machine bed - 2 x disc turrets, 12 station, dia. 40 mm, driven - 2 x additional drilling and countersinking stations - Open workpiece transport system - Transfer and turning unit - Interface for an external handling system - Central high-pressure coolant supply with pump, 70 bar - Air blow-off for pick-up unit and clamping devices - Workpiece measurement system - Tool monitoring - Emag network option - Sister tool management system Swing diameter: 260 mm X travel: 860 mm Bwjdpfsy N Snxox Aqwst Z travel: 200 mm Main spindles: 2 Max spindle speed: up to 4,500 rpm Spindle distance: 1,055 mm Main drive: 2 AC asynchronous motor 60% / 100% duty cycle: 39 / 28 kW Max torque: 460 Nm Rapid traverse (X / Z): 45 / 30 m/min

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, Working area Grinding length: 250 mm Centre height: 100 mm Workpiece weight: 30 kg Z-axis: 350 mm Table adjustment: 8 ° degrees X-axis: 190 mm Grinding spindle Grinding wheel diameter max.: 500 mm Grinding wheel width max.: 80 mm Grinding wheel bore: 127 (203) Grinding wheel motor power: 5.5 kW Peripheral speed: 50 m/s Grinding wheel protection cover: D500 x 80mm Workpiece spindle Speed: 1 - 2,000 rpm Workpiece spindle mount: MK4 Tailstock Bwjdpfx Aqevz Snkswot Tailstock quill mount: MK3 Tailstock quill stroke length: 30 mm Cylinder fine adjustment range: ± 0.04 Equipment Paper belt filter system Rinse gun Mechanical fume extraction

Condition: like new (used), Year of construction: 2024, operating hours: 7,556 h, functionality: fully functional, 4 x LIEBHERR LC 280 DC Gear Hobbing Machines For sale are 4 identical LIEBHERR LC 280 DC gear hobbing machines, all manufactured in 2024. Manufacturer: Liebherr Verzahntechnik GmbH Model: LC 280 DC Machine Type: CNC gear hobbing machine with integrated ChamferCut unit Quantity Available: 4 units Year of Manufacture: 2024 Example Machine No.: XXX Control: Siemens CNC / HMI user interface Technical Data: Max. Workpiece Diameter: 280 mm Max. Module: 6 mm / 4 mm depending on the version Axial Travel: 400 mm Shift Travel: 200 mm Max. Hob Diameter: 150 mm Hob Speed: 2,250 / 6,000 rpm Table Speed: 250 / 800 rpm Max. Module ChamferCut: 5 mm Max. Tool Speed ChamferCut: 2,000 rpm Max. Tool Diameter ChamferCut: 130 mm Max. Tool Clamping Length Drilling Tool: 236 mm Max. Tool Clamping Length Shank Tool: 360 mm The LC 280 DC is a compact gear hobbing machine for workpieces up to 280 mm in diameter and integrated ChamferCut machining; according to Liebherr, it is designed for gear hobbing and parallel, defined deburring/chamfering. ([Liebherr][1]) Bwjdpfx Ajzdv Upeqwot Equipment: Integrated ChamferCut unit Automatic workpiece handling / round magazine Siemens CNC control Liebherr HMI / production interface Workpiece spindle Hobbing head Deburring/chamfering unit Full protection cabin Work area lighting Automation interface CE marking Machine suitable for dry and wet machining, depending on equipment and process Electrical data per machine according to the nameplate: 400 V AC 50 Hz Control voltage: 24 V AC Installed power: 29 kVA Rated current: 42 A cos φ: 0.81 Fuse: 63 A gL Control cabinet weight: 900 kg All 4 machines are identical, manufactured in 2024, and come from modern industrial series production. Technical data according to nameplate, manufacturer's specifications, and photo documentation. Subject to errors and prior sale.

Condition: like new (used), Year of construction: 2021, Offered is a double spindle pick up turning machine VSC 500 DUO. The machine is equipped with 2 independent working spindles and 2 EMAG turrets. The machine can produce 2 identical workpieces with the same machining operation, as well as one workpiece in two successive machining operations. The machine can be equipped with various periphery (chip conveyor, coolant system, external automation, etc.), depending on requirements. COTROL Siemens 840 Dsl TECHNICAL DATA workpiece diameter: max. 440 mm workpiece height: max. 250 mm chuck diameter: 450 mm swing diameter: 550 mm X-stroke: 925 mm Z-stroke: 400 mm Bwodpot Du Tdofx Aqwst TOOL CARRIER 2x EMAG disc turrets, 12x CDI 68, with driven tools Price, delivery time and equipment of the machine on request.

Condition: used, Year of construction: 2006, Technical details: max. wheel diameter: 300 mm max. module: 7 weight of the machine ca.: 15 t table turning speeds: 100 U/min table diameter: 180 mm hob turning speeds: 750 U/min max. hob diameter: 300 cutter length max.: 230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion Bwodpsyz Sd Rsfx Aqwot *

Condition: refurbished (used), Year of construction: 2012, Offered is a vertical turning center EMAG VSC 250. The machine had a mechanically overhaule in 2022 and will be sold like new. The machine is equipped with automation belt. Other peripherals is not included, and can be offerd if requested by customer. CONTROL Siemens 840Dsl TECHNICAL DATA Workpiece diameter: 250 mm Workpiece height: 100 mm X-stroke: 860 mm Z-stroke: 200 mm MAIN SPINDLE power 28 kW TOOL CARRIER EMAG wheel turret, 12x VDI 40 Delivery time and additional equipment of the machine on request. Bwedpfsh Tkdqjx Aqwot

Condition: used, Year of construction: 2017, Technical details: x-travel: 560 mm y-travel: 560 mm z-travel: 660 mm control: Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds: 20 - 20.000 1/min spindle drive: 25/ 35 kW max. torque on the spindle: 86 / 130 tool taper: HSK-A63 Number of tool station: 60 diameter of tools max.: 70 mm Tool diameter with no neighbouring tools: 170 mm tool length - max.: 450 mm weight of tools max.: 12 kg numbers of pallets: 2 Pallet dimension: 400 x 400 mm max. workpiece diameter: 630 mm workpiece height max.: 900 mm table load: 400 kg rapid travel x/y/z: 60 m/min Feed x/y/z: 60 m/min internal coolant system feed: 70 bar weight of the machine ca.: 8,5 t dimensions: 3200 x 4800 x 2900 mm Accerories Rotoclear window Signal lamp 4 colours Electronic handwheel Probe for tool breakage and length measuring Coolant shower Renishaw probe (spindle) Vorbereitung / preparation only HSK cone cleaning station with brushes Bsdsyqybbopfx Aqwewt Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spindle. *

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, PERO used parts washing machine Bwodpfxeyb St Rj Aqwot
