Short run for heavy duty cardboard

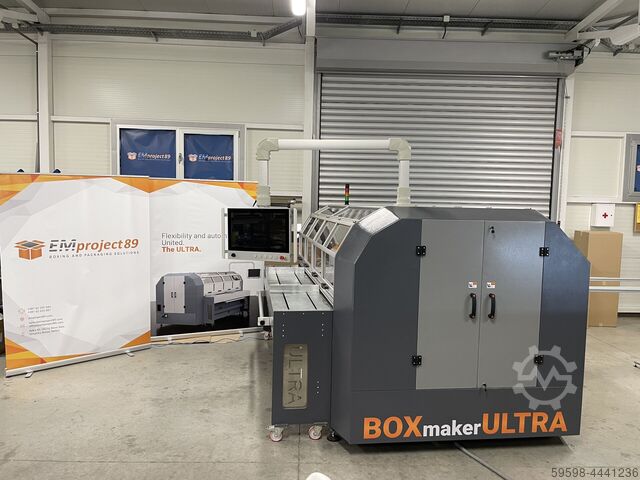

EMproject89 BOXmaker ULTRA - ON STOCK

Technical characteristics:
CAPACITY: up to 1200 boxes per hour
PULLER SPEED: up to 3m/s
INSTALLED POWER: 23 kW

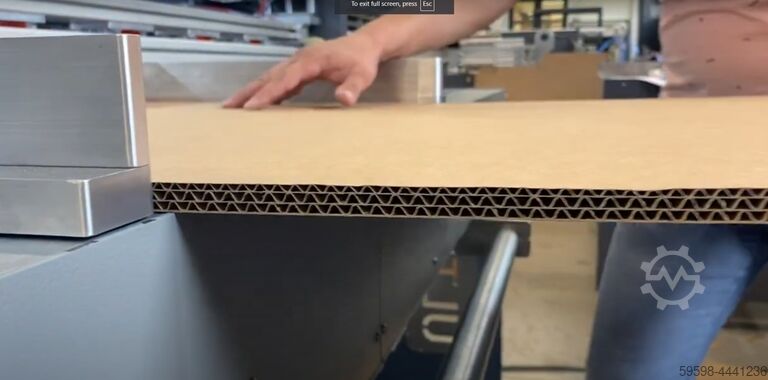

CARDBOARD TYPE: single, double and triple wall up to 14mm and 1400GSM in standard option
and HD cardboard over 2000GSM per request.
MAXIMUM BOARD SIZE: 2400mm X 7000mm
MINIMUM BOARD SIZE: 300mm width x 650mm length
DISTANCE BETWEEN SLOTTING KNIVES: 50mm – 2200mm (500mm segmented slotting knives)
WIDTH OF SLOT: 8mm

Handholder tool x 1 - The unit is positioned automatically and the distribution of cuts is also setup digitally via control unit. The total force the die cut can exert is 5200 Newton.

Creasing Wheels x 4 - The machine has four creasing wheels and it is possible to use only the selected wheels, i.e. not crease the full length of the cardboard.

Knife tool x 2 - The knives are made of high density steel alloy which allows processing 1400 GSM, and they are positioned automatically. The transversal creasing tool is integrated in the knife sub-frame. The knives are segmented and can be positioned independently from one another.

Cross cutting tool x 1 - The module is also utilized for production of pallet boxes with loading flap. The unit can produce transversal cuts anywhere on the sheet, which enables it to create box locking mechanisms, loading flaps and windows on the box. In combination with longitudinal cutting knives, square and rectangular shapes can be cut out in the sheet, effectively replacing die cutting for those forms.

Ltedpfxofivfye Ac Hja
Circular blades x 6 - This unit can perform work selectively and anywhere along the length of the corrugated sheet. The unit is utilized when producing FEFCO 0204, FEFCO 0403, glue flap or material reformatting. Also, in combination with cross cut, windows and similar square/rectangular shapes can be cut.

Printing unit x 1 - The printing unit is capable of outputting single color prints of up to 1000mm of width and 870mm in length, making it the perfect choice for standard transportation box markings. The imprint can be placed anywhere on the box, including creased areas - positioned automatically.

Gluing module unit x 1 -.. The unit is servo powered and moves at speeds up to 1m/s. The glue can be dispersed in lines or in beaded patterns anywhere along the corrugated cardboard sheet. This module is powered by NORDSON adhesive systems.

Control unit - 21 inch touch sensitive HD widescreen color display with user friendly UI. The unit itself comes with predefined FEFCO standard models in memory.

Warranty 12 months, provided training and support for services and parts.
