ENGEL

Condition: ready for operation (used), Year of construction: 2004, operating hours: 70,029 h, functionality: fully functional, machine/vehicle number: 51561, clamping force: 2,300 kN, screw diameter: 135 mm, injection pressure: 1,600 bar, opening stroke: 3,800 mm, tool height: 1,890 mm, TECHNICAL DETAILS Clamping force: 2,300 kN Platen size (H x V): 2,900 x 2,500 mm Tie bar distance (H x V): 2,000 x 1,600 mm Minimum/maximum mould height: 700 mm/1,890 mm Maximum opening stroke: 3,800 mm INJECTION UNIT Screw diameter: 135 mm Shot volume: 8,870 cm³ Shot weight (PS): 8,071 g Injection pressure: 1,600 bar MACHINE DETAILS Net weight (with control cabinet): 113 t + 18 t Kodpfxjy T Hx Hs Aarslt Operating hours: 70,029 h

Condition: ready for operation (used), Year of construction: 2011, operating hours: 61,666 h, functionality: fully functional, clamping force: 6,500 kN, screw diameter: 90 mm, column diameter: 175 mm, injection weight: 2,520 g, opening stroke: 1,400 mm, The machine is in excellent condition; all hydraulic hoses were replaced in the fourth quarter of 2024! TECHNICAL DETAILS Clamping force: 6,500 kN Column spacing (H x V): 1,100 x 960 mm Platen size (H x V): 1,510 x 1,440 mm Tool height (min./max.): 650 / 1,150 mm Opening stroke: 1,400 mm Maximum distance between platens: 2,050 mm Maximum tool weight: 11,000 kg Ejector force: 95 kN Ejector stroke: 250 mm Column diameter: 175 mm Injection unit (unit 5550) Screw diameter: 90 mm Maximum shot volume: 2,740 cm³ Maximum shot weight (PS): 2,520 g Injection pressure (max./increased): 2,180 bar Injection pressure (standard): 1,910 bar L/D ratio of the screw: 20 Screw stroke: 430 mm Maximum screw speed: 148 rpm Plasticizing volume: 77 g/s Nozzle closing force: 150 kN MACHINE DETAILS Control: CC200 Drive and Supply Installed drive power: 90 kW Cylinder heating power: 56 kW Number of heating zones: 6 Hydraulic tank capacity: 1,000 l Installed drive power: 90 kW Operating hours: 61,606 h EQUIPMENT Klodpfx Aasy T Hfyerjt Robot: Viper 40 Key features: 6 hydraulic circuits on the moving platen 2 hydraulic circuits on the fixed platen Cascade valves: 4 units (mounted on the fixed platen)

Condition: used, Year of construction: 2022, operating hours: 7,148 h, functionality: fully functional, machine/vehicle number: 252315, clamping force: 17,000 kN, screw diameter: 120 mm, displacement volume: 7,729 cm³, mold height (min.): 800 mm, ejector force: 230,000 N, ejector stroke: 300 mm, opening stroke: 2,550 mm, plate length: 2,420 mm, plate width: 2,170 mm, pressure: 2,300 bar, type of input current: three-phase, input frequency: 50 Hz, For sale is a modern and fully equipped production cell consisting of an ENGEL DUO 12060/1700 hydraulic injection molding machine and an ENGEL VIPER 60 RC300 Integrated linear robot. The machine was manufactured in 2024 and is designed for the production of large technical parts, automotive components, industrial containers, and parts with high quality requirements. ENGEL DUO 12060/1700 Injection Molding Machine Key parameters: - Clamping force: 17,000 kN (1700 tons) - Injection unit: 12060 - Screw diameter: 120 mm - Injection volume: up to 7729 cm³ - Injection pressure: up to 2300 bar - Injection rate: up to 1875 cm³/s - Opening stroke: 2550 mm - Maximum mold platen distance: 3350 mm - Platen dimensions: 2420 × 2170 mm - Drive power: 176 kW - Control system: ENGEL CC300 - Control language: Polish / English Machine equipment: - ENGEL ecodrive servo hydraulics energy-saving system - iQ weight control - iQ clamp control - iQ melt control - Autoprotect process monitoring - 92-zone mold heating control - Hydraulic and pneumatic core pulls - Ceramic heaters - Cylinder insulation - ecograph / ecobalance system - MES preparation – EUROMAP 77 / OPC UA - Complete Euromap interfaces - Extended mold cooling - Special design for the automotive industry - PL documentation - Special industrial ENGEL coating Includes ENGEL VIPER 60 RC300 Integrated robot Complete automation of production integrated with the machine. Robot parameters: Model: ENGEL VIPER 60 RC300 - Payload: up to 47 kg - Z-axis stroke: 4280 mm - X-axis stroke: 1800 mm - Y-axis stroke: 2600 mm Ksdpjy Tuhijfx Aarolt - Servo axes B and C - Full integration with CC300 - HOP C10 operator panel - Automatic lubrication - PL/EN control - FB100 conveyor belt included - Complete safety guarding

Condition: excellent (used), Year of construction: 2010, operating hours: 20,656 h, functionality: fully functional, machine/vehicle number: 174620, clamping force: 260 kN, The machine comes from toolmaking and was only used for sampling. This is why it has low operating hours and is in very good condition. Please check the documents; the order confirmation is included there. Kljdpfxexfgfzs Aarjt

Condition: good (used), Year of construction: 2007, Ref. no.: 18597 Manufacturer: ENGEL Type: insert 200 H/70 CC 200 Year of construction: 2007 Clamping unit Clamping force: 70 ton Opening stroke: 305 mm Injection unit Screw diameter: 25 mm Injection volume: 69 cm³ Shot weight: 62 g Injection pressure: 2381 bar Kledpfey Au I Uox Aaret Measurements and weight Dimensions: 4,0 x 1,8 x 2,5 m Machine weight: 5600 kg Further information: The ENGEL INSERT 200H/70 is a professional vertical injection moulding machine specially designed for insert molding and precision technical plastic applications. Built with ENGEL’s compact and robust machine concept, this model has been widely used for many years in the automotive, electronics, cable technology and technical plastics industries. One of the major advantages of this machine is its rotary table system. This design allows the operator to load inserts on one side while production continues on the other side. As a result, cycle times are reduced and production becomes safer and more efficient. This system is especially advantageous for manufacturing metal insert parts, connectors, cable components and precision technical products. Compared to conventional horizontal injection moulding machines, the ENGEL INSERT series offers a much more ergonomic and controlled process for insert placement. Thanks to the vertical clamping system, inserts remain stable inside the mould, enabling highly precise production results. The ENGEL control system used on this machine is known for stable process management and reliable operation. Its user-friendly interface allows easy handling in daily production. The machine has approximately 51,944 operating hours and was reportedly in running condition until removed from production. The overall condition of the machine is clean and well maintained. The electrical cabinet is tidy and the mechanical components appear to be in good condition. The ENGEL INSERT series is particularly suitable for: * insert molding applications * metal/plastic combination parts * electronic component production * connector and cable technology * technical plastic parts * precision industrial products With its robust mechanical construction, compact design and professional production capabilities, the ENGEL INSERT 200H/70 represents a reliable and long-lasting production solution for technical plastic manufacturers.

Condition: good (used), Year of construction: 2001, Ref. no.: 18092 Manufacturer: ENGEL Type: ES 1350H 200W / 300HL-2F Year of construction: 2001 Clamping unit Clamping force: 300 ton Opening stroke: 855 mm Klodpswm Iy Ejfx Aarot Platen size (h x v): 1050 x 650 mm Injection unit Screw diameter: 60 +35 mm Injection volume: 735 +135 cm³ Shot weight: 662 + 122 g Injection pressure: 1834 +1620 bar Measurements and weight Dimensions: 7,75 x 2,35 x 2,6 m Machine weight: 24780 kg

Condition: ready for operation (used), Year of construction: 2002, operating hours: 14,500 h, functionality: fully functional, clamping force: 2,500 kN, screw diameter: 60 mm, displacement volume: 735 cm³, injection pressure: 1,481 bar, injection weight: 662 g, mold height (min.): 250 mm, ejector stroke: 250 mm, plate length: 650 mm, plate width: 1,050 mm, installation height: 850 mm, Machine in operational condition. Includes handling robot from ENGEL. Klodjyuayrspfx Aarst

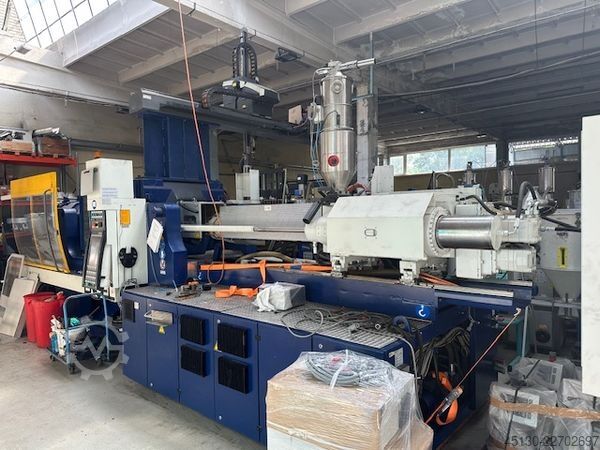

Condition: used, Year of construction: 2000, operating hours: 89,978 h, functionality: fully functional, clamping force: 4,000 kN, screw diameter: 60 mm, displacement volume: 848 cm³, injection weight: 763 g, mold height (min.): 350 mm, opening stroke: 950 mm, plate width: 1,300 mm, plate height: 1,080 mm, installation height: 950 mm, Engel ES 2050/350 HL-V machine immediately available. Machine can be inspected in operation. Includes handling robot. Equipped with 2 DS core pulls, 6 integrated heating zones, and 1 air valve. Kjdpox Ex Azjfx Aarelt

Condition: good (used), Year of construction: 2005, operating hours: 50,932 h, functionality: fully functional, clamping force: 1,200 kN, screw diameter: 45 mm, displacement volume: 318 cm³, injection weight: 250 g, mold height (min.): 300 mm, opening stroke: 500 mm, plate width: 740 mm, plate height: 470 mm, Engel VC 650/120 TECH machine in good condition. Currently not connected to power, was in production until 04/25. 1 core puller AS, 12 integrated hot runner zones, without robot. Inspection possible at any time. Ksdpfx Aajx Ex Htsrelt

Condition: excellent (used), Year of construction: 2015, ENGEL victory 650/120 tech (25.109 h) (S&P 3793) Manufacture year: 2015 Operating hours: 25,109 Stunden Screw: 35 mm Injection pressure: 2400 bar Stroke volume: 192 cm³ Kljdpfx Aasy Sz Ndorjt Clamping Force: 120 t Tie bar distance: 740 x 680 mm Mould installation height min.: 300 mm Plate distance max.: 800 mm Dimensions: 5100 x 1500 x 2350 mm Eeight: 7000 kg Connected load: 22 kW Automatic door, Corepuller 1x, Airvalve, Hotrunner, price when new 122.000,- € etc... Price: on request contact: Mr. Ralf Schulz
