Hydr. pressbrake

ERMAK CNC AP 37.220

pressure 220 t
chamfer lenght 3720 mm
distance between columns 3020 mm
column arm 400 mm
ajustment speed 125 mm/sec
working feed 10.0 mm/sec
return speed 132 mm/sec
back stop - adjustable 800 mm
stroke 275 mm
dayligth 550 mm
Godpfx Asxfwc Dja Iett
table height 900 mm
oil volume 300 ltr.
total power requirement 18.5 kW
weight of the machine ca. 12800 kg.
range L-W-H 5850 x 2220 x 2820 mm

- in checked conditions - machinevideo -
?v=d-ZVBtFsjI4

Features:

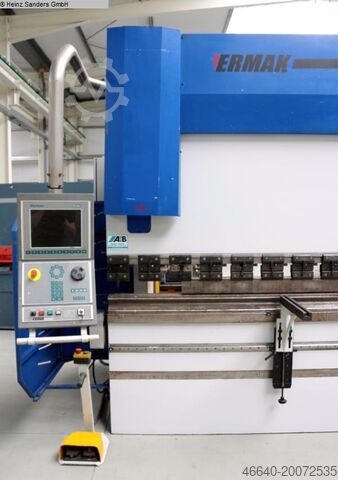

- Electro-hydraulic CNC press brake
- With DELEM CNC control model DA 66W
* 2D graphic programming
* Automatic bend sequence calculation and collision detection
* High-quality color LCD screen (TFT)
- Swivel control panel, front left
- CNC-controlled axes: Y1 + Y2 + X + R + crowning
- CNC electric motor-driven backgauge (X axis)
- CNC electric motor height adjustment of the backgauge (R axis)
- CNC electric motor-driven bending table crowning
- 2x manually adjustable stop fingers

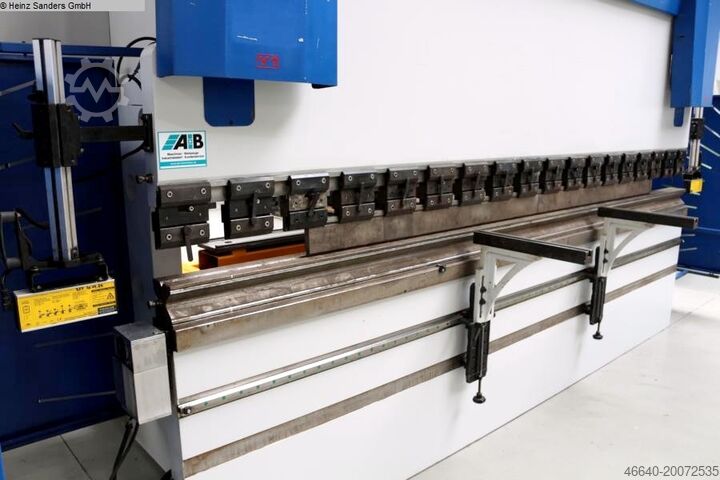

- AMADA/PROMECAM upper tool holder
- 1x reversible MULTI-V die block
- 2x front sliding support arms (“sliding” system)
- Side guard
* Swivel doors + FIESSLER laser safety device
- Rear safety device (light barrier)
- 1x freely movable foot control
- Original operating instructions

* Special accessories included in delivery:
- 1x NEW complete upper tool set - split (currently not installed)
* ROLLERI PS.135.85.R08
* Height 135 mm / 85 degrees / R 0.8 mm
