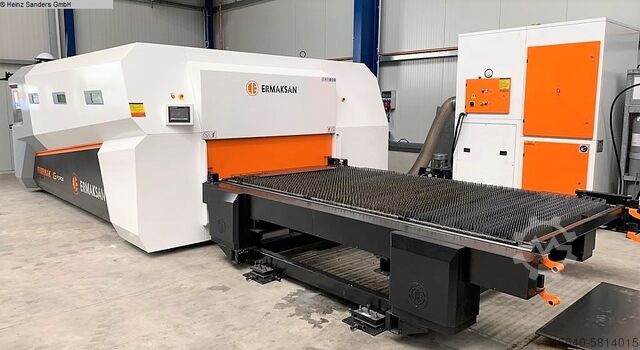

Laser Cutting Machine

ERMAK FIBERMAK SM 6000.3 x 1,5

table length 3000 mm
table width 1500 mm
burner heads Precitec ProCutter
laser capacity in Watt 6000
x-axis 3050 mm
z-axis 150 mm
y-axis 1550 mm
total power requirement 21 kW
dimensions 9190 x 3710 x 2200 mm
weight of the machine ca. 11200 kg


Bedsgvq D Uspfx Abmjlp

Furnishing:
- Resonator Ytterbium YLS 4000 compact
- Beckhoff controller
- Precitec ProCutter Automatic cutting head
- autom. Lubrication system

- CAD / CAM software LANTEK EXPERT CUT
- 17 "touchscreen, keyboard, control panel
- Collective conveyor under the cutting table
- additional loading unit

Cutting capacities:
- normal steel 25 mm
- stainless steel 15 mm
- aluminum 12 mm
- brass 8 mm
- copper 8 mm

Axes:
- Machine axes: 4 axes (X, Y, Z, U)
- s speed: 100 m / min (simulated)
- Axis speed X / Y: 100 m / min (single)
- Positioning accuracy: + - 0.03 mm / min
- Burning height: 125 - 200 mm

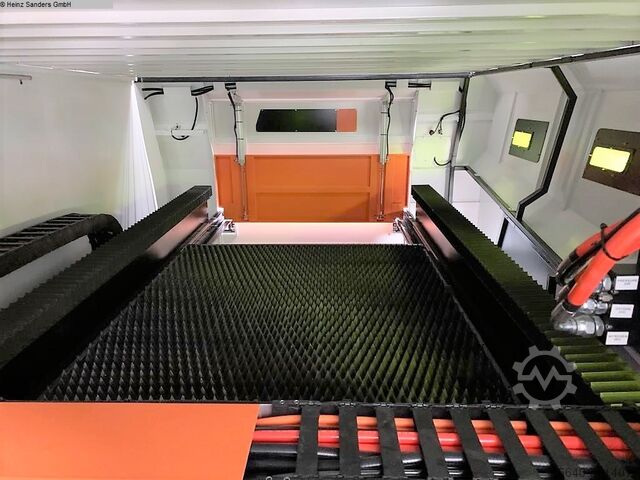

Loading table:
- Number of pieces 2 (35 seconds for changing)
- automatic change of tables
- d 2,500 kg.

assisting gases:
- mild steel - oxygen (0.5 - 25 bar)
- stainless steel - nitrogen (0.5 - 25 bar)
- Aluminum - compressed air or nitrogen (0.5 - 25 bar)

including:
- Compatible suction system
- Sick light barrier safety device
- Spare part basic supply package

Why Fibermak?
- Up to 3 times faster cutting compared to other laser technologies
- Machines for cutting thin sheets
- axes equipped with linear motors /
Servo motors reach up to 141 m / min.
- Accelerations up to 2G
- Fiber laser is the green laser technology
(Saving of at least 50% energy costs)
- There is no need for laser gas mixing
- There is no need for optical
Components / therefore very low-maintenance
- Save up to 50% per part through more efficient production
- Extended options: cutting from
reflective materials
like aluminum, copper, brass etc.,
- In addition, precise cuts and smooth surface quality
- Heavy-duty constructed frame, equipped
with world-famous, durable, high-quality components
- ERMAK passes the price advantage on to its customers
thanks to its fast and high quality production
- Creative design, constant, highest technology and quality
- High reliability
- High efficiency
- High quality
- CE declaration
