Laser cutting machine

Ermak

Condition: used, Year of construction: 2013, pressure 320 t chamfer lenght 4100 mm distance between columns 3600 mm column arm 410 mm ram stroke speed 140 mm/sec work speed 10,5 mm/sec return speed 150 mm/sec work stroke 375 mm dayligth 650 mm table height 900 mm table width 220 mm oil volume 400 ltr. voltage 380 Volt total power requirement 30.0 kW weight 21300 kg Dsdpfx Aez I Dz Asdrecn range L-W-H 5350 x 2450 x 3150 mm Features: - DELEM DA66T CNC control system - CNC-controlled axes: Y1, Y2, X, R, Z1, and Z2, as well as CNC crowning - FIESSLER AKAS laser safety device in front of the machine (including FPSC) - Rear safety device: light barrier - BOSCH/HOERBIGER hydraulic components - SIEMENS electrical components - 2 front support arms - 1 freely movable dual foot control - Upper and lower tools

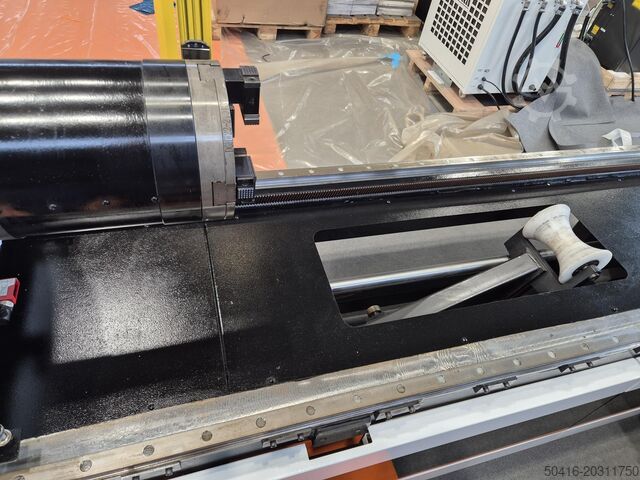

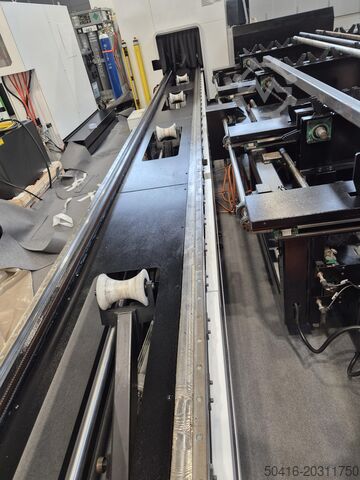

Condition: new, neu ca. 12 Wochen ab Auftrags Türkei 160788 € 3038.89 € 3 kW 12 mm 6 mm 6 mm 3 mm 6 mm 26,5 kW 250 mm 16 mm 160 x 160 mm 200 x 150 mm 6000 mm 58 kg/m +/- 0,2 mm +/- 0,05 mm rund, quadratisch, rechte 40 m/min 94 m/min 30 m/min 510 °/s The machine consists of the following components: - Encapsulated cutting room with protective glazing - CNC graphic control with touchscreen - Laser source Brilase 3 kW Premium incl. chiller - Cutting head with automatic focus adjustment - manual loading -manual unloading table 3 m - Positioning laser - Central lubrication - slug car - CAD/CAM software with autonesting Dcsdpfewiqr Ajx Adrjn - Work area lighting PRICE FCA TÜRKIYE OPTIONS: Suction unit with filters Semi-automatic loading system Manual unloading table 6 m with conveyer Durma cloud license Lasersources with 4 or 6 kW on request

Condition: good (used), Year of construction: 2009, operating hours: 899 h, machine/vehicle number: SN20090545, punching force: 30 t, sheet thickness (max.): 6 mm, table length: 2,000 mm, table width: 1,270 mm, overall weight: 11,000 kg, working range: 40 mm, ERMAK RPP 1270x30 Ton Punching Machine, Year 2009 Brand: Ermak Model: RPP 1270x30 Serial Number: SN20090545 Year: 2009 Main Features: Operating Hours: - POWER ON Hours: 899 hours Dcodev S Ufyjpfx Adren - Punching Hours: 1 hour 6 minutes - Punching Force: 30 tons - Maximum Capacity: - Sheet Thickness: 6 mm - Sheet Dimensions: 1270 mm (width) x 2000 mm (length) - Travel: 40 mm - Axis Travels: - X-axis: 2000 mm - Y-axis: 1270 mm - Travel speed: - X-axis: 70 m/min. - Y-axis: 70 m/min. - C-axis speed: 100 rpm. - Strokes per minute: Up to 700. - Accuracy: - Positioning: ±0.03 mm - Position tolerance: ±0.1 mm - Numerical control (CNC): GE Fanuc 18i-PB - Oil capacity: 300 liters. - Power: 15 kW - Machine dimensions: - Length: 4250 mm. - Width: 4000 mm. - Height: 2330 mm. - Weight: 11,000 kg.

Condition: good (used), Year of construction: 2016, functionality: fully functional, power: 5.5 kW (7.48 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, pressing force: 40 t, stroke length: 170 mm, operating speed: 10 mm/s, reverse speed: 170 mm/s, table width: 90 mm, table length: 1,270 mm, table height: 850 mm, throat depth: 350 mm, clearance between the columns: 1,050 mm, oil tank capacity: 80 l, total length: 2,150 mm, total width: 1,650 mm, total height: 2,300 mm, overall weight: 3,250 kg, year of last overhaul: 2025, Equipment: CE marking, safety light barrier, 2016 Ermaksan Speed-Bend Pro 1270 x 40 CNC Press Brake – 6 Axis – Delem DA-66T Control Used 2016 Ermaksan Speed-Bend Pro 1270 x 40 CNC hydraulic press brake for sale in Ireland. 6-axis CNC press brake with Delem DA-66T graphic control, Y1, Y2, X, R, Z1 and Z2 axes, tooling, laser guards. Manufacturer: Ermaksan Model: Speed-Bend(SB) Pro 1270 x 40 Dcodpfxjzdak Ae Adren Axes: 6 Year: 2016 Capacity: 1270mm x 40T Control: Delem DA66T Description 2016 Ermaksan Speed-Bend Pro 1270 x 40 CNC Press Brake, a compact, high-quality 6-axis CNC hydraulic press brake ideal for precision sheet metal bending, fabrication workshops, engineering companies and production environments. This Ermaksan Speed-Bend Pro 1270 x 40 offers a bending length of 1270 mm and a bending power of 40 tonnes. It is fitted with a Delem DA-66T graphic CNC control, providing a clear touch-screen interface for accurate programming, bend sequence calculation, tooling setup and repeatable production bending. The machine is in good condition. It comes complete with Euro-style top and bottom press brake tooling, laser guards, foot pedal, quick-release top tool clamps and rear safety doors, making it a well-equipped used press brake ready for immediate inspection and production use. This is a superb opportunity to purchase a late-model, compact Ermaksan CNC press brake with a desirable 6-axis specification, ideal for companies looking for a reliable used hydraulic press brake in Ireland, the UK or Europe. Key Features Manufacturer: Ermaksan Model: Speed-Bend Pro 1270 x 40 / SB PRO 1270-40 Year: 2016 Type: CNC hydraulic press brake Bending length: 1270 mm Bending power: 40 tonnes Axis configuration: 6 Axis CNC controlled axes: Y1, Y2, X, R, Z1 and Z2 Control: Delem DA-66T Graphic CNC Control Condition: Good condition Tooling: Complete with Euro-style top and bottom tools Safety: Laser guards and rear safety doors Clamping: Quick-release top tool clamps Includes: Foot pedal Suitable for: Sheet metal fabrication, precision bending, general engineering, subcontract fabrication and production bending Technical Specifications – SB PRO 1270-40Model: SB PRO 1270-40 Bending length: 1270 mm Bending power: 40 tonnes Distance between columns: 1050 mm Y-axis rapid speed: 140 mm/s Y-axis working speed: 10 mm/s Y-axis return speed: 170 mm/s X-axis travel: 500 mm X-axis speed: 500 mm/s R-axis travel: 250 mm R-axis speed: 350 mm/s Z1 / Z2-axis travel speed: 1000 mm/s Backgauge finger blocks: 2 Oil capacity: 80 litres Motor power: 5.5 kW Stroke: 170 mm Daylight: 387 mm Throat depth: 350 mm Table height: 850 mm Table width: 90 mm Machine Dimensions: 2150 x 1650 x 2300mm Machine weight: 3250 kg Standard / Included Equipment This used Ermaksan Speed-Bend Pro press brake is supplied with: 6 CNC axes: Y1, Y2, X, R, Z1 and Z2 Delem DA-66T graphic CNC control Euro-style top press brake tools Euro-style bottom press brake tools Laser safety guards Foot pedal Quick-release top tool clamps Rear safety doors Backgauge finger blocks Sheet support arms Notes: *Specifications are given in good faith but not guaranteed*

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, power: 15 kW (20.39 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, pressing force: 175 t, stroke length: 275 mm, operating speed: 12 mm/s, reverse speed: 190 mm/s, table length: 3,100 mm, table height: 900 mm, throat depth: 410 mm, distance table to ram: 550 mm, clearance between the columns: 2,600 mm, oil tank capacity: 300 l, total length: 5,025 mm, total width: 2,150 mm, total height: 2,680 mm, overall weight: 9,086 kg, Equipment: CE marking, documentation/manual, safety light barrier, 2022 Ermaksan Speed-Bend PRO 3100x175 CNC Press Brake 2022 Ermaksan Speed-Bend PRO 3100x175 CNC press brake in very good condition. 175T x 3100mm, 6 axis, Delem DA66TX, CNC crowning, laser guards, generous tooling package included. Machine Manufacturer: Ermaksan Model: Speed Bend Pro 3100 x 175T Machine Type: 6 Axis CNC Pressbrake Capacity: 3100 x 175T Year: 2022 Control: Delem DA66TX Condition: Very Good Description Ermaksan Speed-Bend Pro 6 Axis CNC Hydraulic Press Brake with Delem DA66TX Control. Available now, this 2022 Ermaksan Speed-Bend PRO 3100x175 CNC Press Brake is a high-quality, modern hydraulic press brake in very good condition. This is a 6 axis machine with Y1, Y2, X, R, Z1 and Z2 axes, fitted with a Delem DA66TX CNC control, pneumatic top tool clamping, CNC crowning, laser guards, wanderer type foot pedal, and supplied with generous selection of top and bottom tooling. Ideal for sheet metal fabrication, precision bending, stainless steel work, mild steel fabrication, aluminium bending, agricultural fabrication, general engineering and production workshops. Key Features 2022 Ermaksan Speed-Bend PRO 3100x175 175 tonne bending capacity 3100mm bending length 6 axis CNC press brake Y1, Y2, X, R, Z1 & Z2 axes Delem DA66TX CNC control Pneumatic top tool clamping Package of Top and bottom tooling included CNC / motorised crowning Laser safety guards Wanderer type foot pedal Very good condition Dcedpfx Asz Dn Hujdrjn Excellent machine for fabrication and production bending work Capacity & Main Machine Data Manufacturer: Ermaksan Model: Speed-Bend PRO 3100x175 Year: 2022 Machine Type: CNC hydraulic press brake Bending Length: 3100mm Bending Force: 175 tonnes Distance Between Columns: 2600mm Axes: Y1, Y2, X, R, Z1, Z2 Crowning: Motorised / CNC crowning Backgauge Finger Blocks: 2 Speeds & Axis Travel Y Rapid Speed: 180mm/s Y Working Speed: 12mm/s Y Return Speed: 190mm/s X Axis Travel: 800mm X Axis Speed: 500mm/s R Axis Travel: 250mm R Axis Speed: 350mm/s Z1 / Z2 Axis Travel Speed: 1000mm/s Stroke, Daylight & Frame Stroke: 275mm Daylight: 550mm Throat Depth: 410mm Table Height: 900mm Table Width: 90mm Power, Size & Weight Oil Capacity: 300 litres Motor Power: 15kW Approx. Length: 5025mm Approx. Height: 2680mm Approx. Width: 2150mm Approx. Weight: 9086kg Delem DA66TX CNC Control Control Features Include 2D graphical touch-screen programming High-resolution colour TFT display Automatic bend sequence calculation Collision detection 3D machine setup with multiple tool stations USB / peripheral interfacing Product and tool memory Profile-TL offline software support User-friendly Delem touch navigation Delem’s DA-66T platform is listed by Delem as a 2D graphical press brake control with automatic bend sequence calculation, collision detection, full 3D machine setup, USB interfacing, 17" high-resolution colour TFT display and Profile-TL offline software support. Included Equipment Pneumatic top tool clamping Lots of Top tooling Lots of Bottom tooling CNC crowning Laser guards Wanderer type foot pedal 6 axis CNC backgauge system Delem DA66TX control Typical Applications Sheet metal fabrication CNC press brake bending Mild steel bending Stainless steel bending Aluminium bending Box and pan type components Architectural metalwork Agricultural fabrication General engineering workshops Production bending work

Condition: ready for operation (used), Year of construction: 2021, operating hours: 6,274 h, pressing force: 6 t, total height: 2,580 mm, controller manufacturer: DELEM, controller model: DA-66T, product length (max.): 2,100 mm, number of axes: 6, This 6-axis ERMAKSAN Speed-Bend Pro 1270x60 was manufactured in 2021. It features a bending force of 60 t and a bending length of 1270 mm. The CNC-controlled backgauge includes X-axis travel of 500 mm and R-axis travel of 250 mm, ensuring precise operations. If you are looking to get high-quality bending capabilities, consider the ERMAKSAN Speed-Bend Pro 1270x60 press brake we have for sale. Contact us for further details. • CNC axes: Y1, Y2, X, R, Z1, Z2 • Bending unit: • Max. approach speed: 160 mm/s • CNC backgauge: • CNC-controlled axes: X, R, Z1, Z2 • X-axis travel: 500 mm • X-axis speed: 500 mm/s • R-axis travel: 250 mm • R-axis speed: 350 mm/s Dsdpjz A Aa Tefx Adrscn • Servo-motorized CNC backgauge • X-axis servo motor with ball-screw drive • Z1 and Z2 CNC-controlled backgauge fingers • Backgauge positioning accuracy: up to 0.05 mm • Safety: • Side safety guards • Safety system for bending area • Tooling style: Amada (Promecam) • Electrical: • Main motor power: 7.5 kW • Power supply: 400 V, 3-phase, 50 Hz • Nominal current: 18 A • Control voltage: 24 V Additional equipment • Segmented upper punch tooling • Multi-V lower die • Front sheet support table / support arms • Foot pedal control Technical Specification Bending Length 1270 mm

Condition: good (used), Year of construction: 2004, Well-maintained, used press brake from Ermaksan. Dsdpfx Adez Aihmorjcn Type: AP 2600 80 Capacity: 2600 x 80 tons NC control Includes a set of tooling.

Condition: like new (used), Year of construction: 2020, Like new press brake from Ermaksan Type: Power-Bend Pro 3100 135 Capacity: 3100 x 135 tons Delem DA56s CNC control Y1, Y2, and X axes CNC controlled Akas Fiessler laser safety system Amada/Euro clamping system Dedpfjzunlhox Adrscn Manual crowning Includes a set of tooling

Condition: good (used), Year of construction: 2003, Used 2.5 meter press brake from Ermaksan Model: AP 2600 60 Capacity: 2600 x 60 tons Dsdoyykkmjpfx Adrjcn Elgo NC control 1 set of tools Year of manufacture: 2003

Condition: used, Year of construction: 2005, Used 3.6-meter CNC press brake by Ermaksan Type: AP 3600 x 200 Dsdpfx Ajzh Icysdrecn Capacity: 3600 x 200 tons Elgo NC control system 1 set of tooling Year of manufacture: 2005

Condition: ready for operation (used), Year of construction: 2010, pressure 40.0 t chamfer lenght 1270 mm distance between columns 1000 mm column arm 200 mm stroke 100 mm dayligth 308 mm ajustment speed 150 mm/sec working feed 1-10 mm/sec return speed 100 mm/sec table width 100 mm table height 900 mm control DNC 60 PS oil volume 100 l voltage 400 V total power requirement 5.5 kW weight of the machine ca. 2750 kg - in checked conditions - machinevideo - ?v=WRzqKruFUvY Equipment: - CNC electro-hydraulic press brake - CYBELEC "DNC 60 PS" CNC control * Swiveling control panel, front left * Tool & program library - CNC electro-motorized backgauge (X-axis) * X-axis travel = 800 mm * 2x manually adjustable backgauge fingers (R+Z axes) * Backgauge on ball screws - CNC controlled axes Y1 - Y2 - X - Rehfuß upper tool system "A" with quick-change clamping Dodpfex Emqtex Adrjcn * Additional crowning device in the tool holder - 4V universal die block with 60 mm die shoe - 2x sliding material/support arms ("Sliding System") - BOSCH/HOERBIGER hydraulic system - SIEMENS electrical system - Light barrier behind the machine - FIESSLER AKAS laser safety device in front of the machine - 1x freely movable Double Foot Switch - Operating Instructions (PDF)
