Press brake

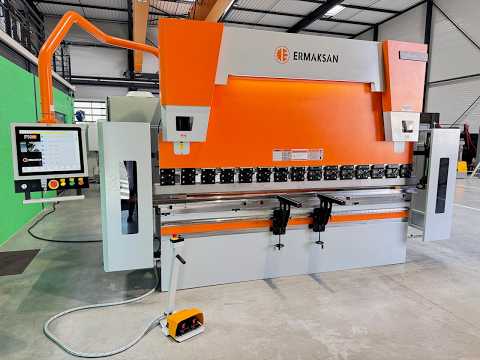

Ermak SPEEDBEND PRO

Condition: used, Year of construction: 2022, total length: 5,020 mm, total width: 2,150 mm, total height: 2,680 mm, Colour: White Weight: 9.100 kg Price: On request - Year: 2022 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 00030430-ERH - Drive system: CNC - Control system brand: Delem - Control system type: DA-66T - Power [kW]: 15.0 - Number of axes [pcs]: 6: Y1+Y2+X+R+Z1+Z2 - Press force [ton]: 175 - Max. working width [mm]: 3100 - Column gap [mm]: 2550 - Backgauge depth [mm]: 750 - Crowning system: CNC-controlled - Punch holder: Quick-release - Tool holder type: European-style - Tools included: Yes - Options: Finger safety guard - Transport dimensions: 5025mm x 2150mm x 2680mm (l x w x h) - Transport weight [kg]: 9100kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Bodpfx Aezkki Ujqwewt Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 2019, pressure 60.0 t chamfer lenght 1270 mm distance between columns 1000 mm column arm 410 mm ram stroke speed 160 mm/sec work speed 10.0 mm/sec return speed 165 mm/sec work stroke 275 mm dayligth 530 mm table height 900 mm table width 90.0 mm back stop - adjustable 500 mm control DA 66T oil volume 150 ltr. voltage 380 V engine output 7.5 kW Weight 4320 kg range L-W-H 2250 x 1960 x 2750 mm current new price approx. 65.000 euros very rarely used! Special price on request - in checked condition - machine video - ?v=KRifrqTgkVU ----- SPEED BEND PRO CNC press brake: * increased installation height * increased cylinder stroke * and increased bending beam speeds ----- Equipment: - CNC electro-hydraulic press brake - DELEM CNC control model "DA-66T" graphics/touchscreen * 2D graphic touchscreen programming mode * 3D representation in simulation and production * 17" color TFT screen with high resolution * Bending sequence calculation * Product programming and representation in actual size * USB interface - CNC controlled axes: Y1 - Y2 - X - R - CNC electro-motorized back stop (X axis) * on ball screws * Travel path .. 500 mm * Travel speed .. 500 mm/s * with 2x manually adjustable stop fingers - CNC electro-motor height adjustment (R axis) * Travel path .. 250 mm * Travel speed .. 350 mm/s - AMADA/PROMECAM upper tool holder * including clamping jaws with upper wedge camber * 1x ROLLERI split set 60° upper tool - AMADA/PROMECAM lower tool holder * including 1x die shoe "C 1050-R" * 1x AMADA 1-V die 85° Bodpfx Aezlulpjqwjwt - Safety device at the rear (door including safety switch) - BOSCH/HOERBIGER hydraulic components - SIEMENS electrical components - FIESSLER AKAS laser protection device in front of the machine - 2x front support arms with SLIDING system (HIWIN plain bearings) - 1x freely movable double foot control - CE mark / Declaration of conformity - Operating instructions including circuit and hydraulic diagram

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, operating hours: 8,451 h, power: 5.5 kW (7.48 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, pressing force: 40 t, stroke length: 170 mm, operating speed: 10 mm/s, reverse speed: 170 mm/s, table width: 90 mm, table length: 1,270 mm, table height: 850 mm, throat depth: 350 mm, clearance between the columns: 1,050 mm, oil tank capacity: 80 l, total length: 2,150 mm, total width: 1,650 mm, total height: 2,300 mm, overall weight: 3,250 kg, year of last overhaul: 2025, Equipment: CE marking, documentation/manual, safety light barrier, 2016 Ermaksan Speed-Bend Pro 1270 x 40 CNC Press Brake – 6 Axis – Delem DA-66Te Control Used 2016 Ermaksan Speed-Bend Pro 1270 x 40 CNC hydraulic press brake for sale in Ireland. 6-axis CNC press brake with Delem DA-66Te graphic control, Y1, Y2, X, R, Z1 and Z2 axes, tooling, laser guards and only 8,451 hours. Manufacturer: Ermaksan Model: Speed-Bend(SB) Pro 1270 x 40 Axes: 6 Year: 2016 Capacity: 1270mm x 40T Control: Delem DA66Te Description 2016 Ermaksan Speed-Bend Pro 1270 x 40 CNC Press Brake, a compact, high-quality 6-axis CNC hydraulic press brake ideal for precision sheet metal bending, fabrication workshops, engineering companies and production environments. This Ermaksan Speed-Bend Pro 1270 x 40 offers a bending length of 1270 mm and a bending power of 40 tonnes. It is fitted with a Delem DA-66Te graphic CNC control, providing a clear touch-screen interface for accurate programming, bend sequence calculation, tooling setup and repeatable production bending. The machine is in very good condition and has completed only 8,451 hours. It comes complete with Euro-style top and bottom press brake tooling, laser guards, foot pedal, quick-release top tool clamps and rear safety doors, making it a well-equipped used press brake ready for immediate inspection and production use. This is a superb opportunity to purchase a late-model, compact Ermaksan CNC press brake with a desirable 6-axis specification, ideal for companies looking for a reliable used hydraulic press brake in Ireland, the UK or Europe. Key Features Manufacturer: Ermaksan Model: Speed-Bend Pro 1270 x 40 / SB PRO 1270-40 Year: 2016 Type: CNC hydraulic press brake Bending length: 1270 mm Bending power: 40 tonnes Axis configuration: 6 Axis CNC controlled axes: Y1, Y2, X, R, Z1 and Z2 Control: Delem DA-66Te Graphic CNC Control Hours: Only 8,451 hours Condition: Very good condition Tooling: Complete with Euro-style top and bottom tools Safety: Laser guards and rear safety doors Clamping: Quick-release top tool clamps Includes: Foot pedal Suitable for: Sheet metal fabrication, precision bending, general engineering, subcontract fabrication and production bending Technical Specifications – SB PRO 1270-40Model: SB PRO 1270-40 Bending length: 1270 mm Bending power: 40 tonnes Distance between columns: 1050 mm Y-axis rapid speed: 140 mm/s Y-axis working speed: 10 mm/s Y-axis return speed: 170 mm/s X-axis travel: 500 mm X-axis speed: 500 mm/s R-axis travel: 250 mm R-axis speed: 350 mm/s Z1 / Z2-axis travel speed: 1000 mm/s Backgauge finger blocks: 2 Oil capacity: 80 litres Motor power: 5.5 kW Stroke: 170 mm Daylight: 387 mm Throat depth: 350 mm Table height: 850 mm Table width: 90 mm Machine Dimensions: 2150 x 1650 x 2300mm Machine weight: 3250 kg Standard / Included Equipment This used Ermaksan Speed-Bend Pro press brake is supplied with: 6 CNC axes: Y1, Y2, X, R, Z1 and Z2 Bwodpfozdak Asx Aqwst Delem DA-66Te graphic CNC control Euro-style top press brake tools Euro-style bottom press brake tools Laser safety guards Foot pedal Quick-release top tool clamps Rear safety doors Backgauge finger blocks Sheet support arms Notes: *Specifications are given in good faith but not guaranteed*

Condition: new, pressure 220 t chamfer lenght 4100 mm distance between columns 3600 mm column arm 410 mm ram stroke speed 180 mm/sec work speed 10.0 mm/sec return speed 185 mm/sec work stroke 275 mm dayligth 550 mm table height 900 mm table width 160 mm back stop - adjustable max. 800 mm oil volume 300 ltr. voltage 400 Volt total power requirement 18.5 kW weight 14000 kg range L-W-H 5150 x 2250 x 3000 mm ----- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection ----- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool Roleri 135.85.R08, "System A" - with additional crowning of the upper wedge - Universal die block - LEUZE light barrier behind d. machine - BOSCH / HOERBIGER hydr. Components - SIEMENS - electrical system - FIESSLER AKAS laser protection device in front of the machine (including FPSC) - 2 front support arms with SLIDING system (plain bearings) - Double foot operation - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes Bodpoxaawyjfx Aqwowt Special equipment including: - electrical central lubrication

Condition: new, pressure 400 t chamfer lenght 4100 mm distance between columns 3550 mm column arm 510 mm ram stroke speed 110 mm/sec work speed 8.4 mm/sec return speed 130 mm/sec work stroke 375 mm dayligth 650 mm table height 1000 mm table width 240 mm back stop - adjustable max. 800 mm oil volume 400 ltr. voltage 400 Volt total power requirement 30.0 kW weight 26409 kg range L-W-H 5450 x 2650 x 3470 mm ----- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection ----- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool Roleri 135.85.R08, "System A" - with additional crowning of the upper wedge Bedpfxoxaadtj Aqwewt - Universal die block - LEUZE light barrier behind d. machine - BOSCH / HOERBIGER hydr. Components - SIEMENS - electrical system - FIESSLER AKAS laser protection device in front of the machine (including FPSC) - 2 front support arms with SLIDING system (plain bearings) - Double foot operation - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes Special equipment including: - electrical central lubrication

Condition: new, pressure 320 t chamfer lenght 4100 mm distance between columns 3600 mm column arm 410 mm ram stroke speed 140 mm/sec work speed 10.5 mm/sec return speed 150 mm/sec work stroke 375 mm dayligth 650 mm table height 900 mm table width 220 mm oil volume 400 ltr. voltage 400 Volt total power requirement 30.0 kW weight 22064 kg Dimensions (HxWxD) 5350 x 2450 x 3150 mm ----- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection ----- Furnishing: - DELEM CNC control model DA 66T Bsdpfx Aoxaba Neqwjwt - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool Roleri 135.85.R08, "System A" - with additional crowning of the upper wedge - Universal die block - LEUZE light barrier behind d. machine - BOSCH / HOERBIGER hydr. Components - SIEMENS - electrical system - FIESSLER AKAS laser protection device in front of the machine (including FPSC) - 2 front support arms with SLIDING system (plain bearings) - Double foot operation - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes Special equipment including: - electrical central lubrication

Condition: new, pressure 320 t chamfer lenght 3100 mm distance between columns 2600 mm column arm 410 mm ram stroke speed 140 mm/sec work speed 10.5 mm/sec return speed 150 mm/sec work stroke 375 mm dayligth 650 mm table height 900 mm table width 240 mm oil volume 400 ltr. voltage 400 Volt total power requirement 30.0 kW weight 17082 kg Dimensions (HxWxD) 4550 x 2450 x 3200 mm ----- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection ----- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool Roleri 135.85.R08, "System A" - with additional crowning of the upper wedge - Universal die block - LEUZE light barrier behind d. machine - BOSCH / HOERBIGER hydr. Components - SIEMENS - electrical system Bedpfx Aqsxabdzowowt - FIESSLER AKAS laser protection device in front of the machine (including FPSC) - 2 front support arms with SLIDING system (plain bearings) - Double foot operation - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes Special equipment including: - electrical central lubrication

Condition: new, pressure 220 t chamfer lenght 3100 mm distance between columns 2600 mm column arm 410 mm ram stroke speed 180 mm/sec work speed 10.0 mm/sec return speed 185 mm/sec work stroke 275 mm dayligth 550 mm table height 930 mm table width 200 mm oil volume 300 ltr. voltage 400 Volt total power requirement 18.5 kW weight 11286 kg Dimensions (HxWxD) 4550 x 2250 x 2850 mm ----- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection ----- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool Roleri 135.85.R08, "System A" - with additional crowning of the upper wedge - Universal die block - LEUZE light barrier behind d. machine - BOSCH / HOERBIGER hydr. Components Bwodpfx Aqoxaag Iewst - SIEMENS - electrical system - FIESSLER AKAS laser protection device in front of the machine (including FPSC) - 2 front support arms with SLIDING system (plain bearings) - Double foot operation - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes

Condition: new, pressure 175 t chamfer lenght 4100 mm distance between columns 3600 mm column arm 410 mm ram stroke speed 180 mm/sec work speed 12.0 mm/sec return speed 190 mm/sec work stroke 275 mm dayligth 550 mm oil volume 300 ltr. table height 900 mm table width 90.0 mm voltage 400 Volt total power requirement 15.0 kW weight 12100 kg range L-W-H 5.100x2.150x2.850 mm ----- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection ----- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool Roleri 135.85.R08, "System A" - with additional crowning of the upper wedge - Split universal die block M 460 R, including die shoe C 1050-R - LEUZE light barrier behind d. machine - BOSCH / HOERBIGER hydr. Components Bodjxaah Sspfx Aqwowt - SIEMENS - electrical system - FIESSLER AKAS laser protection device in front of the machine (including FPSC) - 2 front support arms with SLIDING system (plain bearings) - Double foot operation - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes

Condition: new, pressure 135 t chamfer lenght 4100 mm distance between columns 3600 mm column arm 410 mm ram stroke speed 200 mm/sec work speed 12.0 mm/sec return speed 190 mm/sec work stroke 275 mm dayligth 550 mm table height 900 mm oil volume 300 ltr. voltage 400 Volt total power requirement 15.0 kW weight 10800 kg range L-W-H 5100 x 2100 x 2850 mm ----- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection ----- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit Bedpfx Aqjxaa U Ejwjwt - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool Roleri 135.85.R08, "System A" - with additional crowning of the upper wedge - Split universal die block M 460 R, including die shoe C 1050-R - LEUZE light barrier behind d. machine - BOSCH / HOERBIGER hydr. Components - SIEMENS - electrical system - FIESSLER AKAS laser protection device in front of the machine (including FPSC) - 2 front support arms with SLIDING system (plain bearings) - Double foot operation - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes Special equipment including: - electrical central lubrication
