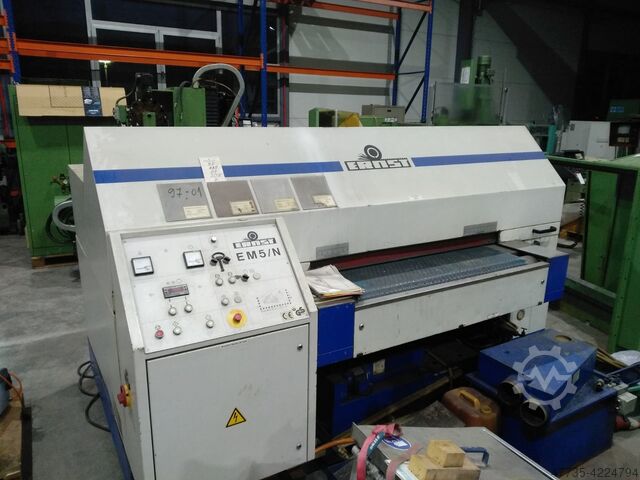

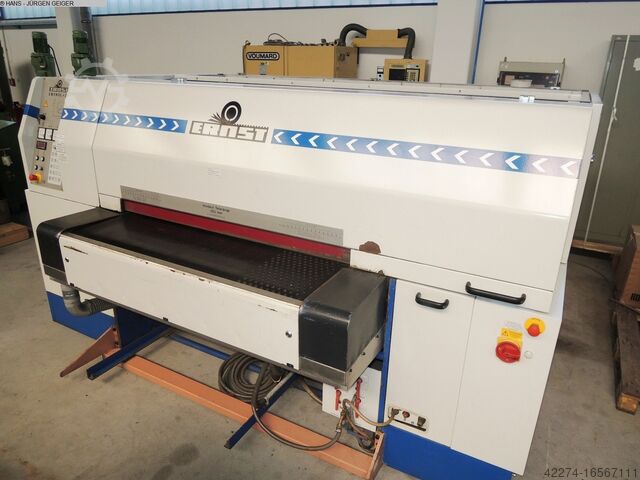

Wide belt sander

ERNST EM 5 / 1400

Condition: used, Year of construction: 2007, working width 1380 mm workpiece height 70 mm Nlsdpfx Ajt Hw Iisbzod total power requirement 45 kW weight of the machine ca. 5.500 kg

Year of construction: 1993, condition: good (used), machine/vehicle number: 931216, Technical specifications: - Edge grinding machine for edge finishing on - welded boxes, cabinets, safes, etc. - SIEMENS control for indexing and oscillation - max. grinding height approx. 1200 mm - grinding belt dimensions 100 x 2240 mm - grinding belt speed 12 + 24 m/s - grinding unit can be swiveled - 2 magnetic clamping plates - motorized grinding dust extraction - pneumatic connection 6 bar Nljdsggbmaopfx Abzsd - power supply 400 V - space requirement approx. W 2500 x H 2000 x D 2000 mm - weight approx. 1500 kg

Condition: new, neu ca. 12 - 14 Wochen ab Auf Italien 74000 € 1398.6 € 1350 mm 0,5 - 170 mm 1370 x 2200 mm 4000 m³/h 200 mm 6 bar 78 (+/-2) dB 1750 mm 2100 mm 2180 mm 2000 kg WITH 2 WORKING STATIONS: 1 X GRINDING BELT UND 1 X BRUSH UNIT ON TOP Machine made of stress-free welded steel construction for stable and rigid structure. Work table with motorised height adjustment via 4 synchronised spindles. Independent drive motors for each work group. Bonnets for extraction inside the machine, one per station. Touch screen for -Automatic star-delta connection of the main motors - Analogue ammeter for each group - Digital display for sheet thickness with decimal point tolerance - Material thickness adjustment (+/- 0.1 mm) - Machine condition monitoring with alarm messages FEEDING SYSTEM Robust steel structure, wear-resistant surface. Vacuum conveyor belt on request Variable feed speed via frequency converter 0.6 to 6.5 m/min. Rubber conveyor belt, oil and temperature resistant Automatic conveyor belt centring Lateral guides to prevent the belt from lifting off. Rubber pressure rollers in front and behind each station, oil and temperature resistant Idle rollers at the front and rear table 1 . WORKING GROUP - R Balanced contact roller Anti-oil and anti-heat Nitrile rubber coating Adjustable via eccentric shaft for working position and compensation of abrasive belt wear Pneumatic cylinder for automatic feed to working position and for lifting in case of emergency stop. Abrasive belts and/or Scotch Brite can be used. Motorised adjustment and electronic control of contact roll height. Variable speed motor with automatic brake in case of emergency. Pneumatic tensioning system for the abrasive belt. Sanding belt centring system, with electronic photocell. Oscillation adjustment in width and time. Diameter of contact roller mm 180 Hardness of the rubber wheels Shore 55 Stroke of the contact roller adjustment up-down "Grain adjustment mm 8 Positioning accuracy of the contact roller adjustment mm +/- 0,02 Positioning speed of the contact roller adjustment m/s 10 Grinding belt speed m/s 3-18 Motor power kW 7,5 2. WORKING GROUP - X 2 rows of vertical brushes, 10rotating clockwise and 10counterclockwise. Transverse movement of the entire group (oscillating) Quick change holder for brushes Brush diameter mm 115 Number of brushes No 20 Oscillation stroke mm 15 Rotation motor power kW 5,5 Revs 1/min 300 - 1000 Oscillation motor power kW 0,37 Grinding brush speed m/s 10,0 ACCESSORIES: B Group - External barrel brush Ø 150 mm with Scotch Brite Brush € 5.580,00 with Wire Brush 0,3 mm € 5.900,00 R GROUP - GRINDING BELT Motor 15 kW € 1.060,00 OPTIONS: Return to Sender System (Grinding part is discharged to the front again) € 1.290,00 Conveyor belt with vacuum system - 3,0 kW - 300 mm wide € 4.780,00 2 additional PVC coated rollers on infeed and outfeed side € 2.040,00 Tampico Brush System for parts cleaning 0,55kW Ø 150 mm € 4.510,00 Tampico Brush system for conveyor belt cleaning Ø 150 mm € 4.030,00 magnetic conveying system - 2 groups, 200 x 200 mm Nsdpoynmwkjfx Abzsld € 13.520,00 Demagnetiser € 4.940,00 THE MACHINE MUST BE USED WITH AN EXTRACTION DEVICE. WE RECOMMEND AN EXTRACTION SYSTEM WITH 4,000 M³/H.
