CNC Wood Machining Centre

ESSETRE TECHNO

Condition: excellent (used), functionality: fully functional, Essetre beam processing line model Techno PM with 5 axes Spindle 12 kW liquid-cooled, RPM 1,000–18,000 2 automatic tool changers with 9 positions each HSK 63F Processing height 800 mm Processing width 400 mm Gbjdpjw S Naijfx Aa Iog Machine is connected and ready for demonstration

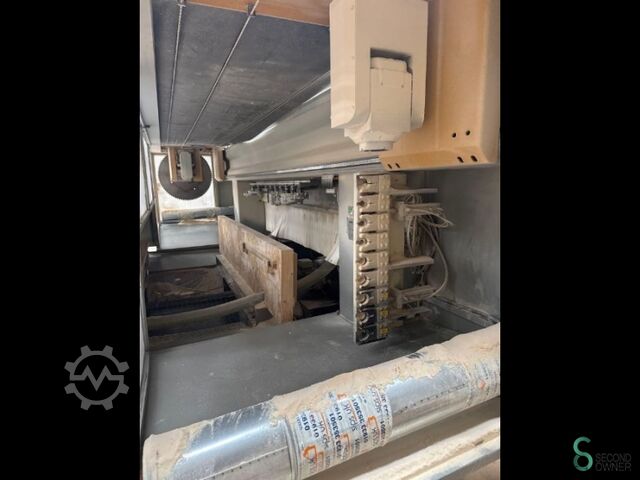

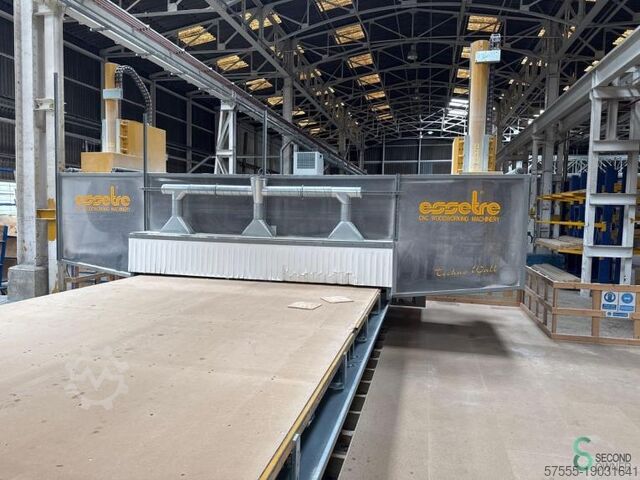

Condition: ready for operation (used), Year of construction: 2017, operating hours: 1,717 h, functionality: fully functional, machine/vehicle number: 904B0018, table width: 3,500 mm, table length: 14,400 mm, saw blade diameter: 1,000 mm, Equipment: CE marking, documentation/manual, TECHNICAL DETAILS Maximum saw blade diameter: 1,000 mm C1: 540° B1: 250° C2: 540° B2: 90° Table length: 14,400 mm Table width: 3,500 mm X-axis maximum travel: 5,000 mm Y-axis maximum travel: 15,870 mm Z-axis maximum travel: 1,000 mm MACHINE DETAILS Number of milling spindles: 1 Number of controlled axes: 2 5-axis unit power: 12 kW Operating hours: 1,717 h Gbedpjx Hg Stsfx Aa Ieg Main motor power: 55 kW Voltage: 400 V Current consumption: 130 A Power: 65 kW Transport dimensions (L x W x H): 40,000 mm x 2,400 mm x 2,700 mm EQUIPMENT Saw blade unit with flange connection Milling unit with tool changer Documentation CE marking

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, machine/vehicle number: 90450080, feed length Z-axis: 1,550 mm, workpiece weight (max.): 12,500 kg, cutting height (max.): 400 mm, feed rate Y-axis: 2,700 m/min, total length: 27,500 mm, total height: 4,500 mm, cutting width (max.): 800 mm, saw blade diameter: 520 mm, overall weight: 12,500 kg, power: 40 kW (54.38 HP), working length: 12,000 mm, working width: 800 mm, type of input current: three-phase, 5-Axis CNC Timber Frame Machining Center ESSETRE Techno One 1TG–5A 5-axis timber processing center (X Y Z B C) with fixed gantry Designed for the machining of all roof elements: straight and angled dovetail joints, tenon and mortise, hip and valley cuts, drilling with helical bits and by milling, all types of cuts, grooves and rebates – automatic feeding of beams – three tool magazines: 9, 2, and 5 positions each. Control panel – Essetre Travi graphical software Available tooling: saw blade, helical cutter head, tenoning cutter, roughing and straight cutters, dovetail cutters, 45° cutters, chain mortising unit Machining dimensions: max length 12,000 mm, max section 800 × 400 mm Overall dimensions: length 27.5 m × depth 390 cm × height 450 cm – total machine weight 12,000 kg Total installed power: 40 kW – 400 Volts – 60A – Air consumption: 400 Nl/min – Compressed air pressure: 6 bar Complete with a set of cutters, drill bits, and various accessories In good technical and visual condition Gbodpfx Ajxdik Rea Iog Ref. M26 / y12–pp410k

Condition: used, Year of construction: 2017, operating hours: 1,717 h, total height: 2,700 mm, total length: 40,000 mm, total width: 2,400 mm, Price: On request The blade unit has a flange connection so fixed blade ( max 1000mm diam ) with 55kw at 4000rpm 5axis unit 12kw is a milling group with toolchanger C1: 540° B1: 250° C2: 540° B2: 90° Gbedpfx Aswf Hw Hsa Ieg Installed dimensions: 19300x7100xH4400mm - Year: 2017 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 904B0018 - Operating hours: 1717 - Number of milling spindles [pcs.]: - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 2 - - Main motor power [kW]: 55 - Saw unit present: Yes - Table length [mm]: 14400 - Table width [mm]: 3500 - X-axis maximum stroke [mm]: 5000 - Y-axis maximum stroke [mm]: 15870 - Z-axis maximum stroke [mm]: 1000 - Voltage [V]: 400 - Current consumption [A]: 130 - Power [kW]: 65.0 - Transport dimensions: 40000mm x 2400mm x 2700mm (l x w x h) - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets
