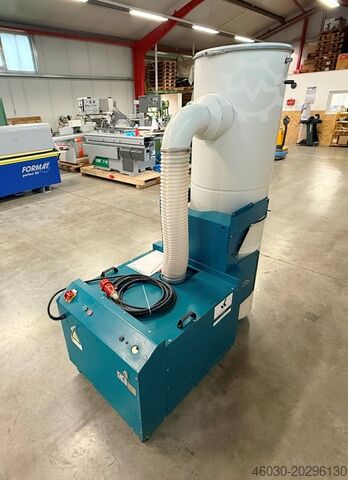

Mobile extraction unit / dust extractor

ESTA Dustomat 61

Condition: excellent (used), Year of construction: 2001, Dimensions (L/W/H) 1700 x 800 x 2100 mm Number of filters 1 St. Number of dust containers 1 St. hose diam. 160 mm 4000 mm 1850 m³/h Codpfx Adexcyymsrerh engine output 3 kW

Condition: good (used), Year of construction: 1993, Offer 24299 Technical data: Credpfx Adet Hurxsrsh - Volume flow approx. 2170 m³/h. - Dust bag / chip bag up to 170 L - Connection spigot 160 mm - Connection spigot adapter 2 x 100 mm - Drive power 400 V / 2.2 kW - Space requirement W 1200 x H 1900 x D 550 mm - Weight approx. 85 kg

Condition: new, Year of construction: 2026, functionality: fully functional, CORMAK FM300 Dust Collector – High-Performance Sawdust Extraction System The CORMAK FM300 is a high-performance dust extraction unit designed for use in medium and large woodworking shops, furniture factories, and production facilities. Equipped with a 1.5 kW motor, a durable metal impeller, and large-capacity 150 L filter bags, it provides a reliable and long-lasting solution for efficient dust extraction from woodworking machines and workstations. With an airflow capacity of 2,530 m³/h, the FM300 can effectively support several machines at the same time. Key advantages High airflow capacity of 2,530 m³/h – efficiently removes large amounts of sawdust and dust in a short time. 1.5 kW motor – reliable and energy-efficient drive powered by a 230 V supply. Metal dynamically balanced impeller – ensures quiet, stable, and vibration-free operation over a long service life. Large 150 L bag capacity – reduces the need for frequent emptying and improves workflow efficiency. Y-type suction outlet – 2 × Ø100 mm or 1 × Ø130 mm – allows extraction from two workstations simultaneously or from one larger machine. Csdpfxey Exn Ro Adrorh Mobile steel construction – four transport wheels make it easy to move the unit around the workshop. Quick bag mounting system – simplifies maintenance and saves operator time. Construction and technology The CORMAK FM300 woodworking dust collector has been designed for intensive operation in industrial environments. The core of the machine is a centrifugal sawdust fan equipped with a metal impeller, dynamically balanced to eliminate vibration and reduce operating noise. The robust steel construction ensures durability and resistance to mechanical damage. The standard Y-type outlet enables quick connection of hoses to various woodworking machines. Precision and performance The FM300 provides highly efficient dust extraction under demanding working conditions. The 2,850 rpm motor maintains a stable airflow, allowing continuous operation with multiple woodworking machines. The dual-bag system, consisting of a filter bag and a collection bag with a total capacity of 150 liters, enables long operating cycles with minimal downtime. Applications The CORMAK FM300 is suitable for: Professional woodworking and furniture factories – for use with panel saws, thickness planers, routers, and sanding machines. Small production lines – as a central sawdust extraction system for several workstations. Technical schools and training workshops – safe, efficient, and easy-to-use dust extraction. Service workshops – point extraction for medium and high-intensity woodworking operations. Standard equipment Y-type suction outlet (2 × Ø100 mm or 1 × Ø130 mm) Mobile metal base Two fabric bags: filter bag and collection bag Optional equipment Ø100 mm extraction hose Galvanized hose clamps Disposable plastic collection bags Technical specifications Parameter Value Extraction capacity 2,530 m³/h Vacuum pressure 1,800 Pa Noise level 70 dB Motor speed 2,850 rpm Motor power 1.5 kW Power supply 230 V Bag capacity 150 L Number of bags 2 Suction outlet diameter 1 × Ø130 mm or 2 × Ø100 mm Dimensions (L × W × H) 940 × 510 × 1960 mm Weight 56 kg Technical documentation (DTR) Included CE Declaration of Conformity Included

Condition: excellent (used), Year of construction: 2022, Extraction connection, D 140mm Chip collector capacity 200L Airflow rate [m³/h] 2500 Cjdszxql Ejpfx Adrjrh 3 kW, 400V

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 900x560x570 mm Crsdpfx Adjvz Ek Serjh Weight 50 kg Total power requirement 1,5 kw

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 1170x560x570 mm Codpfxjvz Elco Adrjrh Weight 55 kg Total power requirement 2,2 kw

Condition: new, mobile extraction unit exhibition piece Codpfew I Uu Rox Adrsrh Dimensions and weights Length (product) approx. 1000 mm Width/depth (product) approx. 500 mm Height (product) approx. 2100 mm Net weight approx. 39 kg Chip collection volume 110 l Nominal external diameter extraction inlet 203 mm Nominal external diameter extraction outlet 1 x 100, 1 x 120 mm Electrical data No-load speed 2950 min⁻¹ Connection voltage 230 V Mains frequency 50 Hz Input power 1.5 kW Output power 1.05 kW Filter Filter area 1.92 m² Noise emission Maximum sound pressure level 85.7 dB(A) Airflow Nominal airflow 1900 m³/h Maximum negative pressure 1700 Pa SCOPE OF DELIVERY Fine filter bag, Chip collection bag Availability: short-term Warehouse location: Hochheim

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 1685x765x650 mm Credpsvz Ek Eefx Adreh Weight 91 kg Total power requirement 2,2 kw

Condition: new, Year of construction: 2026, functionality: fully functional, CORMAK FM300 230V Dust Extractor with Dust Filter The CORMAK FM300 230V with a dust filter is a highly efficient and mobile dust extractor that combines powerful suction with a modern filtration system. Designed for workshop environments, it is suitable for both professional woodworking facilities and smaller workshops. The use of a 2-micron dust filter makes the machine suitable for applications where clean air is particularly important. Main Advantages of the Machine High extraction capacity – 2,800 m³/h – effective removal of chips, sawdust, and dust from one or two machines simultaneously. 2-micron self-cleaning dust filter – ensures clean air in the workshop and effective retention of fine particles. Codpfx Aoz A T T Dodrorh Stable metal construction – resistant to vibration and mechanical damage. Balanced steel impeller – ensures quiet and vibration-free operation. Compact dimensions and mobility – an ideal solution for workshops with limited space. Quick bag mounting system – convenient and fast replacement of the plastic waste collection bag. Construction and Technology The FM300 230V is equipped with a balanced metal sawdust fan that generates high negative pressure and enables stable operation for many hours. The robust frame made of steel profiles and the solid mobile base ensure structural rigidity and reduce vibration. The suction system is fitted with a Y-shaped connector (2 x Ø100 mm), allowing two machines to be connected simultaneously. The 2-micron dust filter is self-cleaning, which significantly extends its service life and improves filtration efficiency. It is an ideal choice for applications where, in addition to extracting larger waste particles, it is also important to remove fine dust generated during milling and sanding. Precision and Operating Efficiency Operating at a speed of 2,850 rpm, the FM300 230V provides highly effective removal of contaminants, contributing to cleanliness and safety in the working area. Thanks to its 1.5 kW motor and efficient turbine, the extractor maintains consistent suction power even during intensive use. Applications Small and medium-sized woodworking facilities Furniture and model-making workshops Woodworking – saws, jointers, and planers Milling, sanding, and drilling workstations Standard Equipment Metal Y-shaped connector – 2 x 100 mm Metal base with 4 castor wheels Plastic waste collection bag 2-micron self-cleaning dust filter Optional Equipment Ø100 mm extraction hose Galvanized clamps Technical Specifications Specification Value Extraction capacity [m³/h] 2,800 Negative pressure 1,800 Pa Noise level 70 dB Motor speed [rpm] 2,850 Bag capacity [litres] 153 Number of bags 1 Diameter of extraction outlets [mm] 1 x 130, 2 x 100 Dimensions (L x W x H) [mm] 940 x 510 x 1,960 Weight [kg] 64 Motor power [kW] 1.5 Power supply 1-phase, 230 V User and Maintenance Manual (DTR) YES CE Declaration of Conformity YES

Condition: new, Year of construction: 2026, functionality: fully functional, The CORMAK FM340 230V woodworking dust extractor with a dust filter is a high-performance extraction unit designed for woodworking shops and facilities that require effective removal of sawdust, wood chips and fine dust. Thanks to its single-phase operation and compact design, the unit is ideal as a mobile sawdust extractor for multiple workstations. Main Advantages High extraction capacity – 3,200 m³/h – efficient handling of machines generating large amounts of waste material. 2-micron dust filter – effective air filtration, including fine dust particles. 300 mm diameter metal impeller – stable, vibration-free operation. 180° rotating extraction unit – flexible adaptation to the layout of the extraction hoses. Quick-release mounting system – convenient and fast replacement of filter and waste bags. Mobility – transport wheels and relatively low weight make it easy to reposition the extraction unit. Construction and Technology The FM340 230V is equipped with a robust metal fan enclosed in a durable housing, ensuring consistent negative pressure while maintaining stable extraction performance. The high-quality dust filter, with filtration efficiency down to 2 microns, allows the unit to be used even for sanding and processing dust-generating materials. The extraction unit can be rotated by 180°, making it easier to connect three workstations to the 3 × Ø100 mm outlets. Thanks to its 230 V power supply, the sawdust extractor can be connected in virtually any workshop without the need for a three-phase electrical installation. Precision and Operating Efficiency The 1.5 kW motor reaches a rotational speed of 2,850 rpm, resulting in highly effective collection of wood chips and fine dust particles. The large 190-litre collection bag allows for extended operation without the need for frequent emptying. Applications Woodworking: planers, jointers, thickness planers, saws and sanders Woodworking shops, furniture manufacturing facilities and craft workshops As a sawdust blower or dust extraction unit in smaller production lines Standard Equipment Waste collection bag Self-cleaning dust filter (2 microns) Suction inlet 1 × Ø150 mm / 3 × Ø100 mm Metal mobile base with wheels Optional Equipment Ø100 mm extraction hose Galvanized hose clamps Crsdpfx Adoz A Tkporoh Technical Data Motor 1.5 kW / 230 V Rotational speed 2,850 rpm Extraction capacity 3,200 m³/h Negative pressure 1,900 Pa Noise level 70 dB Bag capacity 190 L (500 mm / 1,100 mm) Outlet diameter Ø150 mm / 3 × Ø100 mm Impeller diameter 300 mm Dimensions (L × W × H) 985 × 560 × 2,210 mm Weight 45 kg
