Tool grinding machine

EWAG Ewamatic Line 2002

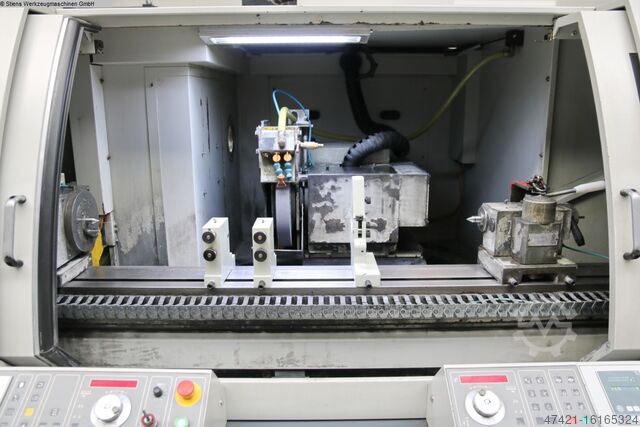

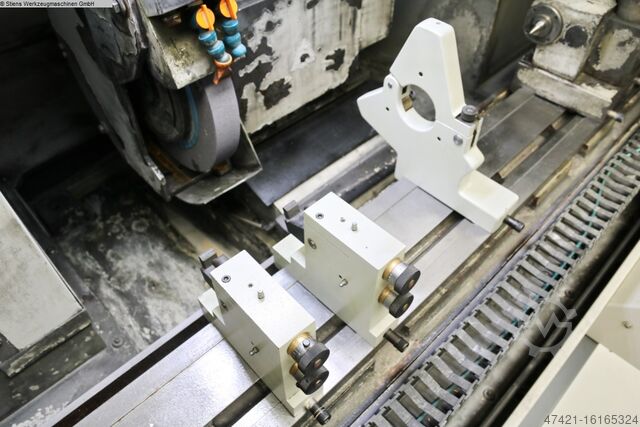

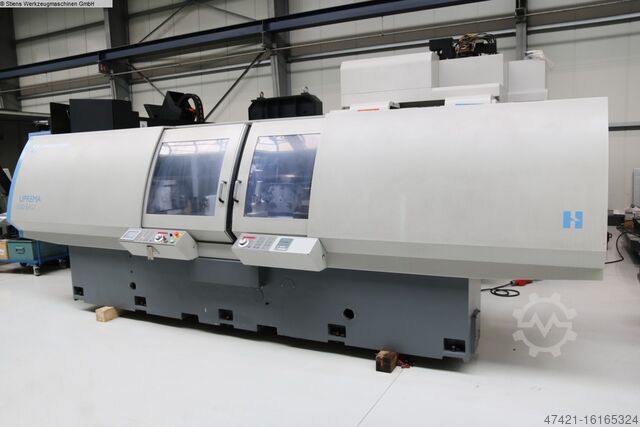

Condition: used, Year of construction: 2012, grinding diameter max. 320 mm grinding length 1.500 mm centre height 160 mm Control Touch Jones & Shipman between centers max. 100 kg table: Traverse Z-Axis 1.645 mm Fodetqmrpspfx Aa Nsgi traversing speed 0,0001 - 12 m/min swivable +5 / -5 ° x-axis: Traverse X-Axis 260 mm traversing speed 0,0001 - 6 m/min grinding head: grinding wheel motor 7,5 kW cutting speed 45 m/s Grinding wheel Ø x width x bore 450 x 50 x 203,2 mm Tailstock: Swivel range -15 / +90 ° turning speed range 0 - 660 U/min Torque 27 Nm tool adaptor MK 3 total power requirement kW weight of the machine ca. 8,5 t dimensions of the machine ca. 5,5 x 2,5 x 2,0 m Cylindrical Grinding Machine JONES & SHIPMAN - Suprema Easy 1500 E - Replacement grinding wheel flange - Multi-grain diamond (for circumferential and lateral dressing, 10mm, 1 carat) - Tailstock with micro adjustment (max. adjustment range +-0.05mm) - Pneumatic quill retraction - Two-jaw bezel (range 8-75 mm)

Condition: used, Year of construction: 2001, longitudinal feed X: 490 mm Vertical feed Y: 320 mm cross travel Z: 660 mm Fjdpfx Aajw E Npxj Njgi Swivel range C: +/- 200 ° Control HMC 500 WWM Walter lenght tool piece capture A: 175 mm ISO 50 Max. rpm A: 60 min/-1 centre height 145 (190) mm max. workpiecediameter 320 mm max. workpiece length 320 (350) mm resolution 0,0001 ° Resolution 0,0001 mm spindle diameter 80 mm grinding wheel diameter max. 200 mm Max. rpm 0 - 7.000 min/-1 driving power - grinding spindle 24 kW max. Torque 6 Nm total power requirement 35 kVA weight of the machine ca. 4,65 t dimensions of the machine ca. 3,6 x 2,5 x 2,95 m CNC - Tool-Grinding-Machine WALTER - Helitronic Power Production - Optional for an additional charge: WALTER Heli ToolCheck (stock number 1039-9375) ?m=1039-9375&s=WALTER%20Heli%20Toolcheck

Condition: good (used), Year of construction: 2007, 1 used CNC tool grinding machine Make: Schneeberger Model: Corvus GDS 650 Year of manufacture: 2007 CNC Control: FANUC 160i Fgodpfx Aeu A Dn Noa Nei Software: Quinto 4.3 Activated software options (option numbers): 1, 2, 19, 21, 22, 30, 31, 32, 35 - Fanuc loading robot - Coolant system Travel: X-axis: 650 mm Y-axis: 300 mm Z-axis: 300 mm C-axis swivel range: +150°/ -60° C’-axis swivel range: +/- 180° Grinding spindle: Wheel diameter up to 250 mm Speed: 0 – 10,000 rpm Max spindle power: 26 kW HSK 80 interface Max. number of wheels: 6 Workpiece spindle head: Vmax: 180°/s Drive power: 1.6 kW ISO 50 interface Precision (resolution): Linear axis resolution: 0.001 mm C-axis: 0.001° Dimensions: Length: 3,100 mm Width: 1,915 mm Height: 2,190 mm Weight: 8,500 kg U-axis is integrated with steady rest, clamping cylinder, and tailstock 6-pallet loader (diameter 3 to 32 mm) 64 plastic collets Technical data subject to change without notice

Condition: used, Sharpening machine EWAG WS 11 SP Fsdpfx Aaowp T Nkj Njgi

Condition: excellent (used), Year of construction: 2003, HMC 500 control unit Year of manufacture: 2003 Fgjdpew Hxtvofx Aa Nji incl. software ball end mill; face mill; drill; taper tools: woodworking tools; etc.

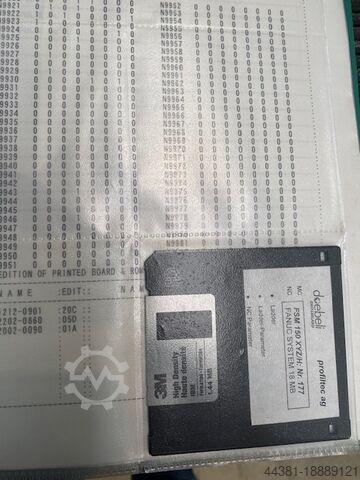

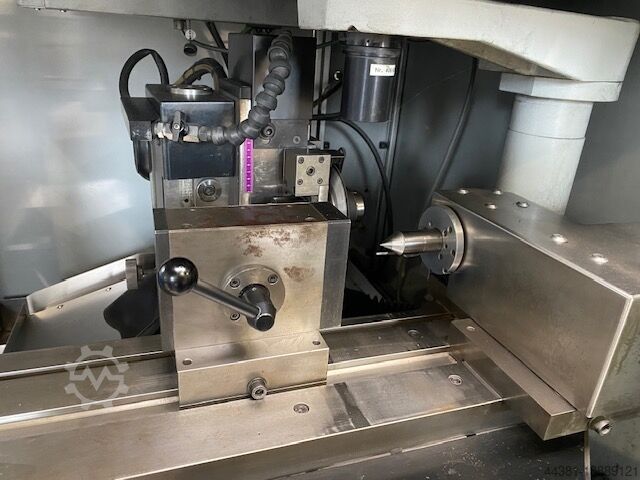

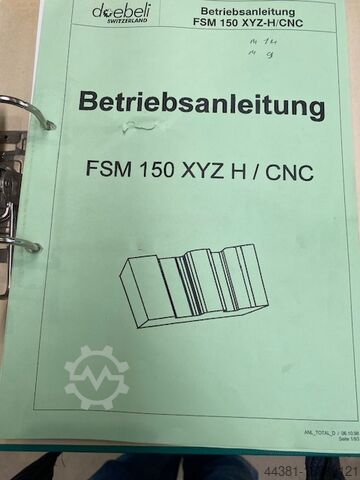

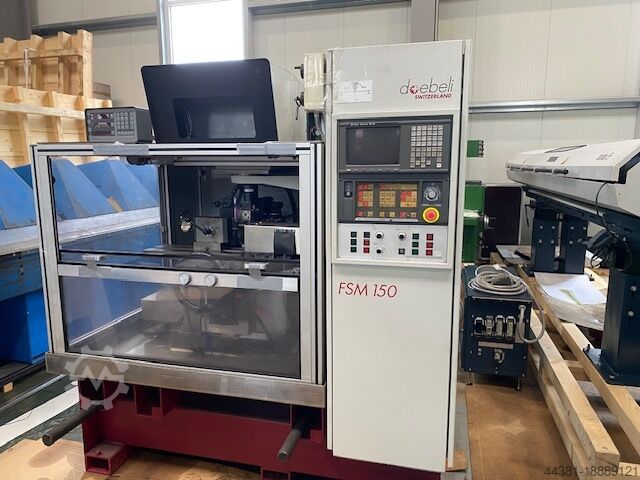

Condition: excellent (used), Year of construction: 1999, Profile grinding machine Döbeli FSM 150, built in 1999 Fgodpfx Aswarqbja Nsi CNC profile grinder Control: Fanuc 18M Projection: Field of view: 300 x 200 mm Magnification: 10x, 20x, 50x Illumination: 12 V, 100 W Coolant unit tank capacity: 80 L Grinding head: rotation ±30°, inclination -15° Grinding stroke: Length: 78 mm Speed: 0-280 strokes/min Spindle motor: 1 HP Spindle speed: 4,000 rpm Grinding spindle wheel diameter: 150 mm Travel range: Profile width, CNC-axis X: 120 mm Profile depth, CNC-axis Y: 50 mm Linear axis :0.0001 mm Working table: Height adjustment: 80 mm Travel in workpiece height: 150 mm Max workpiece diameter: 200 mm.
