Jig

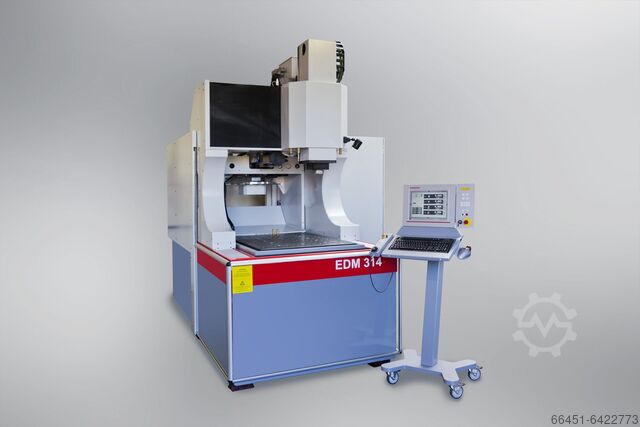

Exeron EDM314MF30

Condition: like new (used), Year of construction: 2016, operating hours: 1,011 h, functionality: fully functional, travel distance X-axis: 905 mm, travel distance Y-axis: 705 mm, travel distance Z-axis: 450 mm, workpiece weight (max.): 3,000 kg, total height: 3,100 mm, total width: 2,090 mm, total length: 3,400 mm, table width: 850 mm, type of input current: three-phase, distance table to quill: 705 mm, table length: 1,150 mm, warranty duration: 12 months, feed length X-axis: 1,100 mm, feed length Y-axis: 705 mm, feed length Z-axis: 450 mm, feed rate X-axis: 5 m/min, feed rate Y-axis: 5 m/min, feed rate Z-axis: 15 m/min, input voltage: 400 V, overall weight: 7,500 kg, year of last overhaul: 2025, table load: 3,000 kg, input frequency: 50 Hz, working range: 1,200 mm, Equipment: documentation/manual, EDM314MF30 - Low Usage Overhauled Technical Data: Travel X/Y/Z: 905x700x455 mm Workpiece Clamping Table: 1150x850 mm Work Tank: 1200x900 mm Filling Height: 500 mm Distance Table/Electrode Holder: 250/705 mm Workpiece Weight: 3000 kg Dielectric Capacity: up to 1800 liters Dimensions (W x D x H): 2090x3416x3100 mm Machine Weight: 7500 kg Equipment: Color: Light Grey Operating Interface: MF30 Software with latest NC version Mobile Panel Handheld Control Console with Enable Switch Generator: 60 Amps Latest TEC 8 Technology Table: Steel with T-slots Filter Pump, Flushing Pump, Filling Pump 3 Cartridge Filters Automatic Tank Height Adjustment Integrated Cooler C-Axis: 100 rpm, Direct Measurement, Holding Brake Chuck System: EROWA, 3R, Hirschmann Tool Changer: 20 positions CO₂ Fire Extinguishing System Contact Protection Transport, Commissioning, Training on request Options: 120A Generator Power AWEX/EROWA/Pcam Automation Remote Access Maintenance-free Backflush Filter Fpjdpfx Afewyvkropen C-Axis Bridging etc.
