Portal milling machine
F. Zimmermann FZ 35

Name: F. Zimmermann FZ 35
Brand: F. Zimmermann
Availability: InStock

Year of construction

2002

Condition

Used

Location

Baienfurt

Portal milling machine F. Zimmermann FZ 35

Show map

Machine data

Machine type:: Portal milling machine

Manufacturer:: F. Zimmermann

Model:: FZ 35

Year of construction:: 2002

Condition:: excellent (used)

Functionality:: fully functional

Price & Location

Location:: Kartonstr. 2, 88255 Baienfurt, DE

Call

Technical details

Operating hours of spindle:: 4,486 h

Details about the offer

Listing ID:: A196-12476

Update:: 20.08.2025

Description

Initial commissioning: 2002

Control system: Fidia C20 with HPX operator panel

Machine hours: 146,161 h

X-axis: approx. 3,000 mm
Y-axis: approx. 2,360 mm
Z-axis: approx. 1,500 mm
A-axis: ± 105°
C-axis: ± 300°

Clamping table
Clamping surface: approx. 5,000 x 2,000 x 400 mm
T-slot spacing: 18H12 / 250 mm
Table load capacity: 15,000 kg/m²

2-axis milling head AC3 (2003)
Spindle power: 28 kW
Spindle speed: max. 18,000 rpm
Torque: 90 Nm
Tool holder: HSK 63A
Tool clamping: hydraulic
Minimum quantity lubrication: external

Codpow Au H Rofx Abwjrh
Linear axis drives
Feed rate X, Y-axis: up to 20 m/min
Feed rate Z-axis: up to 20 m/min
Axis acceleration X, Y, Z-axis: up to 1.5 m/s²

Electrical connections
Connected load: 40 kW
Main fuse: approx. 80 A

Dimensions, weights
Space requirement machine including peripherals: approx. 7,300 x 5,600 x 5,600 mm
Total weight: approx. 16,500 kg

Colour
Enclosure, gantry, control cabinet: light grey
Milling head and applications: turquoise

Additional equipment

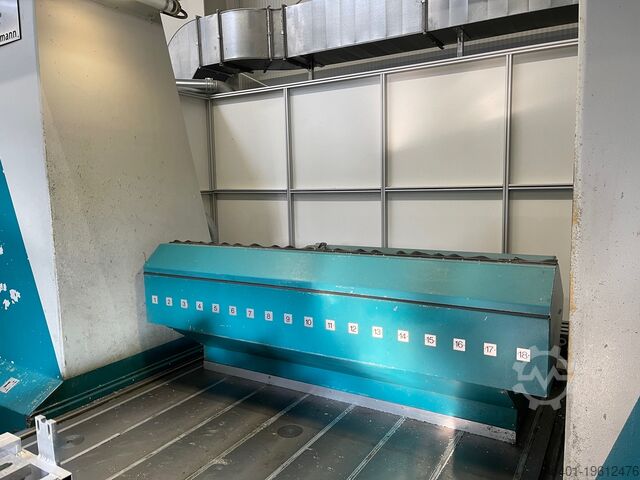

- 18-position chain-type tool changer

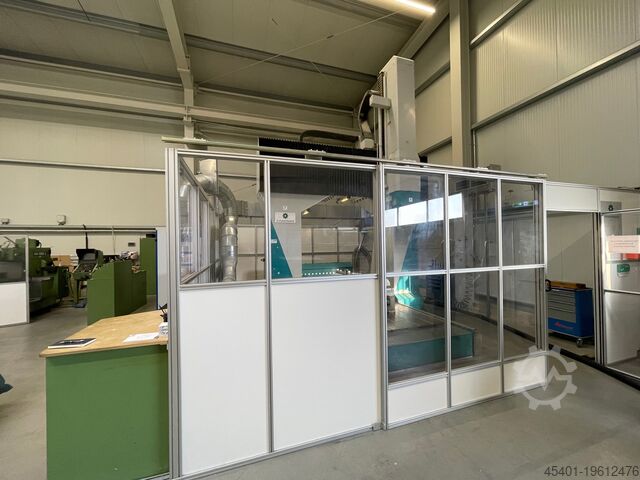

- 3-sided enclosure, without extraction ducts

Condition of the machine
Fully operational, very good condition. Dismantled, stored and immediately available.

The listing was translated automatically. Translation errors are possible.
