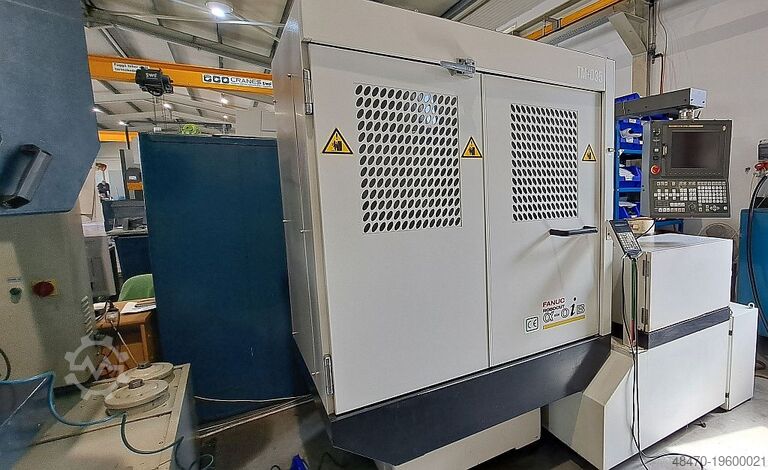

FANUC ALPHA 0iB – 2001 Wire cutting EDM machine

FANUC ALPHA 0iB

Condition: used, Year of construction: 2003, functionality: fully functional, Controller FANUC 180 iS-W X travel 320 mm Y travel 220 mm Z travel 180 mm U travel 120 mm V travel 120 mm Rapid speed (X,Y,Z/U,V) 900 mm/min / 450 mm/min Max size of wpc. = L x W x H = 600 x 400 x 180 mm Max weight of wpcs. 500 kgs Nlodsw Afyzspfx Ac Hek Dimensions of dielectricum tank = 800 x 600 x 470 mm Power required 13 kVA Weight 1200 kgs

Condition: used, Wire erosion FANUC ROBOCUT ALPHA-0iE Nledpoxqrqajfx Ac Hjk

Condition: used, Year of construction: 1995, Surface grinding machine Manufacturer: Jung Model: JA 500 CNC-C Njdjwp E Rgepfx Ac Hslk Year of manufacture: 1995 Overhauled in: 2003 Grinding length: 500 mm Grinding width: 200 mm Max. workpiece height: 250 mm Table dimensions X/Y: 600 mm / 200 mm Grinding wheel diameter: 225 mm Grinding wheel width: 25 mm Grinding wheel bore: 51 mm Speed: 4,200 rpm Machine weight: approx. 2,500 kg

Condition: used, TECHNICAL DETAILS - Number of axes : 3 MILLING SPINDLE - Tool holder type : BBT 30 (Big-Plus) - Spindle power : 12 [kW] - Spindle speeds : 10000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 500/400/330 [mm] - Rapid traverses rates (X/Y/Z) : 54 [m/min] TOOL CHANGER - Auto. Tool Changer type : Parapluie - Tool magazine capacity : 21 TABLE - Table dimensions : 650 x 400 [mm] - Maximum weight upon table : 300 [kg] - Distance table / spindle nose (min./max.) : 250-580 [mm] POWER SUPPLY - Supply voltage : 380 [V] WEIGHT & DIMENSIONS - Machine floor space : 1565 X 2027 [mm] Njdpfoxcbvcex Ac Holk - Machine height : 2346 [mm] - Machine weight : 2000 [kg] EQUIPMENT - CNC : Fanuc 31i model B5 - Rigid tapping - 3 colors status lamp - Coolant tank * with high-pressure pump : 15 [bars] - Coolant through spindle - Chips conveyor : DROITE - Tool probe : MIDEX BKS1S

Condition: excellent (used), Year of construction: 1996, grinding length 600 mm grinding width 350 mm total power requirement 7,5 kW Nledpfx Aox Haryec Hek

Condition: good (used), Year of construction: 2012, Hasegawa PM150 Machining Center Manufacturer: Hasegawa Model: PM 150 Year of manufacture: 2012 Number of axes: 4 Travel X axis: 150 mm Travel Y axis: 225 mm Travel Z axis: 200 mm Swivel axis: YES Rapid traverse X, Y, Z: 30 m/min Table load capacity: 80 kg Table working surface: 300 × 260 mm T-slot table: 12H7 × 5 Spindle taper: HSK E32 Spindle speed: 100 to 30000 rpm Tool magazine: 10 tools Max. tool size: Ø50 mm Memory capacity: 5120 m 2048 kB Minimum input increment: 0.1 µm Interface: RS232C Number of programs: 63 Nlsdpfxex Hqv Nj Ac Hok No guarantee is given for the accuracy, completeness, or timeliness of the information provided.
