3-roll round bending machine
Fastech FRS 1250 x 140

Name: Fastech FRS 1250 x 140
Brand: Fastech
Availability: InStock

Condition

New

Location

Mudersbach Germany

3-roll round bending machine Fastech FRS 1250 x 140

Machine data

Machine type:: 3-roll round bending machine

Manufacturer:: Fastech

Model:: FRS 1250 x 140

Condition:: new

Price & Location

Location:: Stahlwerkstrasse 4, 57555 Mudersbach, Deutschland

Call

Details about the offer

Listing ID:: A699-3651

Update:: 11.03.2024

Description

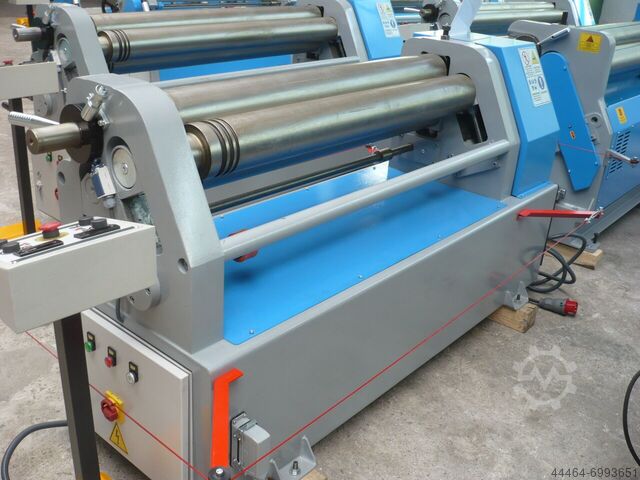

Fastech 3-Roll Round Bending Machine FRS 1250 x 140
Dsdpfx Alshzq Dxsbjkp
Technical Specifications:

Special equipment included in the price:
hardened rollers
motorized rear roller adjustment
motorized lower roller adjustment
2 x digital display

Sheet metal width 1250 mm
Sheet metal thickness 5.5 mm max.
Sheet metal thickness for pre-bending 5.0 mm
Roller length 1250 mm
Roller diameter 140 mm
Smallest bending diameter 210 mm
Weight 1365 kg
Dimensions L-W-H 2020 x 900 x 1200 mm
Motor: 2.2 kW
Equipment:
Top and bottom rollers electrically driven
Top roller can be pivoted outwards
Conical bending device
Asymmetrical roller arrangement
Self-braking main motor
Separate control and operating panel
Safety cable
Values apply to St-37 / 240 N/mm²
CE marking

The listing was translated automatically. Translation errors are possible.
