Decoiler - expansion mandrel 7,5 t

FASTI

Year of construction: 1997, condition: ready for operation (used), This SCHRODER-FASTI FASTI 509-40-6 was manufactured in 1997. A Hydraulic shearing machine capable of handling aluminum up to 8mm, steel up to 6mm, and stainless steel up to 3mm. Minimum stop dimension is 15mm. A solid choice for shaping various metals, the SCHRODER-FASTI FASTI 509-40-6 machine we have for sale. Contact us for further details. Additional equipment Cjdpsx U T Hajfx Ah Ispw • Front-operated motorised fence • Right-angled side stop 90° with tilt stop • 2 drop cam stops in T-slot guide • Table extensions with T-slots • Operating tool Machine Benefits Technical Machine Benefits • Minimum stop dimension: 15 mm • Construction: all-steel welded construction • Cutting technology: / double-edged, multi-part blades with 87° wedge angle / stepless cutting length adjustment / cutting gap adjustment (can be read to 1/100 mm using a dial gauge) / cutting line display with silhouette • Drive: hydraulic with oil filling • Control system: o electric control in accordance with din en 60204-1 / operating modes: single stroke, continuous stroke, partial stroke, jogging • Projection on the side stand: 50 mm • Dimensions (approx. ) for 509-40-6: a (total length): 4540 mm /b (table width): 1885 mm /c (table depth): 1645 mm/ d (cutting length): 4300 mm/ h (height of work surface): 2329 mm /k (total machine height): 1430 mm • Side stand projection: 50 mm (standard) • Foundation fastening: composite anchor hva m16x125 with mortar cartridges (drill Ø 18 mm) / concrete strength class min. B25 required. • Cutting performance: shear angle: large angle = lower resistance, higher performance. / small angle = higher resistance, lower power // max. Sheet thickness: o dependent on material strength (see diagram in document). O recommended strip width: 12-15 × sheet thickness for low-torsion cuts Extra Information Machine still under power

Condition: good (used), Hydraulic guillotine shear (used) Manufacturer: Fasti Model: TCHE 25/6 Max. cutting length: 2540 mm Max. sheet thickness (ST 40): 6.0 mm Distance between uprights: 2540 mm Backgauge travel: 0 – 750 mm Hold-downs: 16 units Motor power: 12 kW Machine weight: 5400 kg Required space: Width 3000 mm, Depth 2700 mm, Height 1900 mm Features: Foot switch, angle gauge, front support arms, motorized backgauge, cutting edge illumination, sheet lifting device. The machine is in very well-maintained condition and ready for immediate use. Forklift available, free loading onto truck. Affordable shipping possible. Location: 48477 Hörstel. Codpfx Ahoyrr E Uj Iepw

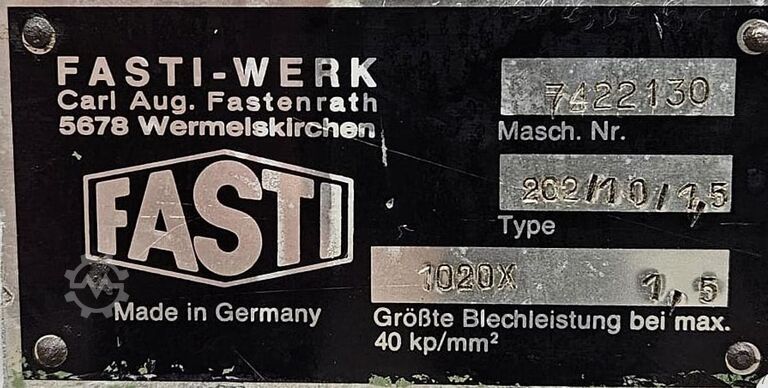

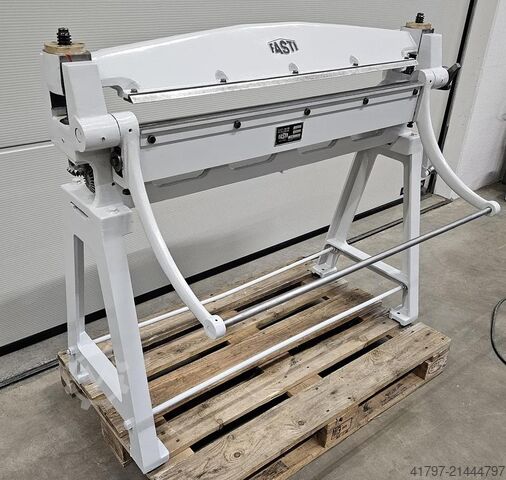

Condition: used, Year of construction: 1998, Max. bending length: 1020 mm Cpsdpsyrrg Sefx Ah Iow Max. sheet thickness: 1.5 mm steel Weight: approx. 300 kg

Condition: used, CNC press brake FASTI type 904-125/30 serial no. 95-904-5775 year of construction 1995 Pressure capacity 125 ton. Working length 3050 mm Stroke approx. 335 mm Stand projection 300 mm Clearance between the side uprights 2550 mm Tool installation height max. 465 mm (opening width between the tool holders) Table width 90 mm (the clamping system is mounted on the table) Table height above floor 875 mm (910 mm with clamping system) Backgauge X-axis 500 mm Backgauge R-axis 115 mm Backgauge Z-axis approx. 1950 mm Lowering speed Y rapid traverse 90 mm/s Lowering speed Y-operation 8.9 mm/s Return stroke speed Y-retraction 75 mm/s Oil filling approx. 160 liters Motor power 18.5 kW Mains connection 400 Volt, 50 Hz, 20 Amp. - 7-axis CNC control DELEM type DA 58 with LCD screen - 1 axis for back gauge - stop depth (X-axis) - 2 axes for back gauge - fence height (finger R1 + finger R2) - 2 axes for back gauge - stop finger, laterally movable (finger Z1 + finger Z2) - 2 axes for press beam with servo valves and measuring system Y1 and Y2 - Operation via electric foot switch and 2-hand control panel or 2-hand control panel only - Hydraulic tool clamping for the TRUMPF upper tool system, with 20 mm clamping groove - Hydraulic tool clamping for the lower tool with 13 mm table groove, depth 21 mm (tool pin 13 x 20 mm) - FIESSLER safety light barrier, type AKAS Cpjdpfshmmfksx Ah Iew - 2 material support arms at the front, manually movable to the side and height-adjustable - Electrical diagram, hydraulic diagram, user manual for control available - Control cabinet on the machine - without tools Space requirement L x W x H 5000 x 2500 x 3050 mm Transport dimensions L x W x H 5200 x 1900 x 2950 mm Weight 8.5 tons. Good condition

Condition: used, Swivel bending machine FASTI Type 2095-25-2,5 Serial no. 94 295 004 Year of construction 1994 effective length 2540 mm max. sheet thickness 2.5 mm Cpodpettc Uasfx Ah Iow Stroke of upper beam 380 mm Motor power bending beam 2.2 kW Mains connection 400 Volt, 50 Hz - NC control FASTImatic FM100 - One-piece 135° pointed rail - Controlled backgauge - Continuous stop rail - controlled bending angle via control unit - electric foot switch weight 3000 kg good condition

Condition: used, Max. cutting length: 1040 mm Max. sheet thickness: 4 mm steel Manual backgauge up to 550 mm Side stops and table extensions knife sharpened Cpedpfeyrnviex Ah Iew 1700 kg

Condition: good (used), Hydraulic guillotine shear (used) Manufacturer: Fasti Type: TCHE 254 Max. cutting length: 2540 mm Max. sheet thickness (ST 45): 4.0 mm Distance between side frames: 2540 mm Backgauge adjustable: 0 – 1000 mm Hold-downs: 14 units Motor power: 6.5 kW Machine weight: 3400 kg Required floor space: Width 2950 mm, Depth 2700 mm, Height 1900 mm Foot switch Angle gauge Front support arms Motorized backgauge Cutting edge illumination Digital display for backgauge The machine is in very well-maintained condition and ready for immediate use Forklift on site, free loading onto truck Inexpensive shipping possible Machine location: 48477 Hörstel Cpjdpfxoyrhfwo Ah Isw

Condition: used, total length: 4,500 mm, total width: 900 mm, total height: 1,650 mm, Empty weight: 3.000 kg Price: On request - Documentation available: No - CE certificate present: No - Serial number: 8419012 - Drive system: Conventional - Drive: Mechanical - Number of rolls [pcs.]: 3 - Number of driven rolls [pcs]: 3 - Power [kW]: 7.7 - Max. sheet thickness [mm]: 3 - Max. working width [mm]: 3040 - Top roll diameter [mm]: 150 - Bottom roll diameter [mm]: 150 - Transport dimensions: 4500mm x 900mm x 1650mm (l x w x h) - Transport weight [kg]: 3000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Csdpfeyn Abfjx Ah Ispw Lukas van Rossum

Condition: used, Year of construction: 2011, SCHRÖDER-FASTI 940-160/40 Cpjdpfx Ahsynkugj Iew

Condition: good (used), motorized limit stop behind foot switch Technische Daten / technical details: Schnittleistung (Blechdicke) / max. cutting capacity (thickness of sheet) 6 mm Schnittlänge / max. cutting length 2035 mm Hinteranschlag / arrester behind 1000 mm Ständerweite / distance between columns 2000 Mm Antriebsleistung / drive capacity 11 kW Gewicht der Maschine / weight 3500 kg Cpjdshtq N Nepfx Ah Isw Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.
