CNC Drilling & milling machine

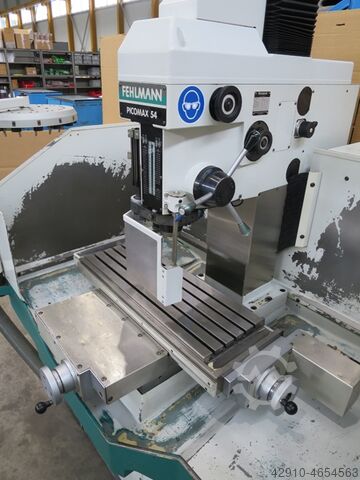

FEHLMANN Picomax 54

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 14008455, Fehlmann Picomax 54 model with Heidenhain TNC 320 control, in very good condition. Technical specifications: - Year of manufacture: 2008 - Travel in X, Y, and Z axes: 500/260/480 mm - Travel of the drilling spindle: 160 mm - Table dimensions (L x W): 880 x 320 mm - Maximum table load: 250 kg - Distance from table to spindle nose: 0 - 605 mm - Feed rate in X/Y: 1 - 2000 mm/min - Feed rate in Z: 1 - 1200 mm/min - Rapid tool change system: SF 32 - Spindle speed range, infinitely variable: 7100 rpm Ndsdozgwiyepfx Aa Rja - Machine dimensions (W x D x H): 1850 x 2550 x 2400 mm - Weight: 2150 kg Accessories: - Heidenhain TNC 320 control - 4th axis with tailstock and Rohm 140mm 3-jaw chuck - Various holders - Microscope - Heidenhain probe - Machine lamp - Cooling system

Condition: new, distance between shaft and table: 470total power requirements: 2,2 kwweight approx.: 1,2messurements (LxWxH): Länge2400 mm Breite/Tiefe2160 mm Höhe2300 mm Gewicht 1200 kgspindle rotation speed: 60 4200 min¯¹ Nedjd H Hhzopfx Aa Rjda

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, feed length X-axis: 500 mm, feed length Y-axis: 250 mm, feed length Z-axis: 160 mm, travel distance X-axis: 500 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 480 mm, spindle speed (max.): 9,000 rpm, feed rate X-axis: 2 m/min, feed rate Y-axis: 2 m/min, feed rate Z-axis: 1 m/min, spindle speed (min.): 100 rpm, quill stroke: 160 mm, table width: 320 mm, table length: 880 mm, X-500, Y-250 , Z- quill stroke 160 , W- traverse path machine head 480 , table 880 x 320 , max. 320 kg , fixture SF 32 , 100-9000 rpm , 5 kW , 60 Nm , Heidenhauin TNC 124 Ndjdpeq R Rb Hofx Aa Rsa Many accessories

Condition: excellent (used), Control: Heidenhain TNC 124 Travel paths X/Y/Z: 500/250/160 mm Travel path W: 480 mm Clamping area (L x W): 885 x 320 mm Ndodpfxsyvrfde Aa Rea Permissible table load: 250 kg Distance table – spindle nose: 0 – 605 mm Feed rate X/Y: 1 – 2000 mm/min Feed rate Z: 1 – 1200 mm/min Tool quick-change system: SF 32 Stepless speed range: 9200 rpm Drive power: 5 kW Required space (W x D x H): 1850 x 2550 x 2400 mm

Condition: good (used), functionality: fully functional, Machine weight: 1725 kg Total machine power: 3 kW Table clamping surface: 800x400 mm Longitudinal table movement - x-axis: 600 mm Transverse table movement - z-axis: 400 mm Ndodjvzkzcspfx Aa Rea Vertical table movement - y-axis: 400 mm Spindle taper: ISO 40 Spindle speed: 40-2000 rpm Working longitudinal feed - x-axis: 8-400 mm/min Working transverse feed - z-axis: 8-400 mm/min Working vertical feed - y-axis: 8-400 mm/min Rapid feed x/z/y: 2000/2000/1000 mm/min Max. workpiece weight: 400 kg

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, High-precision drilling and milling machine Fehlmann model Picomax 54 Heidenhain TNC 310 very good condition Technical Data: >> Year of construction: 2001 >> Travel X/Y/Z 500/ 250/ 160 mm >> Travel distance W 480 mm >> Clamping surface (L x W) 885 x 320 mm >> Permissible table load 250 kg >> Distance table - spindle nose 0 - 605 mm >> Feed speed X/Y 1 - 2000 mm/min >> Feed speed Z 1 - 1200 mm/min >> Tool quick-change system SF 32 >> Speed range infinitely variable 9200 rpm >> Drive power 5 kW >> Space requirement (W x D x H) 1850 x 2550 x 2400 mm About the machine : Nodpfxjukf Ncs Aa Rsda We offer a high-precision drilling and milling machine Fehlmann model Picomax 54 in very good condition. It has a Heidenhain TNC 310 contouring control. The program creation in the user-friendly Heidenhain plain text dialog is particularly easy. HEIDENHAIN TNCs are workshop-oriented contouring controls with which you can program conventional milling and drilling operations directly on the machine in easy-to-understand plain-language dialog. The machine runs very smoothly at maximum speeds. Mechanically and electrically tested. Take the opportunity to view and try out this machine under power on site.

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, High-precision drilling and milling machine Fehlmann model Picomax 54 Heidenhain TNC 310 Very good condition Ndodpfxoyu Snzs Aa Roa Technical specifications: >> Year of manufacture: 2000, Machine no. 14000258 >> Travel range X/Y/Z: 500 / 250 / 160 mm >> Travel range W: 480 mm >> Clamping surface (L x W): 885 x 320 mm >> Permissible table load: 250 kg >> Distance table to spindle nose: 0 – 605 mm >> Feed rate X/Y: 1 – 2000 mm/min >> Feed rate Z: 1 – 1200 mm/min >> Tool quick-change system SF 32 >> Infinitely variable spindle speed: up to 9200 rpm >> Drive power: 5 kW >> Footprint (W x D x H): 1850 x 2550 x 2400 mm Accessories: >> Tool holders >> Heidenhain probe >> Operating manual, electrical diagrams, machine books About the machine: Offered here is a high-precision drilling and milling machine, Fehlmann model Picomax 54, in very good condition. It is equipped with a Heidenhain TNC 310 contouring control. Program creation is particularly easy thanks to the user-friendly Heidenhain plain text dialog. HEIDENHAIN TNCs are workshop-oriented contouring controls that enable conventional milling and drilling operations to be programmed directly at the machine using the easily understood plain text dialog. Even at maximum spindle speeds, the machine runs very smoothly. Mechanically and electrically tested. Take the opportunity to view and test this machine under power on site.

Condition: excellent (used), Year of construction: 2018, CNC control: Fanuc Series Oi-MF New machine, only 150 spindle hours - Flat guideways - Gearbox - Internal cooling - Various tool holders and 1 vise Travel paths X-travel 850 mm Y-travel 530 mm Z-travel 530 mm Spindle nose (to table surface) 100-630 mm Spindle axis to column surface 590 mm Table Table size 530 x 950 mm Maximum table load 800 kg T-slots (W x NO. x P) 18 x (5) x 100 mm Spindle Nedpfx Aswa Ip Hea Rsda Spindle speed 8000 rpm Spindle mount BT-40 Spindle power 7.5/11 kW Feed rate Rapid positioning speed 20 / 20 / 20 m/min. Cutting feed rate: 1 – 10,000 m/min. Automatic tool changer Number of tools: 24 Tool taper: BT-40 MAS Tool holder bolt: P-40T (45°) Max. tool diameter: Ø 80 mm Max. tool diameter (no adjacent tool): Ø 150 mm Max. tool length: 250 mm Max. tool weight: 7 kg Tool change time (tool to tool): 2.5 sec Tool change time (chip to chip): 6 sec Machine dimensions: Floor area: 2450 x 2700 mm Machine weight: 6000 kg Max. machine height: 2900 mm Air supply connection: 7 kg/cm2

Condition: excellent (used), Control: Heidenhain TNC 310 With dividing head Travel X/Y/Z 500/250/160 mm Travel W 480 mm Clamping area (L x W) 885 x 320 mm Permissible table load 250 kg Distance table to spindle nose 0 – 605 mm Feed rate X/Y 1 – 2000 mm/min Feed rate Z 1 – 1200 mm/min Tool quick-change system SF 32 Speed range (infinitely variable): 9200 rpm Drive power 5 kW Nodpfewkrn Isx Aa Reda Space required (W x D x H) 1850 x 2550 x 2400 mm

Condition: excellent (used), Year of construction: 1999, Engel ES 1800/350 HL Ndedpfx Aaoxvtnqj Rsa Year of manufacture: 1999 Clamping force: 350 tons Screw diameter: 60 mm
