Fine blanking press

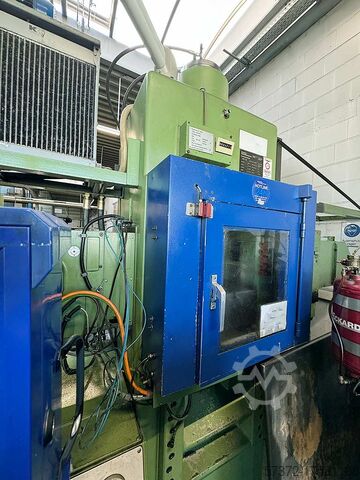

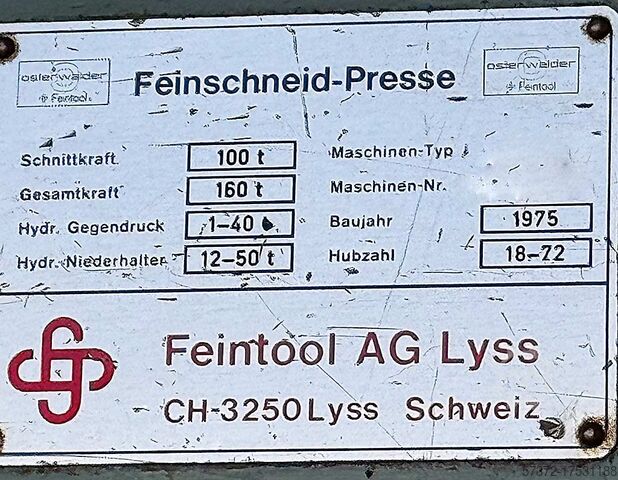

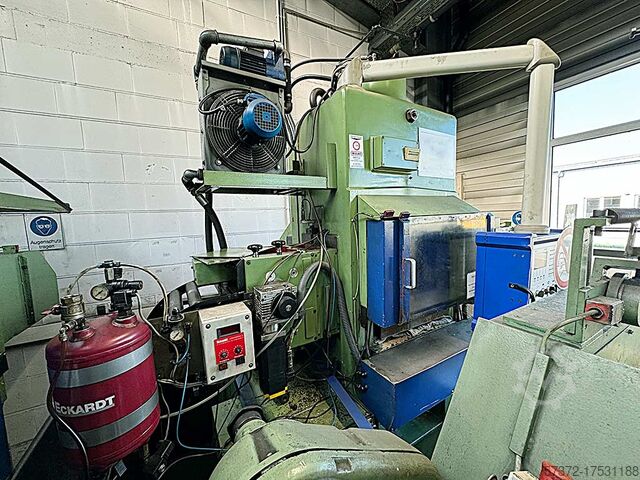

FEINTOOL GKP F 160

Year of construction: 2003, condition: ready for operation (used), There are 3 retrofit Feintool fineblanking presses with controls from Pneutronik available. 1) Feintool GKP-F 160, year of manufacture: 2001, cutting force: 100t, total pressing force: 160t, head pressure: 40t, table pressure: 50t, stroke rate: 70/min, power: 22kW, max. material thickness: 6mm, stroke height: 62mm, machine dimensions X/Y/Z: approx. 1800mm/1800mm/2800mm, weight: approx. 9000kg, control: Pneutronik. 2) Feintool GKP-F 160, year of manufacture: 2003, cutting force: 100t, total pressing force: 160t, head pressure: 40t, table pressure: 50t, stroke rate: 70/min, power: 22kW, material thickness: 6mm, stroke height: 60mm, machine dimensions X/Y/Z: approx. 1800mm/1800mm/2800mm, weight: approx. 9000kg, control: Pneutronik. Presumably there is bearing damage to the flywheel. 3) Feintool GKP-F 250, year of manufacture: 2000, total pressing force: 250t, head pressure: 75t, table pressure: 75t, ejector force: 18t, material thickness: 10mm, lifting height: 61mm, machine dimensions X/Y/Z: approx. 2100mm/3100mm/3200mm, weight: approx. 14500kg, control: Pneutronik. Presumably there is bearing damage to the worm shaft. Documentation available. On-site inspection is possible. Hjdeu Dalyepfx Ahzspa

Condition: ready for operation (used), Year of construction: 1996, 630T press retrofitted in 2010 by the company LITOSTROJ RAVNE Hpedpfx Ashh Hwlehzsa Capacity: 630 tons Total power: 15 - 630 tons Ring power: 10 - 230 tons Lifting power: 50 tons max Back pressure power: 5 - 120 tons Ejection power: 22 tons max Max slide stroke: 180 mm Ring race: 30 mm Back pressure stroke: 30 mm Slide surface: 900 x 900 mm Table surface: 900 x 900 mm Number of strokes: 28 - 72 s.p.m. Power requirement: 80 kW Default configuration

Year of construction: 1992, condition: used, grinding height 50 mm grinding width 120 mm grinding wheel diameter 600 mm total power requirement 85 kW weight of the machine ca. 9500 kg D I S K U S (Germany) CNC Controlled Double Sided Vertical Spindle Surface Grinder with Rotary Workpiece Feed System and IONIC Size Control Model DDS 600 III PLM - CNC Year 1992 erial No. 7924 _____ Grinding wheel Ø x bore x height, each 600 x 150 x 75 mm Approximate Workpiece dimensions: Grinding height, approx. 1.5 – 50 mm Grinding width, appox. 20 - 120 mm Vertical quill adjustment, each, approx. 150 mm Infeed of grinding wheels via CNC 0.0001 mm Feed of workpiece transportation device, infinitely variable 40 – 235 mm/sec Grinding wheel speed, each (30 m/s) 191 - 955 rpm Grinding spindle drive, each infinitely variable 37 kW Hpodpfx Ast Hw Najhzoa Total electrical load, approx. 85 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features * SIEMENS CNC Control, Model SINUMERIK 810 G, with monitor, for 4 axes i.e. * Movement of 2 spindle quills, dressing device, WP Rotation. Direct programming of Grinding Process data on keyboard. In connection with a IONIC Size Control No. 17 A / 68.000 with two tracers for measuring the thickness of the workpieces after grinding process, and corresponding infeed of the grinding wheels. Continuous display of measuring results on the monitor, with statistics, workpiece counter, etc. Digital Display Ampere for both grinding wheel drives and for grinding spindle speeds, etc. . * Positioning control device for supervising the height of the lower grinding wheel.. * Double column design as a portal for extra stability and higher accuracy * Rotary workpiece transportation device with infinitely variable feeds. The workpieces are Manually stacked in a device and forwarded by a transportation carrier disk thru the grinding wheels, there are two WP- down holders, one equipped with a overheight stop-control. * Angled grinding wheel dressing device, with automatic dressing process, integrated in the control as CNC axis, with safety switch-off. * Separate large switch cabinet. * Automatic central lubrication. Large pneumatic control system * Large Coolant device 6 (F) with filtering unit and magnetic separator. * Various Grinding wheels, WP transport carrier disks, 2 flanges, large Olimist separator, etc. This machine is very suitable for simultaneous double-sided grinding of large series of workpieces, e.g. punched parts, piston rings, hydraulic parts, rotors, distance rings, etc. Condition : Very good. Machine can be soon inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: excellent (used), Year of construction: 1987, pressure 320 t plate thickness 0 mm no. of strokes 80 Hub/min pressing capacity total 320 t Hjdjvwgl Njpfx Ahzjpa stroke 30 - 80 mm table surface area unten: 630 x 740 mm table surface area oben: 630 x 630 mm total power requirement 60 kW This fineblanking press FEINTOOL HFA 320 was completely overhauled in 2019 and is in new condition with new CE mark MAIN RAM total force (nominal) 320 to stroke min. 30 mm stroke 80 mm V-RING nominal force 160 to stroke 30 mm COUNTER RAM nominal force 80 to stroke 30 mm TOOL DIMENSIONS lower table - width 630 mm lower table - depth 740 mm upper table - width 630 mm upper table - depth 630 mm daylight max. 320 mm ELECTRICAL SPECIFICATIONS total power consumption 60 kW

Condition: used, Year of construction: 1988, Technical details: pressure: 630 t plate thickness: 16 mm Total force (nominal): 630 to stroke: 30 - 150 mm Hedpfx Ahevmht Hszepa knife-edged ring capacity: 320 t Nominal force: 160 t : 910 x 1050 mm : 900 x 900 mm dayligth: 410 mm ram adjustment: 120 mm plate width: 40 - 450 mm plate thickness: 0,5 - 16 mm : 1 - 1000 mm total power requirement: 100 kW weight of the machine ca.: 28 t dimensions of the machine ca.: 4.50x2.20x2.80 m Press Feintool + feeding unit *

Condition: good (used), Year of construction: 1998, grinding wheel diameter: 915 mm, overall weight: 14,000 kg, GIUSTINA Grinder R242 to ground big bearings (up to 800mm). All machine's actions are controlled by Bosch Control. Beside controlling parts grinding process, the NC programs are also an operator guide for the machine set up and a source of information about wheel wear, thus allowing the operator to check wheels without opening the hood. Hpjdpfx Ahortr D Iezoa Equipped with: Bosch CNC Control Specifications: Wheel Rotation Axis: Horizontal Grinding Wheel Size (OD): 915 mm Grinding Wheel Size, Usable Width: 65 mm Grinding Wheel Size, Peripheral Speed: 30 ms Spindle Motors: 75 kw Grinding Feedrate: 0.1 - 1000 mm/min Spindle Type: Moving Quill Angular Contact Spindle Bearings (Precision): ABEC-7 (ISO4) Slide Position Accuracy: 0.001 mm Coolant Flow Rate: 600 l/min Work Capacity (Approx) Rotary: 20 -200 Dia. In.

Condition: used, Year of construction: 1995, Technical details: grinding height: -- mm grinding width: 220 mm grinding wheel diameter: 762 mm total power requirement: 90 kW weight of the machine ca.: 13 t grinding spindle 1 drive:: 37 kW grinding spindle 2 drive:: 37 kW Hodewi Nh Nepfx Ahzjpa Grinding machine for pre-grinding the connecting rod With 2 replacement spindle motors *

Condition: good (used), functionality: fully functional, grinding wheel diameter: 720 mm, grinding width: 225 mm, Double-disc fine grinding machine Highest stability thanks to full granite construction Visualized control Siemens S7 control Strong drive power, total 55 KW 3 separate drives with freely programmable rotation directions and ramps 6 runner discs Comprehensive service and monitoring software Working discs by arrangement (optional, extra charge) Auxiliary unit centrifuge (optional, extra charge) Hpedewrpawepfx Ahzja

Condition: reconditioned (used), controller manufacturer: BECKHOFF, CONTROLS .. PC controller BECKHOFF Offer for services of complete Overhaul of a Customer-Supplied Fineblanking Press FEINTOOL GKP 160 Scope of Overhaul • Complete disassembly into individual components • Inspection of all parts, including crack testing of critical components • Overhaul of the drive system, new motors • Reworking and precise alignment of all guideways • Complete overhaul of the hydraulic cylinders • Overhaul of the clamping tables • Installation of a new hydraulic unit • Renewal of the pneumatic system • Renewal of the electrical system Modernisation / Retrofit • Combined table • Servo feed systems • Central lubrication system • RAZIOL band lubrication • New brake/clutch unit • BECKHOFF PC-based control system with touch panel • PILZ safety control system • Implementation of CE conformity Notes • Special options and customer-specific extensions can be integrated upon request. • The images shown depict a reference machine. • The offer is based on the assumption that the essential mechanical components can be reconditioned and reused. In the event that new parts must be manufactured, additional costs will apply. A list of the components concerned and their cost will be defined in the service contract. Hpsdpox D Ak Rsfx Ahzja Any affected parts will be presented to the customer for inspection and decision. We will be pleased to provide further information or answer any questions you may have.

Condition: used, Year of construction: 1983, Spiertz press Hodpfx Ahsxypzuszspa
