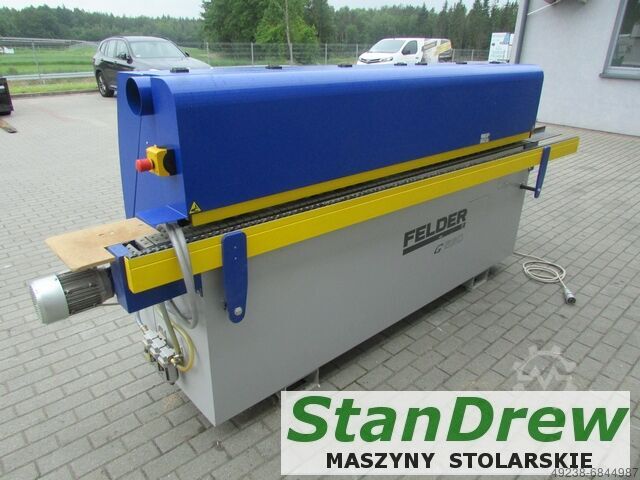

FELDER G560 edgebander, pre-cutter

FELDER G560

Condition: used, Year of construction: 2010, functionality: fully functional, feed rate X-axis: 9 m/min, total length: 3,600 mm, workpiece height (max.): 60 mm, total width: 1,100 mm, edge thickness (max.): 5 mm, power of the milling unit: 1,100 W, overall weight: 1,000 kg, type of input current: three-phase, height adjustment type: mechanical, input voltage: 400 V, extraction nozzle diameter: 120 mm, power: 7 kW (9.52 HP), frequency: 50 Hz, chip removal: 2 mm, tank capacity: 2 l, Further technical data • Including jointing unit with 2 diamond jointing cutters, up to max. 2 mm cutting depth • Edge thickness: 0.4 – 5 mm Dcodexdaz Tspfx Acwen • Workpiece thickness: 8 – 60 mm • Min. workpiece width: 70 mm • Min. workpiece length: 140 mm • Feed rate: 9 m/min • Continuous edge feeding via Ø 720 mm support table for PVC/ABS • Automatic edge feeding for coil materials (0.4–5 mm) • Individual feeding for strip materials • Guillotine shear for endless edge material up to 3 mm thick in rigid PVC/ABS • Teflon-coated glue unit (2 kg capacity for hot-melt adhesive granulate) • Glue application via glue roller • Pressure unit mechanically preloaded, 1 pressure roller + 2 follow-up rollers, setting via dial gauge • End trim saw unit • Multifunctional milling unit, 12,000 rpm, 2 × 0.55 kW – for radius, flush, and bevel trimming (thin edges) • Radius scraper unit, mechanically engageable, R = 2 mm • Surface scraper • Buffing unit, 2 motors, 1400 rpm • Control panel with LCD display and keypad • Workpiece feed via chain conveyor • Extendable workpiece support • Extraction ports: 2 × Ø 80 mm, 1 × Ø 120 mm • 3 × 400 V three-phase current, 50 Hz • Max. total connected load: 7.0 kW • Mechanical height adjustment for pressure unit and radius scraper unit • Versatile milling and buffing units for fine edge finishing • Compact footprint: L × W = 3600 × 1100 mm • Control panel with LCD display and keypad
