Fill 3D-ultrasonic cutter
3D-ULTRASONIC CUTTER

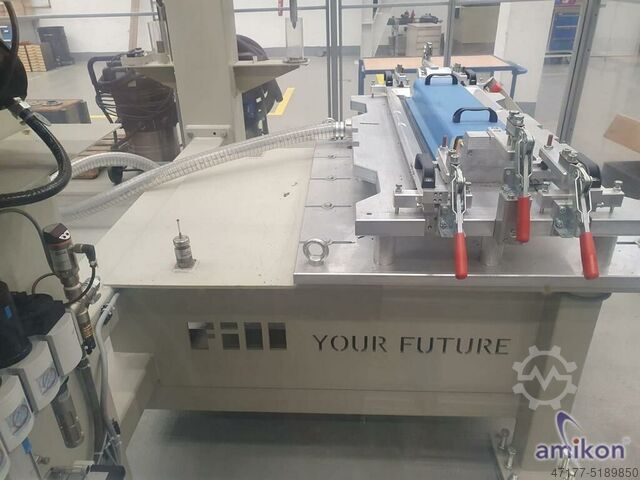

The 3D ultrasonic cutter from Fill enables three-dimensional contour cutting of fibre-reinforced plastics
by means of ultrasonic excited cutting systems.
Your advantages:
Ergonomic loading and unloading
Easy creation of trimming programs (NC control)
Space-saving system concept (alternative to robot)
High repeatability
High process stability
Simple and fast tool change
Possible integration into an overall process chain
The principle:

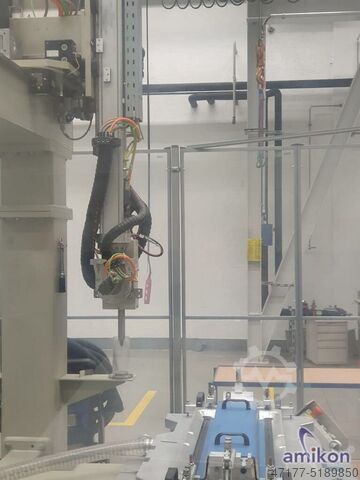

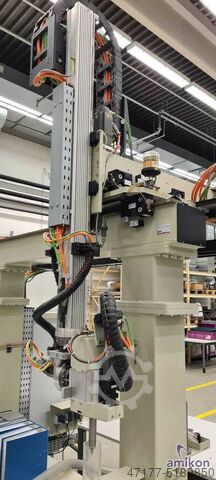

The linear axis gantry enables precise guidance of the ultrasonic knife with low space requirements and simple kinematics.
The Siemens CNC control 840 D allows the trimming device to be programmed like a machine tool.
Tool corrections or path changes can easily be made directly on the machine.
The machine is equipped with a 20 kHz ultrasonic cutting unit as standard.
However, it can also be equipped with alternative systems. The cutter is equipped with a separate rotary axis,
in order to be able to cut tight radii and save other axis movements (5 + 1 axes).
Technical data:
Machine data
component length max. 1.000 mm
component width max. 900 mm
component height max. 400 mm
path repeat accuracy +- 0,1 mm
positioning accuracy +- 0,2 mm
Load capacity approx. 30 kg
E-control Siemens Sinumerik 840D
