Flexo Printing Machine

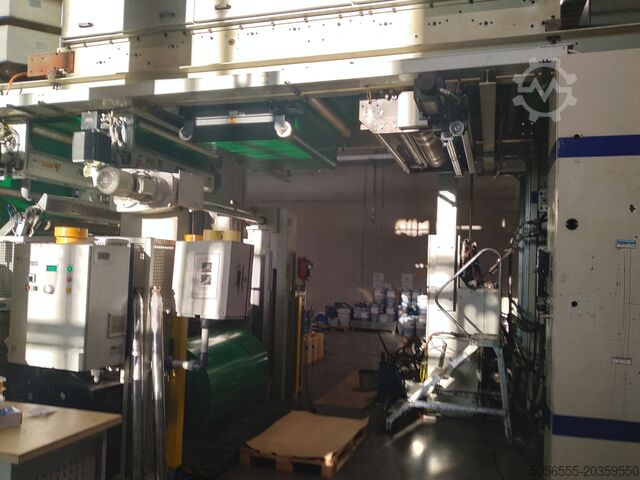

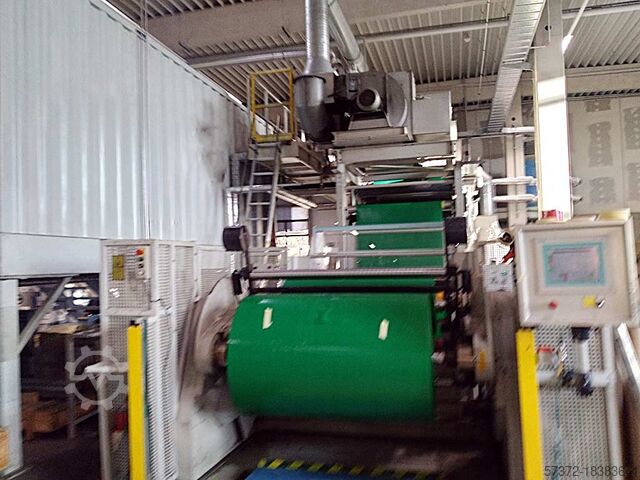

Fischer & Krecke Flexpress 16S-8

Condition: good (used), Year of construction: 2005, operating hours: 7,500 h, functionality: fully functional, machine/vehicle number: 3149, Fischer&Krecke Flexpress 16S with 1250 mm printing width. The machine is still in operation and can be viewed at any time. Fully functional and in well-maintained condition. Nlsdpfjxqmn Tjx Aa Iec

Condition: good (used), Year of construction: 2004, General information: • Manufacturer: Edale Ltd. (UK) • Model: Sigma • Year of Manufacture: 2004 • Condition: Very good, regularly serviced Nledswmfzgepfx Aa Iec • Availability: Immediately Technical Specifications: • Printing units: 8 x UV flexo o Configurable as 8 front-side or 4 front + 4 reverse • Die cutting units: 2 • Web Width: 510mm • Conversion Options: Roll-to-roll and roll-to-sheet • Turn bars: 2 (for front/back printing) • Register Control: Included • Drying System: UV curing on all units • Inspection: Camera-ready setup possible • Applications: Labels, films, flexible packaging, paper and carton • Included Accessories: Magnetic cylinders, printing cylinders, anilox rollers • Unwinder: Included • Rewinder: Included Additional details: • The machine is fully operational and has been well maintained. • Ideal for short to medium production runs with high flexibility. • All documentation available. _____ Technical and Optical Condition: • Technical: 9/10 (checked and in excellent running condition) • Optical: 8/10 (cleaned and ready for immediate end-user deployment) _____

Condition: good (used), Year of construction: 2007, Gallus EM 510 • Year of manufacture: 2007 • Maximum printing width: 510 mm • Printing units: 3 dual-driven print stations • Application: Self-adhesive label production _____ Printing Equipment • 3 flexographic printing units with dual-drive technology • Plate cylinders (1/8"): 3 × 88, 3 × 92, 3 × 96, 3 × 100, 3 × 108, 3 × 116, 3 × 120, 3 × 140 • Magnetic cylinders (1/8"): 2 × 96, 3 × 100, 3 × 108, 3 × 116, 3 × 120, 4 × 140, 3 × 176, 3 × 184, 2 × 192, 1 × 222 • 13 anilox rollers (various volumes: 4.1; 5.04; 6; 6; 6.3; 6.09; 8; 8.25; 9.58; 13; 13.51; 16.57; 30) • 2 brand new anilox rollers • 3 sleeve systems z=88 for varnishing (including mounting station) • Screen printing unit _____ Die-Cutting & Converting • 3 die-cutting stations • 2 stations equipped with adjustable counter-pressure cylinders (Spilker Variabase) • Laminating station • Waste matrix removal on rail system: o 2 matrix rewinders (upper/lower) • Double-spindle rewinder (roll-to-roll) • Insetter system for pre-printed webs • Register control for 5 stations (3 printing + 2 die-cutting, Sensotec) _____ Drying & Treatment • 3 × Uviterno UV curing systems (240 W/cm) • 2 × Lambda Technology NIR drying modules for water-based inks • Corona treatment 2 kW (SIT) Nljdpfx Asx Hacrja Ioc _____ Web Guiding & Control • E+L web guiding system with: o 2 ultrasonic sensors o 1 line sensor • E+L ELSCAN video inspection system • Web cleaning system • Complete set of anti-adhesive rollers _____

Condition: ready for operation (used), Year of construction: 1984, functionality: fully functional, W&H Triumph 1 Nsdpfx Asw Nvi Sea Ijlc 3 layers Photocell for preprinted reels

Condition: like new (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 010/Q, For sale is a paper bag making machine manufactured by the company GAPS from Italy. Web width: 670–1670 mm Roll diameter: 1200 mm Core diameter: 76 mm Paper weight: 90–140 g/m² Bag width: 240–540 mm Cut-off length with handles: 380–670 mm Gusset: 90–270 mm Handle height: 100 mm Handle width: 16 mm Patch length: 160 mm Njdpfxsww T Nae Aa Islc Patch height: 52 mm Patch roll diameter: 1200 mm Patch roll width: 100 mm Patch roll basis weight: 80–100 g/m² Maximum production speed: 120 cycles Connected load: 30 kW Weight: 24,500 kg Machine dimensions: 16,500 × 3,500 × 2,800 mm

Condition: used, Year of construction: 2013, General technical data: Machine type: Flexographic printing press Web width: 530 mm Number of colors: 10 Equipment & Configuration: • 1-side tape cleaner • 1-side corona treatment • Turning bar • Delam/Relam unit – 1 color • Cold foil unit – 1 • Die-cut station – 1 • Master gap unit – 1 • Rewind shaft – 1 • 10 UV GEW lamps • 3 sets of sleeves • 10 anilox rollers • 3 magnetic cylinders Nedpfx Aeyplyaja Iolc

Condition: used, Year of construction: 1995, Colors: 8 Nlodpfxjxzrx Ee Aa Ijc Gearless: No Fast Sleeve Change: No 4 motor CNC per printing deck: Yes Computer Supervision: Yes Web Width: 1320 mm Print Width: 1300 mm Min. Print Repeat: 380 mm Max. Print Repeat: 1100 mm Mechanical Speed: 350 m/min Working Speed: Up to 300 m/min Unwinding & Winding: Turret, FLYING SPLICE, Max. Reel Diameter 1000 mm Drying: 2 Zones, 4 Fans, 2 Gas Burners Video Camera: Yes Corona Treatment: No Web Guides: FIFE Viscosity Control: Yes Wash System: Yes, F&K Ceramic Anilox Rollers + Closed Chamber Doctor Blade 1x 80 L/cm, 2x 200 L/cm, 2x 120 L/cm, 4x 200 L/cm, 2x 320 L/cm, 3x 400 L/cm 200 sleeves, repeat between 390 mm and 1090 mm (8 for each repeat: 390, 400, 410, 420, 430, 450, 480, 510, 530, 540, 550, 630, 660, 670, 740, 780, 800, 850, 880, 930, 990, 1030, 1050, 1090 mm + 8 twinlock 740 mm + 8 twinlock 1030 mm) Mandrels for sleeves: 6x360 mm, 6x400 mm, 6x420 mm, 8x460 mm, 8x530 mm, 6x560 mm, 12x620 mm, 8x780 mm, 8x850 mm, 15x990 mm Printing cylinders: 8x380 mm, 8x390 mm, 12x400 mm, 8x410 mm, 8x450 mm, 6x460 mm, 7x470 mm, 4x490 mm, 12x500 mm, 8x510 mm, 12x530 mm, 8x540 twinlock, 6x560 mm, 8x570 mm, 8x580 mm, 8x590 mm, 12x620 mm, 9x640 mm, 12x660 mm, 6x670 mm, 6x730 mm Overall Dimensions: Length = 17 m, Width = 5 m, Height = 6 m Central Drum Diameter: 2280 mm

Condition: like new (used), Year of construction: 2022, functionality: fully functional, overall weight: 4,000 kg, power: 17 kW (23.11 HP), total width: 1,510 mm, total length: 6,500 mm, total height: 1,820 mm, Automatic paper roll paper lid machine with inline packing machine for 8oz and 12oz cups Speed - 70~100 pc/minute Raw material - One-side or two side (polyethylene)film coated/laminated paper (Like the PE coated paper; PLA paper; card boad paper with film) Nledpjxur Hisfx Aa Ijc Paper Lid Size - for 8oz and 12oz Working Power - 12kw Total Power - 17KW, Power Source - 3-phase, 380V, 50/60Hz, User Need To Buy Air Compressor

Condition: good (used), Year of construction: 2002, machine/vehicle number: 0102002, Semi-automatic angle opening Very good condition 3 months functional guarantee Print format: 1000 mm x 1500 mm max. sheet size: 1050 mm x 1550 mm max. screen frame: 1370 mm x 1850 mm Squeegee pre-squeegee height adjustment: 40 mm Squeegee angle adjustment stepless: + / - 50 - 90 ° Support bar height adjustment: 0 - 100 mm stepless Maximum material thickness: 100 mm Machine weight: approx. 1500 kg connected load: 400Volt/50HZ - 5KW Air connection: 6 bar options: Njdpfx Ajrllhksa Iolc pneumatic screen frame clamping Squeegee pressure compensation adjustable via pressure regulator Stainless steel pressure plate Blowing air device All data without guarantee

Condition: excellent (used), Super offers on flexo KBA EVO XD 8 Colors gearless from 2018 with 1300 mm working width Nlodpfx Aaeyky Sas Ijc
