Decanter centrifuge

Flottweg

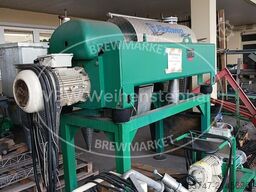

Flottweg three-phase decanter, Z4D-3/441, last used in a fruit juice plant. Inner drum diameter: 420 mm Inner drum length: 1245 mm Drum wall thickness: 10 mm The medium to be separated is fed into the hollow center axis of the decanter. Centrifugal force causes the solids to collect on the drum shell. A cylindrical-conical screw conveyor transports the ring of solids to the discharge openings, where it is ejected into the solids housing. The two liquid components separate according to their specific density and form two hollow liquid cylinders. The diameter of the liquid rings can be adjusted using a peeling disc and overflow weir. One of the two phases is discharged without pressure and one is discharged under pressure via the paring disc. The moisture content of the solids and the purity of the liquids can be controlled by: - Varying the phase separation discs and paring diameter - Decanter speed - Screw speed
Additional title: 3-phase decanter
Max. bowl speed: 4000 r/min
Max. sediment-density: 1 g/cm³
Max. ambient temperature: 100 °C
Mass moment of inertia: 15.5 kgm2 with an empty drum
Weight: 2250 kg
Material: housing from stainless steel 1.4301 (AISI 304); drum made of high-strength cast stainless steel 1.4463
Dkjdpfx Aeyr Iccsf Nei
Position: free standing
Base construction: Horizontal decanter drum in steel frame, on square tube frame with dome feet
Features: Base with rubber mountings, electric motor (Loher 180 M, 22 kW)
