Power chuck & zylinder & TubeFORKARDT
3KTNCV-200-45
Power chuck & zylinder & Tube
FORKARDT
3KTNCV-200-45
Fixed price plus VAT
€450
Condition
Used
Location
Willich

Show images
Show map
Machine data
- Machine type:
- Power chuck & zylinder & Tube
- Manufacturer:
- FORKARDT
- Model:
- 3KTNCV-200-45
- Condition:
- reconditioned (used)
Price & Location
Fixed price plus VAT
€450
- Location:
- 47877 Willich, DE
Call
Technical details
- Overall weight:
- 30 kg
- Chuck outer diameter:
- 200 mm
- Three-jaw chuck diameter:
- 200 mm
- Short taper mount:
- 6 mm
- Through hole:
- 45 mm
Details about the offer
- Listing ID:
- A194-15671
- Update:
- 02.08.2025
Description

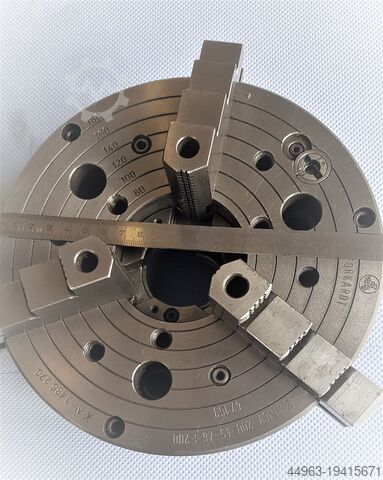

Three-jaw chuck and one three-jaw chuck for spare parts
FORKARDT KTNCV 200-45, three-jaw power chuck; the listed price is for one three-jaw chuck without stepped top jaws
Price for one set of base jaws: €150.00
-----
Jaw stroke via clamping cylinder and drawtube
Chuck No. 1485270 with through-hole clamping (through bore).
-----
Cylindrical flange mount according to DIN 55027
Short taper, taper size: KK6
-----
Three-jaw power chuck with quick-change system
Also suitable for reversible base jaws, type: FGB 200
-----
Jaw interface:
Base jaw type: spiral serration;
Kdsdpewuux Defx Afpeu
Designation → Size: FGB200, SGB200
-----
Drawtube connection M52 x 2 mm
Cylindrical mount for spindle flange ø 170 x 6 mm
Mounting bolt circle for 3x taper screws approx. 135 mm
-----
The chuck is in as-new condition.
Weight without hard jaws approx. 25 kg
-----
Delivery without base or top jaws
*If you have any questions, we are happy to assist.
*Shipping costs for international deliveries on request.
The listing was translated automatically. Translation errors are possible.
FORKARDT KTNCV 200-45, three-jaw power chuck; the listed price is for one three-jaw chuck without stepped top jaws
Price for one set of base jaws: €150.00
-----
Jaw stroke via clamping cylinder and drawtube
Chuck No. 1485270 with through-hole clamping (through bore).
-----
Cylindrical flange mount according to DIN 55027
Short taper, taper size: KK6
-----
Three-jaw power chuck with quick-change system
Also suitable for reversible base jaws, type: FGB 200
-----
Jaw interface:
Base jaw type: spiral serration;
Kdsdpewuux Defx Afpeu
Designation → Size: FGB200, SGB200
-----
Drawtube connection M52 x 2 mm
Cylindrical mount for spindle flange ø 170 x 6 mm
Mounting bolt circle for 3x taper screws approx. 135 mm
-----
The chuck is in as-new condition.
Weight without hard jaws approx. 25 kg
-----
Delivery without base or top jaws
*If you have any questions, we are happy to assist.
*Shipping costs for international deliveries on request.
The listing was translated automatically. Translation errors are possible.
