Milling machine

FPT Industrie

Condition: excellent (used), travel distance X-axis: 1,500 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 600 mm, controller manufacturer: Heidenhain, controller model: iTNC530, spindle speed (max.): 18,000 rpm, spindle nose: hsk 63, number of spindles: 30, Equipment: chip conveyor, documentation/manual, FPT vertical machining center model RAID Travels 1500X1100X600 mm 30-position tool changer Kdjdjx H Iylopfx Afvoh HSK 63 spindle, 18,000 RPM (overhauled in 2025) CNC HEIDENHAIN iTNC 530 Remote electronic handwheel Chip conveyor

Condition: used, Technical details: spindle diameter: 150 mm x-travel: 10000 mm y-travel: 2500 mm bore spindle stroke: 700 mm ram stroke: 700 dimension of the ram: 340 x 340 mm spindle taper ISO: 50 Speed of boring spindles: 1,25 - 1250 U/min. feed speeds infinitely variable: 1 - 5000 mm/min rapid traverse: 5 m/min total power requirement: 120 kW weight of the machine ca.: 115 t Kjdpfx Afjwg R Swovsdh dimensions of the machine ca.: 15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways *

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 1,500 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, rotational speed (max.): 7,000 rpm, spindle motor power: 34 W, Equipment: documentation/manual, rotational speed infinitely variable, Travelling column milling machine used with CNC H. TNC-530 Ksdpfsxyw Tfjx Afvodh

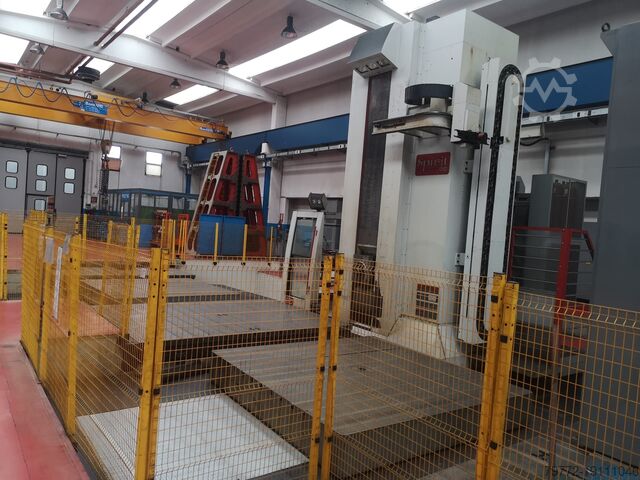

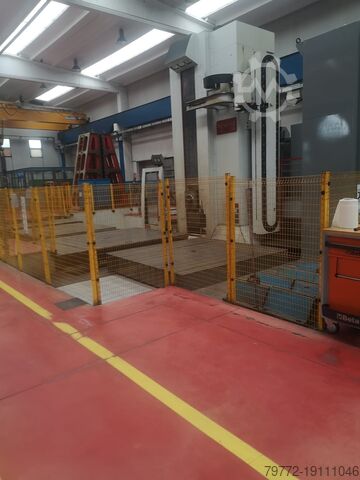

Condition: good (used), Year of construction: 2000, machine/vehicle number: 7853, travel distance X-axis: 5,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 2,000 mm, table length: 6,000 mm, table width: 2,000 mm, table load: 17,000 kg, Travelling column milling machine | FPT Sirio-M50 - Heidenhain control system - 60-position automatic tool changer - Coolant treatment and filtration unit - Chip conveyor - Cooling unit, manufacturer Deerosdassi (Italy) - Electrical cabinet - Full machine enclosure (protective housing) Ksdpfx Afsxzzlhevodh An inspection is possible at any time by appointment.

Condition: used, Year of construction: 2007, x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm Control Sinumerik 840 D Siemens distance between columns max. 3.000 mm passage max. 1.950 mm distance spindle center to table max. 1.800 mm distance spindle nose and table 1.350 / 1.500 mm type P 8005020/00-4 turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 20 kW max. Torque 48 Nm tool taper HSK-A63 DIN 69063 Spindle Extension 450 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° type P 8002320/00-4 turning speed range - main spindle 20 - 5.000 min/-1 power capacity - main spindel 40 kW max. Torque 1.100 Nm tool taper HSK-A100 DIN 69063 Spindle Extension 300 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° Kedpsvy Ihdsfx Afvjdh table surface area 4.000 x 2.200 (2x) mm max. table load 12 / 20 t height over floor 700 mm number of T-slots 11 + 19 T-slot - width 28H7 mm T-slot - distance 200 mm number of toolpositions 327 pos. number of toolpositions HSK A63: 156 pos. number of toolpositions HSK A100: 171 pos. max. tool diameter HSK A63: 52 mm max. tool length HSK A63: 250 / 500 mm max. tool weight HSK A63: 5,0 kg max. tool diameter HSK A100: 315 mm max. tool length HSK A100: 500 / 800 mm max. tool weight HSK A100: 40,0 kg feed speeds X: max. 30.000 mm/min feed speeds Y/Z: max. 40.000 mm/min feed speeds B: 3.600 °/min feed speeds C: 2.160 °/min Accelaration X: max. 1,5 m/s² Accelaration Y/Z: max. 3,2 m/s² x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm b-axis +110° / -10 ° c-axis +/- 200 ° total power requirement 150 kVA dimensions of the machine ca. 25,0 x 12,0 x 7,0 m 5-Axis Gantry-Big-Machining-Center DROOP + REIN - TFS 22 40 DT D40 P - two Milling-Heads - ca. 4.000 Power On Hours - X-Achse 10.000mm (coupled) / 2x 5.000mm (single-table) - 3 axes simultaneously (X, Y, Z) - 2 positioning axes (B, C) - tools upon request

Year of construction: 2016, condition: ready for operation (used), - USED - TRAVELLING COLUMN MILLING MACHINE Kjdpfxsx Ru Azo Afvedh LONGITUDINAL TRAVEL: 6000 mm TRANSVERSAL TRAVEL: 1500 mm VERTICAL TRAVEL: 2500 mm RAPID FEEDS L-T-V: 35 m/min SPINDLE: 337- 5000 rpm; 42 kW; 1180 Nm WORKTABLE: 300 x 2500 x 7000 mm HEAD: ISO 50 ; MILLESIMAL POSITIONING ; A/B AXIS AUTOMATIC TOOL MAGAZINE: PICK-UP ; 12 POS CONTROL UNIT: HEIDENHAIN TNC 640 HIGH PRESSURE COOLANT: 20 Bar NOTE: AUTOMATIC HEAD CHANGE; COMPRESSED AIR INSIDE THE TOOL; RTCP; AUTOCAL SOFTWARE FOR AUTOMATIC CALIBRATION

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, 1 FPT SIRIO 8 milling machine from 1998 – CNC HEIDENHAIN TNC 430 X 8000 Z 2000 Y 1200 Rotary table 1500 x 1500 – travel 2000 Admissible weight 10 t Automatic head with 144 positions – speed 3000 rpm – 37 kW ATC with 60 positions – ISO 50 Chip conveyor Good working condition Ksdpex Nh Ubsfx Afvodh

Condition: used, Year of construction: 1990, Technical details: tube diameter: 42 mm wall strength: 25 mm round bar steel: max. Ø 20 mm square material: Rohr 25 x 25 mm bending radius max.: innen max: Ø 20 und außen max: Ø 170 mm bending speed: keine Angaben °/s tube pipe draw up length: 3000 mm Kdodeu Ibvuepfx Afvoh control: Software RC 7000 weight of the machine ca.: 2,8 t dimensions electric cabinet: 800 x 700 x 2000 mm dimension machine xH: 5,1 x 0,7 x 2,0 m Application: Machining of deformable tubes, rectangular tubes and round bars and square tubes. Description of the software RC7000, programming manual rectangular tube 42 x 20 x 2,5mm bending direction to the left Operation via control panel with monitor Accessories: -div. bending tools for tube Ø 25mm -12 div. collets -div. auxiliary and clamping devices *

Condition: good (used), Year of construction: 2002, functionality: fully functional, Technical details x-travel 2800 mm y-travel 2200 mm z-travel 800 mm Control Heidenhain iTNC 530 table surface area 3000 x 1200 mm tool taper HSK-A-63 spindle turning speed range 12000 U/min power capacity 18 kW feed range 35000 mm/min total power requirement 68,7 kW dimensions of the machine ca. 12,4 x 3,5 x 4,6 m Additional information The FPT DINO is a 5-axis portal milling machine designed for the precise machining of large components. With a cross travel of 2200 mm and a high-speed spindle with 12,000 rpm, this machine combines high machining volume with outstanding dynamics in finishing. Heidenhain iTNC 530 CNC path control Number of controlled axes (simultaneously): X/Y/Z/C/B Travels: X-axis (longitudinal travel) 2800 mm Y-axis (cross travel) 2200 mm Z-axis (vertical travel) 800 mm Kodpfxeyf A Nkj Afvsdh Machine length: 12,434 mm Machine width: 3,597 mm Machine height: 4,622 mm Coolant equipment (no coolant through spindle) Chip conveyor

Year of construction: 2011, condition: ready for operation (used), - USED - TRAVELLING COLUMN CNC MILLING MACHINE WITH ROTARY AND SHIFTING TABLE LONGITUDINAL TRAVEL: 8000 mm TRANSVERSAL TRAVEL: 1500 mm VERTICAL TRAVEL: 2500 mm RAPID FEEDS L-T-V: 35 m/min Kdedpfx Aswl R Agsfvoh TABLE SIZE: 2000 x 2000 mm TRANSVERSAL TRAVEL OF THE TABLE: 1500 mm HEAD: A/B AXIS AUTOMATIC ; CONTINUOUS ; ISO 50 ; 7000 rpm; 49 kW; 1180 Nm TOOL MAGAZINE: CHAIN-TYPE ; 80 POS CONTROL UNIT: HEIDENHAIN iTNC 530 ACCESSORIES: SWARF CONVEYOR ; PORTABLE HANDWHEEL ; LASER TOOL SETTER NOTE: WITH ROTARY TABLE 1500X1500 mm

Condition: used, Year of construction: 2001, Technical details: tube diameter: 74 mm wall strength: 5 mm tube diameter min.: 10 mm tube diameter max.: 74 mm round material: Stahl max: 40 mm control: Trumpf-Rohrtechnik IsoBend 2.0 bending radius max.: max: 300 / min: 65 mm bending angle max.: max: 195 / min: 0,1 ° bending speed: (°/s): 90 / (°/s²): 190 °/s tube pipe draw up length: 3000 mm work pressure of hydraulic: Betriebsdruck max: 300 bar total power requirement: 43 kVA Kdodpfx Asu Ibvhsfvoh weight of the machine ca.: 8,5 t dimension machine xH: 6,5 x 1,6 x 1,6 m dimension control panel: 0,8 x 0,6 x 1,4 m It is a multi radius bending machine with bending head and swivel arm. (Cold bending machine) Possible applications: only for processing pipes, round steels and wires made of steel, stainless steel and non-ferrous metals. Due to the cross slide of the bending head, the following advantages can be listed: -free programmable X and Y axes -level change cross slide: tical travel = 300mm (vert. position freely programmable) and max. horizontal movement 350mm -Bending forms of different sizes within a stack of bending forms can be approached as required. The bending direction is to the right. Control software Trumpf-Rohrtechnik IsoBend 2.0 Hydraulic unit with high-pressure multi-flow pump Mandrel retraction unit Slide rail (speed max. 362mm/sec. and acceleration max. 1100 mm/sec.) i.D. *

Year of construction: 1997, condition: ready for operation (used), - USED - TRAVELLING COLUMN CNC MILLING MACHINE WITH AUTOMATIC A/B-AXIS HEAD LONGITUDINAL TRAVEL: 4000 mm TRANSVERSAL TRAVEL: 1200 mm VERTICAL TRAVEL: 2000 mm Kdjdpfxjh Stzke Afveh RAPID FEEDS L-T-V: 15 m/min TABLE SIZE: 5000 x 2000 mm SPINDLE: 4000 rpm; 27 kW; 1200 Nm HEAD: A/B AXIS AUTOMATIC ; A 2,5°- B 2,5° ; ISO 50 ; 4000 rpm TOOL MAGAZINE: CHAIN-TYPE ; 30 POS CONTROL UNIT: SELCA S3045 WEIGHT: 25500 Kg ACCESSORIES: SWARF CONVEYOR ; PORTABLE HANDWHEEL NOTE: EXTENSION 400mm -ISO50 -6.500rpm; AUTOMATIC HEAD EXCHANGE; PERIMETER GUARDING

Condition: ready for operation (used), Year of construction: 2008, - USED - 5-AXIS BRIDGE-TYPE VERTICAL MACHINING CENTRE     X-AXIS TRAVEL: 1750 mm Y-AXIS TRAVEL: 1400 mm Z-AXIS TRAVEL: 600 mm RAPID FEEDS X-Y-Z: 35 m/min SPINDLE: 18000 rpm; 18,5-25 kW; HSK A63 TABLE SIZE: 1000 x 1200 mm MAX ADMITTED LOAD: 5000 Kg TOOL MAGAZINE: A CATENA ; 30 POS HEAD: A/B AXIS AUTOMATIC CONTROL UNIT: HEIDENHAIN iTNC 530 WEIGHT: 18000 Kg OVERALL DIMENSIONS: 6000 x 4000 x 3850 mm Kjdpfxjwl R Dds Afvodh ACCESSORIES: SWARF CONVEYOR ; PORTABLE HANDWHEEL ; LASER TOOL SETTER

Condition: used, Year of construction: 2001, Technical details: x-travel: 2500 mm y-travel: 1000 mm z-travel: 750 mm table surface area: 3220 x 1000 mm Workpiece weight approx.: 3000 kg spindle taper ISO: 50 milling spindle turning speeds: 20 - 5000 U/min feed speeds: 1- 30000 mm/min rapid traverse: 30 m/min total power requirement: 40 kW dimensions of the machine ca.: 6,9 x 4,1 x 3,7 m weight of the machine ca.: 21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger Ksdpfovptmwox Afvjdh RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders *

Year of construction: 2018, condition: ready for operation (used), - USED - 5-AXIS BRIDGE-TYPE CNC MILLING MACHINE LONGITUDINAL TRAVEL: 2500 mm TRANSVERSAL TRAVEL: 3500 mm VERTICAL TRAVEL: 1300 mm RAPID FEEDS L-T-V: 40 m/min TABLE SIZE: 3500 x 2500 mm HEAD: A/B AXIS AUTOMATIC ; A-axis ±185° - B-axis ±270° ; HSK A100 ; 12000 rpm Kdsdpfxowla Hne Afvjh TOOL MAGAZINE: CHAIN-TYPE ; 64 POS CONTROL UNIT: HEIDENHAIN TNC640 WEIGHT: 51370 Kg ACCESSORIES: HIGH PRESSURE COOLANT ; SWARF CONVEYOR ; LASER TOOL SETTER ; PAPER FILTER ; TOUCH PROBE ; PORTABLE HANDWHEEL
