Universal gantry milling machine

FPT Industrie STINGER

Condition: excellent (used), Year of construction: 2023, travel distance X-axis: 1,750 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 800 mm, table length: 1,200 mm, table width: 1,000 mm, spindle speed (max.): 18,000 rpm, Max. feed rate of interpolating axes m/min 35 Max. power installed kVA 65 Max. current requested A 93 Table length mm 1200 Dkedpox Dihisfx Ah Sog Table width mm 1000 Load capacity (centered and evenly distributed) kg 3000 Air flow required for the pneumatic system Nl/min 400 Working pressure of the pneumatic system bar 6 Distance between the table surface and the spindle nose mm 105-905 (in 4.13- 35.62) Max. horizontal passage mm 1430 Height of table surface over the floor mm 800 (in 31.49) The table has 18mm H11 T-slots (central slot H7) for the workpiece clamping, distance 100mm (9 slots).

Condition: excellent (used), Year of construction: 2018, CNC controller: HEIDENHAIN TNC 640 Dsdpfxsw Rmplj Ah Sskg Axes X-axis travel mm: 2.200 Y-axis travel mm: 2.200 Z-axis travel mm: 1.610 A-axis degrees: +185° Worktable Number of pallets: 4 Table dimensions mm: ø1.800x1.400 Maximum workpiece size (D x H) mm: ø2.850x2000 Max. workpiece weight kg: 4.000 Spindle Spindle speed rpm: 15.000 Spindle drive power kW: 63/73 (100/40%ED) Spindle torque Nm: 300/348 (100/40%ED) Cooling Cooling through the Spindle Center bar: 80 (Form A) Tank capacity: 2.500 Tool system Tool holder: HSK-100A Tool magazine slots: 304

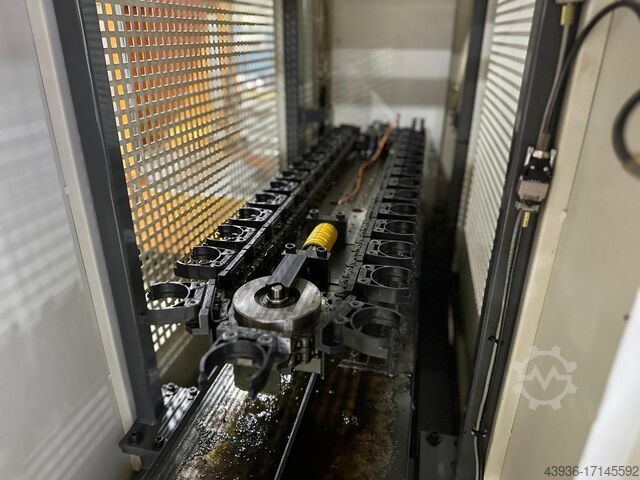

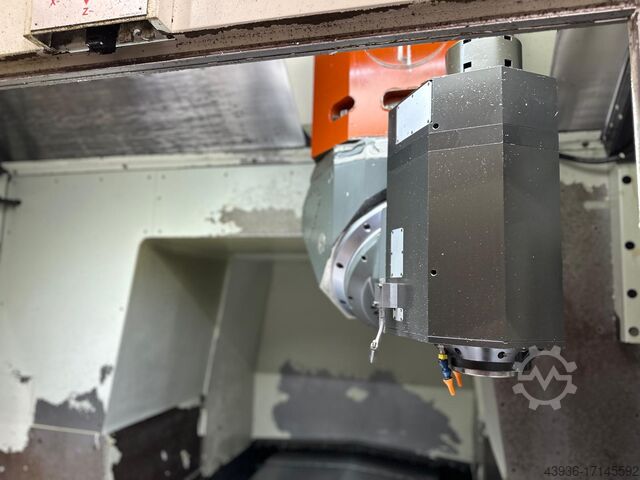

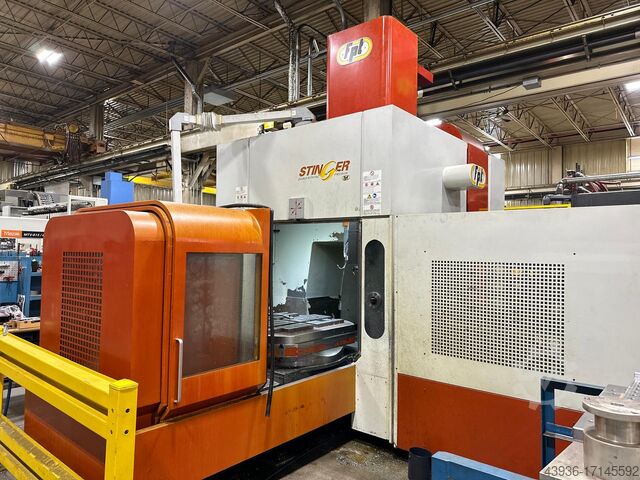

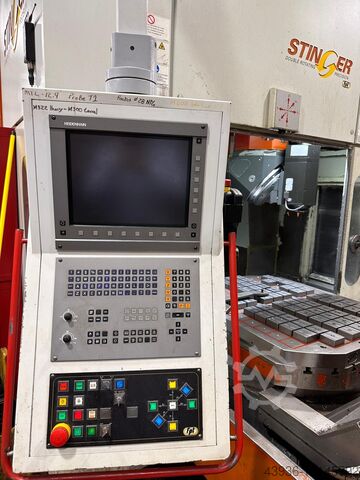

Condition: good (used), Year of construction: 2004, travel distance X-axis: 1,750 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 600 mm, CNC portal milling machine FPT - STINGER MACH-ID 8829 Manufacturer: FPT Type: STINGER Control: HeidenHain iTNC530 Year of manufacture: 2004 Chip conveyor Laser tool setter Portal Handwheel Dsdouni D Ejpfx Ah Sskg Full A/B-Automatic head High pressure coolant Specifications Metric US Standard X - axis 1750 mm Y - axis 1400 mm Z - axis 600 mm Table length 1200 mm Table width 1000 mm Table load 5000 Feed X - axis 35000 mm/min. Y-axis feed 35000 mm/min. Feed Z-axis 35000 mm/min. Tool holder HSK 63 ISO/Bt/Mk Spindle power 25 kW spindle speed 18000 rpm Tool changer 30 IKZ 20 Number of controlled axes 5 Chip conveyor Yes Cooling device Yes Dimensions (estimate) length 6000 mm width 4000 mm height 3850 mm weight 21000 kg Please note: The information on this page is given in good faith and to the best of our knowledge, and where possible, has been obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

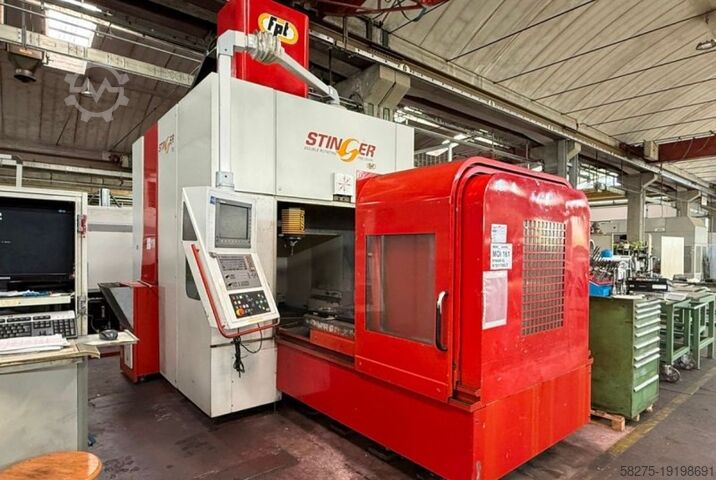

Condition: ready for operation (used), Year of construction: 2008, Main Drive Spindle speed range 18000 Number of axis 5 Movement X-Axis Movement 1750 mm Djdpfxjx D Hacj Ah Sokg Y-Axis Movement 1400 mm Z-Axis Movement 650 mm This 5-axis FPT STINGER XL CNC milling machine was manufactured in 2008. Ideal for complex and precise milling tasks, it offers advanced capabilities for a variety of applications. Consider the opportunity to buy this FPT STINGER XL CNC milling machine. Contact us for more information about this machine. Application Types Milling

Condition: excellent (used), Year of construction: 2019, X-axis 5,000 mm Y-axis 3,000 mm Z-axis 1,500 mm Table size 5,000 x 2,500 mm Tool holder HSK 63 Djdpox E S E Nefx Ah Sjkg Tool changer 60 positions Control HEIDENHAIN TNC 640 Including through-spindle coolant (IKZ) 40 bar Including simultaneous fork head Including complete documentation Including IKZ 40 bar

Condition: ready for operation (used), Year of construction: 2008, - USED - 5-AXIS BRIDGE-TYPE VERTICAL MACHINING CENTRE     X-AXIS TRAVEL: 1750 mm Y-AXIS TRAVEL: 1400 mm Z-AXIS TRAVEL: 600 mm RAPID FEEDS X-Y-Z: 35 m/min SPINDLE: 18000 rpm; 18,5-25 kW; HSK A63 TABLE SIZE: 1000 x 1200 mm MAX ADMITTED LOAD: 5000 Kg TOOL MAGAZINE: A CATENA ; 30 POS HEAD: A/B AXIS AUTOMATIC CONTROL UNIT: HEIDENHAIN iTNC 530 Djdpfx Ahowl R Ddj Sjkg WEIGHT: 18000 Kg OVERALL DIMENSIONS: 6000 x 4000 x 3850 mm ACCESSORIES: SWARF CONVEYOR ; PORTABLE HANDWHEEL ; LASER TOOL SETTER

Condition: good (used), Year of construction: 2013, Ref. -No.: 10450 Manufacturer: SHW Type: UNISPEED 5 Year of construction: 2013 Type of control: CNC Control: HEIDENHAIN iTNC 530 Storage location: Halberstadt Country of origin: Germany Machine-No.: 32XX X-Travel: 2000 mm Y-Travel: 2300 mm Z-Travel: 1300 mm B-Axis: 360 ° C-Axis: 360 ° W-Axis: 1500 mm Table Load: 15000 kg Dksdpfx Aexxpanoh Seg Max. Tool Weight: 25 kg Max. Tool Length: 500 mm Max. rotary table diameter: 1600 O Table speed range: 5 min/-1 Tool Taper: HSK 100 Tool Piece Magazine With: 150 Pcs./pcs. Turning Speed Range - Stepless: 22 - 8000 RPM Max. Torque: 40 Nm Feed Speeds X/Y/Z Axis: 2 - 30.000 mm / min axes: 5 Rapid Travel X/Y/Z: 30.000 mm / min acceleration: 2 m/s² Dimensions Of The Machine Ca.: 8,4 x 7,1 x 5,3 m Operating hours: 42.499 H Tool change time: 10 s Further information: automatic universal milling head, 360 x 1°; 180 x1° compact coolant system, make Knoll, type KF150/950 high pressure pump belt filter coolant temperature control Blum laser measuring system Renishaw RMP 60M infrared measuring system 140 tool holders HSK 100 included Machine can be inspected under power by appointment.

Condition: good (used), Year of construction: 2009, Ref. -No.: 10616 Manufacturer: DMG Type: DMU 210 P Year of construction: 2009 Type of control: CNC Control: Heidenhain ITNC 530 Storage location: Halberstadt Country of origin: Germany Machine-No.: 257XXXX X-Travel: 1800 mm Y-Travel: 2100 mm Z-Travel: 1250 mm B-Axis: -30 / +180 ° C-Axis: 360 ° Table Load: 8000 kg Clamping Area: 1.700 mm Tool Taper: SK 50 Spindle Speed: 10.000 RPM Max. Torque: 288 Nm Total Power Requirement: 38 kW No. Of Working Stations: 60 Internal cooling: 40 bar Holding torque: 22.700 Nm Dkodpfox R R Hcsx Ah Ssg Further information: - The DMG DMU 210 P 5-axis machining center is suitable for high-precision machining of large, heavy workpieces. The machine can be viewed under power.

Condition: good (used), Year of construction: 2014, Ref. -No.: 10553 Manufacturer: HANDTMANN / BAVIUS Type: HBZ Trunnion 120 Year of construction: 2014 Type of control: CNC Control: Heidenhain TNC 640 Storage location: Halberstadt Country of origin: Germany Machine-No.: 200XXXXX X-Travel: 1270 mm Y-Travel: 1100 mm Z-Travel: 900 mm Table Height: Ø 1200 mm Table Load: 2000 kg Max. Tool Weight: 20 kg Max. Tool Length: 90 x 200 / 24 x 400 mm Max. Tool Diameter: Ø 130 mm Tool Taper: HSK 100 Numbers Of Tools In Magazin: 40 Tool Piece Magazine With: 140 Pcs./pcs. Spindle Turning Speed - Stepless: 14.000 RPM Max. Torque: 15000 Nm Rapid Traverse X-Axis: max. 60 m / min Rapid Travel Y-Axis: max. 60 m / min Rapid Traverse Z-Axis: max. 60 m / min Machine length: 7500 mm Machine width: 5500 mm Machine Height: 3500 mm Weight Of The Machine Ca.: 26 t Dksdpfx Aox Hn A Tsh Ssg Rapid traverse C-axis: max. 25 RPM Rapid traverse A-axis: max. 20 RPM A-axis (swivel axis): - 30 / + 120 ° C-axis (rotary table axis): 360 ° Further information: - Horizontal machine, Y-axis arranged vertically - Machine stand designed as a welded construction - set up on height-adjustable precision wedge shoes, chip tray with cooling lubricant device, for external splash water cooling capacity: approx. 400 liters, with clean water pump, LP circuit, approx. 40 1/min at approx. 5 bar and rinsing nozzles on the Z-axis and/or the spindle - Complete safety housing - Stainless steel interior lining - Work area lighting - Manual loading door to the work area with polycarbonate safety window with glass front panel - Side viewing window to the work area with polycarbonate safety pane with glass front pane - Maintenance area freely accessible - HSK 100 hollow shank taper - Tool clamping via springs, tool release hydraulically - Tool clamping control - Cone cleaning - incl. spindle orientation
