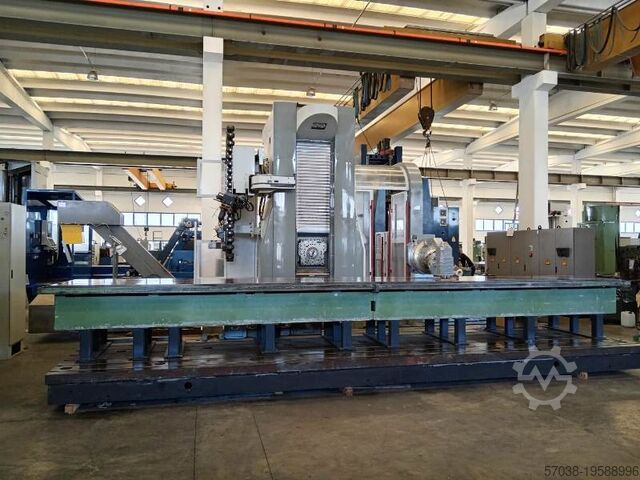

Floor type milling machine

FPT Industrie VERUS

Year of construction: 2020, condition: ready for operation (used), - USED - TRAVELLING COLUMN MILLING MACHINE LONGITUDINAL TRAVEL: 12000 mm Dcedpfozbnr Asx Amysl TRANSVERSAL TRAVEL: 1600 mm VERTICAL TRAVEL: 3600 mm RAPID FEEDS L-T-V: 30 m/min TABLE SIZE: 13000 x 2500 x 300 mm SPINDLE: 450 - 5000 rpm; 34 kW; 830 Nm; ISO 50 HEAD: UNIVERSAL AUTOMATIC A/B AXIS ; MILLESIMAL POSITIONING TOOL MAGAZINE: CHAIN-TYPE ; 100 POS CONTROL UNIT: HEIDENHAIN TNC 640 HIGH PRESSURE COOLANT: 40 Bar WEIGHT: 87480 Kg ACCESSORIES: SWARF CONVEYOR ; PAPER FILTER ; LASER TOOL SETTER ; TOUCH PROBE ; PORTABLE HANDWHEEL NOTE: ROTARY TABLE 1500X1500, 1,5 rpm, MAX ADMITTED LOAD 15.000 Kg; HEAD LOADING/UNLOADING DOUBLE CRADLE; MOBILE WORKING PLATFORM; PERIMETER FENCES; STATIC RTCP OF ROTATING TABLES; STATIC RTCP IN THE SPACE ; AUTOCAL; VIBRATION DETECTION PROBE; COOLING TANK 1500L; GREEN MODE FUNCTION

Condition: used, Year of construction: 2012, Technical details: max. wheel diameter: 260 mm gear width: 320 mm max. module: 5 weight of the machine ca.: 21 t dimensions of the machine ca.: 8,71 x 5,97 x 3,49 m no. of teeth: 1...999 max. helix angle: +45/-45 ° pitch min.: 0,1 mm pitch max.: 1000 mm X-axis: 345 mm y-axis: 250 mm Z-axis: 320 mm b-axis: 360 ° Dedpfx Amjy Amlljyecl c-axis: 360 °

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 6,000 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 2,000 mm, rapid traverse X-axis: 35 m/min, spindle speed (max.): 5,000 rpm, table width: 2,000 mm, table load: 15,000 kg, table length: 2,000 mm, CNC HEIDENHAIN ITNC530 HSCI ANNO 2016 Longitudinal X-travel: 6000 mm Cross Y-travel: 1250 mm Vertical Z-travel: 2000 mm Rapid feedrates: 35 mt./min. Semi-automatic accessory change Spindle motor power: 34 kW Constant power speed range: 400 – 5000 rpm Maximum torque: 830 Nm Maximum feed rate: 35,000 mm/min Acceleration: 1.5 m/s² Maximum spindle speed: 5000 rpm Hydrostatic rotary-translating table TRT15 Table size: 2000 × 2000 mm (15.000 KG) Universal bi-rotary head with thousandth-degree positioning Taper: BT 50 Double cradle for loading/unloading two milling heads, with dedicated management software Chain-type tool magazine, 40 positions, ISO 50 High-pressure coolant system, external/internal through the tool, with paper filter External pressure: 4 bar Internal pressure: 20 bar Through-tool compressed air coolant Chip conveyor with right-side discharge Dsdeyugbiopfx Amyscl Remote control panel

Condition: used, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,000 mm, spindle diameter: 150 mm, spindle speed (max.): 2,800 rpm, travel distance W-axis: 700 mm, X-AXIS TRAVEL: 6000 MM Y-AXIS TRAVEL: 3000 MM Z-AXIS TRAVEL: 1000 MM W-AXIS TRAVEL: 700 MM ISO 50 SPINDLE MOTOR POWER: 51 KW SPINDLE ROTATIONAL SPEED: 2800 RPM SPINDLE QUILL DIAMETER: 150 MM Dcedpfx Aeyb Rztjmysl SIEMENS 840 D CNC 2000 x 2500 mm rotary table, 1500 mm V-travel, 25 ton load capacity 80-station tool changer AUTOMATIC HEAD 1 AXIS MODEL KF-D4 2.5 ° Through-spindle coolant 2 x 2000 x 5000 mm clamping plates Chip conveyor
