Pallet racking system Galler OMEGA used 16600 x...

Galler Galler OMEGA gebraucht 16600 x 5400 x 1350 mm

RA1784
Pallet rack system Galler OMEGA used 16600 x 5400 x 1350 mm
Installation in a hall

Shelf height: 5.400 mm
shelf depth: 1.350 mm
clear field width: 3.200 mm
stored goods: pallets with stored goods
Deep storage: 1,350 mm
Storage arrangement: 1. stored goods on the floor
2. to 5 stored goods on pairs of tie bars,
Shelf load on pair of spars at daylight
Field width of 3.200 mm and : 2.100 kg
shelf height 1.500 mm
Field load: 8.4 to. at 1,500 mm buckling length (min. 4 fields)
→Alle Loads are understood to be with evenly distributed load.
Painting:
Upright frame: Sendzimier galvanized
Support beam: RAL 7035 light grey WITH RUST SPOTS (SUPERFICIAL)
Installation:
1 pc. one-sided shelf axis, standing on a hall wall
5 x 3,300 + 100 = total length 16,600 mm


Cedpjk Abbbjfx Agmjrh
consisting of:

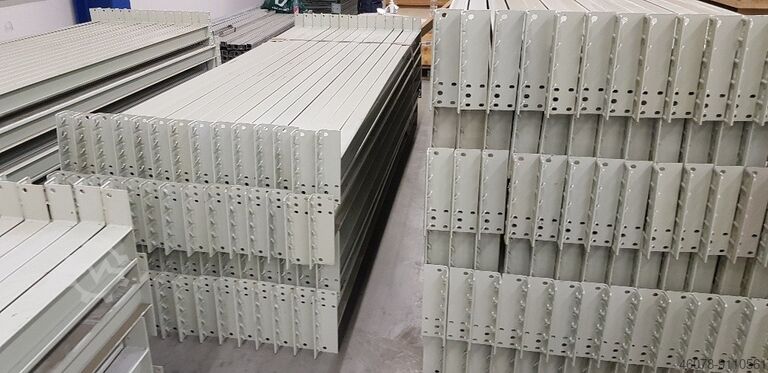

6 pcs. stand frame Galler Omega screwed
5.400 x 1350 mm

40 pcs. carrier beam Galler Sigma
3.200 mm

80 pcs. safety pins

Price net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, Würzburg

Optional if required

2 pcs. ram protection corner used
At the beginning or end and at passages
to protect the shelf stem

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.
We look forward to hearing from you.
With kind regards
Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
