Miscellaneous
Gallus TCS 250

Name: Gallus TCS 250
Brand: Gallus
Availability: InStock

Year of construction

2016

Condition

Used

Location

Germany

Show map

Machine data

Machine type:: Miscellaneous

Manufacturer:: Gallus

Model:: TCS 250

Year of construction:: 2016

Condition:: used

Price & Location

Location:: Germany

Call

Details about the offer

Listing ID:: A179-77046

Reference number:: 41152

Update:: 09.01.2026

Description

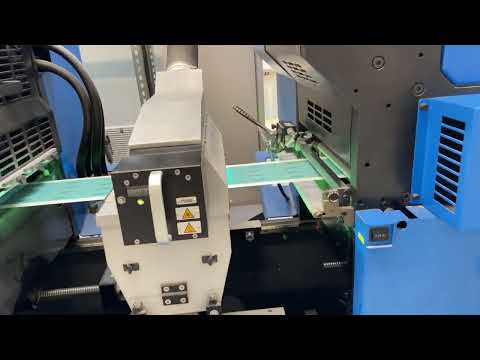

The Gallus TCS 250, manufactured by Gallus in 2016, is a high-performance label printing press designed for efficiency and precision. With a format of 265 mm and a print count of 2 million, this machine is currently available in stock and located in Germany.

This press is equipped with a range of advanced features to meet various printing needs. It operates at a speed of 11,000 impressions per hour and has a cylinder circumference of 254 mm, accommodating a web width of 265 mm. The hotfoil stamping speed is 8,000 cycles per hour, with a maximum print size width of 265 mm and a minimum of 130 mm, allowing for precise format adjustments in increments of 0.01 mm. The machine operates at a voltage of 400V for the main unit and 230V for peripherals, with a net frequency of 50Hz.

Key features include a feeding unit with web cleaning, corona pretreatment for enhanced adhesion, and trimming and suction capabilities. The press can handle paper weights ranging from 80 to 180 g/qm2 and carton up to 300 g/qm2 with a maximum thickness of 0.3 mm. It is compatible with commercially available adhesive bonds and supports UV offset printing. The configuration includes 4 printing units, 1 coating unit, 1 rotary die cutter unit, and a rotary hotfoil embossing unit.

Additional features include web inspection via the Powerscope 4000 manual system, a Uviterno Coldstar water-cooled drying model with UV capabilities, 4 trimming knives, mesh pulling monitoring, and an IR dryer. The maximum web diameter is 800 mm, and the press is equipped with remote maintenance capabilities, a plate tool, and maintenance tools for ease of use and upkeep.
Format: 265 mm

Equipment:
Speed: 11.000 T/h
Cylinder circumference: 254mm
Web Width: 265mm
Hotfoil Stamping Speed: 8,000 cycles/h
Max print size width: 265 mm
Min print size width: 130 mm
Format length graduation: 0,01 mm
Machine Voltage: 400V
Voltage Peripherals: 230V
Net Frequency: 50hz
Feeding Unit Web Cleaning
Corona Pretreatment
Trimming and Suction
Paper: 80 bis 180 g/qm2
Carton: up to 300g/qm2 at max. 0.3mm
Adhesive Bonds: commercially available
UV Offset
Printing Units: 4
Coating Units: 1
Rotary Die Cutter Units: 1
Rotary Hotfoil Embossing Unit
Web Inspection
Web Inspection type: Powerscope 4000 manual
Drying Model: Uviterno Coldstar
Water cooled
IR or UV: UV
Trimming Knives: 4
Mesh Pulling Monitoring
Dkodpfevfx A Ajx Ah Seg
IR Dryer
Max. Web Diameter: 800mm
Remote Maintenance
Plate Tool
Maintenance Tools
