Carcase press

Gannomat Concept 70 Easy

FLAT PANEL CASE CLAMP
GANNOMAT "CONCEPT 70 EASY 170"

Fully equipped in standard configuration with:
- Sturdy, torsion-resistant steel frame made with welded and bolted construction
- Lateral pressing beam with continuous pressure surface, equipped with a 25 mm thick coated support plate
- Counter-pressure surfaces (side pressure wall, base) are continuous, 25 mm thick coated support plates
- Electromotoric adjustment of the pressing beam via precision trapezoidal threaded spindles (with increased pitch and concentric accuracy) and high-performance carriage nuts with grease reservoir
- Pressing is performed by electromotor via worm gear motor (0.75 kW)

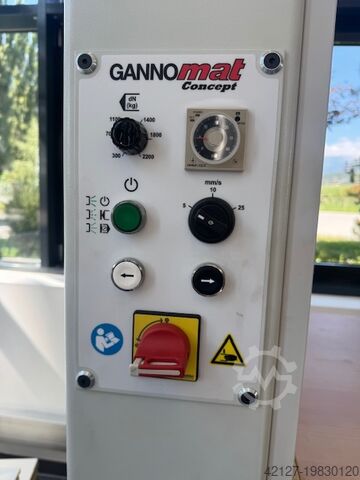

- The pressing force of the pressing beam is infinitely variable and electronically set via potentiometer, regulated by frequency converter, allowing completely wear-free pressure force control
Gusdpfew Sgnkjx Afpjh
- Pressing force for vertical pressing beam: min. 300 daN (kg) up to stepless max. 2200 daN (kg)
- Pressing and adjustment speed of the pressing beams with fine positioning, via 3-stage selector switch: 5 / 10 / 25 mm per second
- Jog mode for precise positioning of the pressing beam, e.g. for low pressing forces such as drawers, etc.
- Extremely simple operation via two separate pushbuttons; two motion sequences (open/close) can be selected via controller
- Freely adjustable pressing time preselection 0–30 min (switchable to seconds or hours), with individually programmable opening dimensions for both pressing beams
- Re-pressing function to increase or decrease the pressing force during the pressing process
- Working height/loading height: 200 mm
- Working dimensions:
Length min: 150 mm, max: 1300 mm
Height min: 150 mm, max: 1700 mm
Depth: 700 mm

Electrical connection: 400 Volt, 50 Hz, 16 A

Available: at short notice
