FLAT GRINDING MACHINE

Geibel & Hotz FS 60

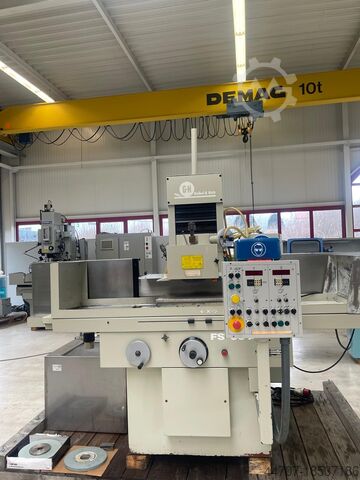

Year of construction: 2005, condition: ready for operation (used), General Data Machine weight 2010 kg Main Drive Spindle speed range 2860 Movement X-Axis Rapid Traverse 660 mm/min Y-Axis Rapid Traverse 360 mm/min Workpiece Workpiece weight 400 kg This GEIBEL & HOTZ FS 60 AC was manufactured in 2005. A robust surface grinding machine, it features a max workpiece size of 600 × 350 mm and a grinding wheel diameter of 300 mm. It supports a max workpiece weight of 400 kg and has a machine weight of 2010 kg. Consider the opportunity to buy this GEIBEL & HOTZ FS 60 AC surface grinding machine. Contact us for more information. Application Types Grinding Gsdpfx Aox D Sabea Ijtt

Condition: used, Year of construction: 2010, functionality: fully functional, 1 pc Surface Grinding Machine FS 640 SC with Fagor control Make: Geibel & Hotz Year of manufacture: 2010 Technical Data Working Area: Grinding area - Maximum grinding area 600 x 450 mm - Standard magnetic chuck size 600 x 400 mm - Clamping area (table to spindle center) 140 - 525 mm - Standard grinding wheel 300 x 50 x 76.2 mm - Table load incl. magnet 600 kg - Grinding spindle motor power approx. 3.7 kW - Total connected load approx. 11 kW Gtsdpfxex Dgvqe Aa Iet - Table speed 2 to 28 m/min - Cross/vertical feed speed 100-1000 mm/min Required space 3.95 x 3.16 x 2.47 m Machine weight approx. 2.1 t Equipment Machine-specific accessories, belt filter system, magnetic separator, extraction unit Magnetic chuck with adjustable holding force, automatic wheel dressing incl. compensation, Dressing diamond, balancing device, clamping device, 4 grinding wheels Technical data subject to change.

Condition: excellent (used), Year of construction: 1999, Geibel & Hotz FS 60 Compact Surface Grinding Machine Geibel & Hotz FS 60 Compact, Year of Manufacture 1999, Excellent CONDITION The machine comes from the technical center of a renowned German mechanical engineering company. Technical Data: Surface Grinding Machine GEIBEL & HOTZ Type FS 60 AC Year of manufacture: 1999 Electromagnetic chuck: 600 x 400 mm Table clamping area: 960/620 x 400 mm Max. longitudinal table movement: 660 mm Grinding width: 400 mm Max. cross movement with cross feed: 400 mm Max. cross movement with manual adjustment: 425 mm Max. distance spindle center to magnet plate: 425 mm Table speed: 2 - 28 m/min, infinitely variable Grinding wheel dimensions: Ø 300 x 50 x 76 mm Manual vertical feed: 1 graduation = 0.002 mm Manual cross feed: 1 graduation = 0.01 mm Power supply: 400 Volt, 50 Hz - Electromagnetic chuck GEIBEL & HOTZ, Type HPM 600 x 400, installation height 99 mm - Automatic depth feed for surface and plunge grinding with actual value digital display - Setting of depth increment via decade switch - Cross feed for surface grinding driven by motor or manually via handwheel - Hydraulic longitudinal table movement - Central lubrication for longitudinal table movement, Y+Z axis movements and lead screws - Mounted grinding wheel Ø 300 mm (actual Ø 290 mm) - Electrical control cabinet adjacent - Hydraulic unit integrated in machine base - Coolant device with paper band filter Required space (L x W x H): 2850 x 2250 x 2500 mm Weight approx. 2 tons (complete) Very good condition About the machine: Gtsdpfex H Nn Dsx Aa Iet Offered here is a Geibel & Hotz FS 60 Compact surface grinding machine. This universal surface grinder is in very good original condition. It comes from a facility where it was only occasionally used in the technical center for sample grinding. Very user-friendly controls. A grinding travel of 600 mm in the longitudinal axis and a cross travel of 400 mm makes it ideal for toolmaking, jig manufacture, and small-batch production. The comprehensive standard equipment and user-friendly handling distinguish this machine series. The robust spindle head design and dual V-guideway construction for the longitudinal and cross axes guarantee lasting precision. The intuitive operation of the controls simplifies use and significantly increases productivity. The guideways are lubricated regularly through the central lubrication system. The Geibel & Hotz was mechanically and electrically inspected by us. Take advantage of the opportunity to inspect and test the Geibel & Hotz under power on our premises. Further surface grinding machines from renowned manufacturers can be found on our website.

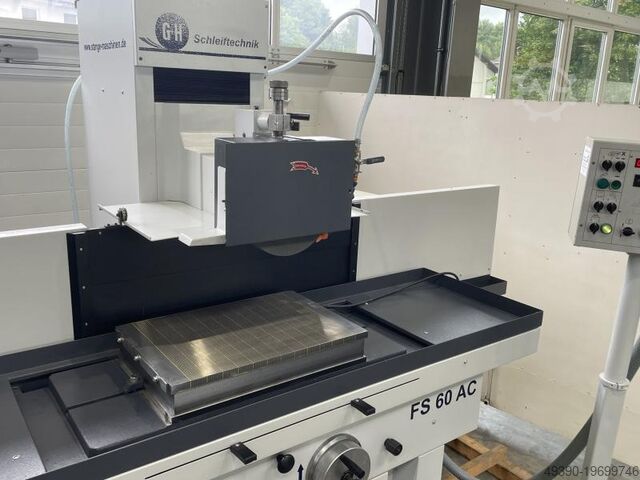

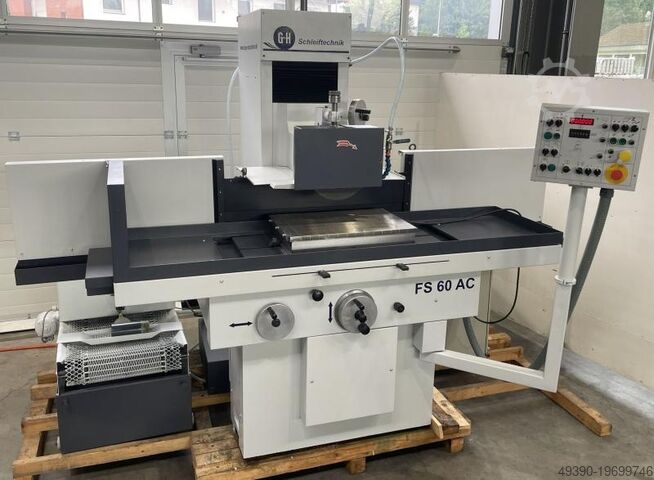

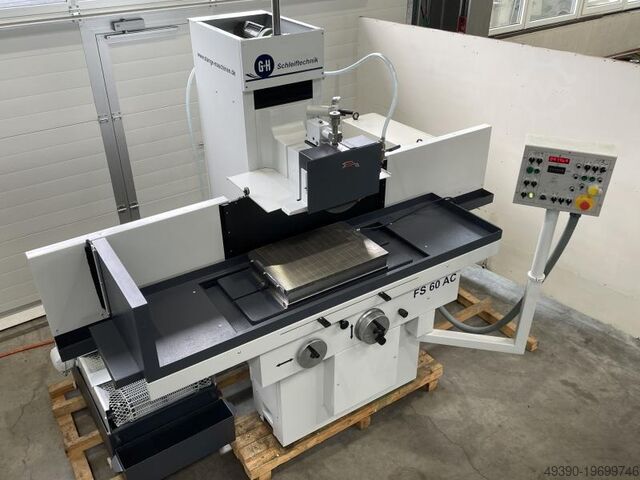

Condition: used, Workshop-overhauled Surface Grinding Machine GEIBEL & HOTZ Type FS 60 AC Machine no. 2012190398 Year of manufacture 1998 - 2025 Workshop overhauled by Stange Werkzeugmaschinen in 2025 Electro-magnetic chuck 600 x 400 mm Table clamping area 960/620 x 400 mm Table longitudinal travel max. 660 mm Grinding width 400 mm Cross travel with automatic feed max. 400 mm Cross travel manual adjustment max. 425 mm Distance spindle center to magnetic chuck max. 425 mm Table speed 2 - 28 m/min stepless Grinding wheel dimensions Ø 300 x 50 x 76 mm Manual vertical feed 1 division = 0.002 mm Manual cross feed 1 division = 0.01 mm Electrical connection 400 Volt, 50 Hz. - Electro-magnetic chuck GEIBEL & HOTZ, Type HPM 600 x 400, height 99 mm - Automatic depth infeed for surface and plunge grinding with digital actual value display - Depth infeed setting via decade switches - Cross feed for surface grinding motorized or manual via hand wheel - Hydraulic table longitudinal travel - Central lubrication for table longitudinal travel, Y and Z axis movements, and lead screws - Mounted grinding wheel Ø 300 mm (usable Ø 290 mm) - Separate electrical cabinet Gsdpfx Aasw Hhbcs Ijtt - Hydraulic unit integrated into machine base - Coolant system with paper band filter - Machine mounted on transport pallet for shipping Space requirements (L x W x H) 2850 x 2250 x 2500 mm Space requirements (L x W x H) 3000 x 2400 x 2500 mm Weight approx. 2 tons (complete) Very good condition – workshop overhauled by Stange Werkzeugmaschinen
